Good price online

products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Fiber Optic Passive Components
Created with Pixso. Low Insertion Loss 1x2 PLC Splitter with Steel Tube Package for FTTH Networks
Low Insertion Loss 1x2 PLC Splitter with Steel Tube Package for FTTH Networks
  • name
  • name
  • name
  • name
  • name

Low Insertion Loss 1x2 PLC Splitter with Steel Tube Package for FTTH Networks

Brand Name: GEZHI or OEM
Model Number: 1x2 special steel tube Type PLC splitter
MOQ: 1pc
Price: US$59-US$118
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Type:
PLC Splitter
Packaging Details:
Paper box
Supply Ability:
5000pcs per month
Highlight:

RoHS Fiber Optic Passive Components

,

Low Insertion 1x2 PLC Splitter

,

FTTH 1x2 PLC Splitter

Product Description
Low Insertion Fiber Optic Passive Components 1x2 PLC Splitter For FTTH
Low Insertion 1x2 Special Steel Tube Type PLC Splitter For FTTH

PLC splitter is based on planar lightwave circuit technology and precision aligning process. It can divide a single/dual optical input(s) into multiple optical outputs uniformly and is denoted 1xN or 2xN. PLC splitter is applied in FTTX deployments, PON networks, CATV links and optical signal distribution.

Key Features
  • Excellent mechanical performance with small size
  • High reliability
  • Low insertion loss and low polarization dependent loss
  • High channel counts
  • Excellent environmental stability and wide usage
Applications
  • FTTH, FTTB, FTTX Systems
  • LAN, WAN and Metro Networks
  • Analog/Digital Passive Optical Networks
  • CATV Networks
  • Test Equipment
  • Other applications in fiber optic systems
Technical Specifications
Types 1x2 1x4 1x8 1x16 1x32
Test wavelength 1310nm
Working wavelength 1260nm~1650nm
Interface model SC/UPC
Insertion loss (dB) (P/S level) 3.8/4.0 7.1/7.3 10.2/10.5 13.5/13.7 16.5/16.9
Loss uniformity (dB) 0.4 0.6 0.8 1.2 1.5
Return loss (dB) (P/S level) 55/50 55/50 55/50 55/50 55/50
Polarization dependent loss (dB) 0.2 0.2 0.2 0.25 0.3
Directionality (dB) 55 55 55 55 55
Wavelength dependent loss (dB) 0.3 0.3 0.3 0.5 0.5
Temperature stability (dB) 0.4 0.4 0.4 0.5 0.5
Additional Features
  • Good temperature stability
  • Low insertion loss, high return loss
  • Good interchangeability, good repeatability

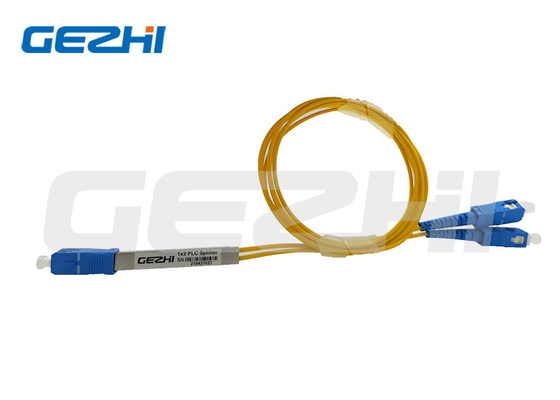

Low Insertion Loss 1x2 PLC Splitter with Steel Tube Package for FTTH Networks 0 Low Insertion Loss 1x2 PLC Splitter with Steel Tube Package for FTTH Networks 1
Our Services
  • Product consulting service
  • Cost-saving advice
  • Fast response speed to needs
  • Professional and complete reference documents
  • Safe and cheap transportation solutions
