Created with Pixso. Low Loss ABS Box PLC Splitter 1x16 PLC Splitter For Wireless LAN
Low Loss ABS Box PLC Splitter 1x16 PLC Splitter For Wireless LAN
  • name
  • name
  • name

Low Loss ABS Box PLC Splitter 1x16 PLC Splitter For Wireless LAN

Brand Name: GEZHI or OEM
Model Number: 1x16 ABS Box Fiber PLC Splitter
MOQ: 1pc
Price: Negotiable
Payment Terms: T/T, Western Union, T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Application:
GEPON
Type:
PLC Splitter
Use:
System Monitor
Fiber Connector:
LC/UPC, LC/APC, SC/UPC Etc.
Package:
ABS Box Module
Packaging Details:
Paper box
Highlight:

OEM ABS Box PLC Splitter

,

Low Loss 1x16 PLC Splitter

,

Wireless LAN 1x16 PLC Splitter

Product Description

Factory Price Low Loss 1x16 ABS Box Fiber PLC Splitter for Wireless Lan



PRODUCT DESCRIPTION

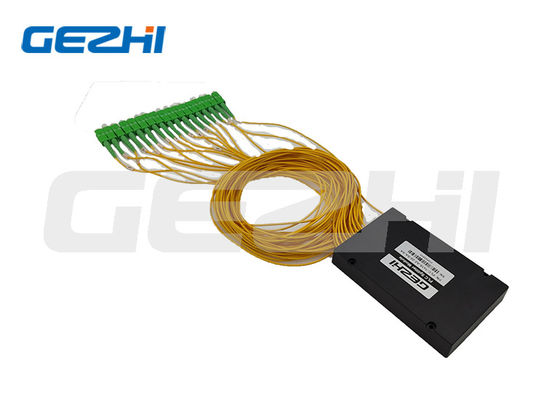

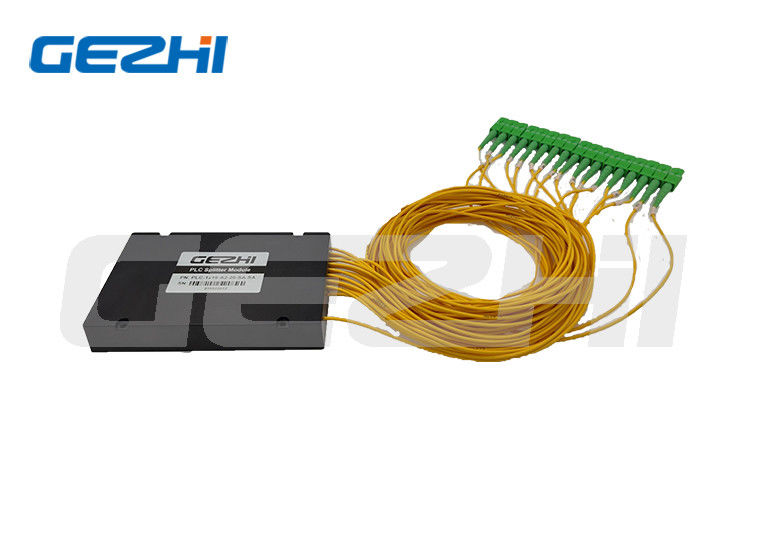

1x16 ABS Box Fiber PLC Splitter
Descriptions:
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. Gezhi Photonics provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.


Applications:

  1. Passive optical networks (PON)
  2. FTTx (FTTB, FTTH, FTTC)
  3. CATV systems
  4. Test equipments
  5. Local area networks (LAN)

Features:

  1. FTTH Network
  2. Optical Signal Distribution
  3. Passive Optical Network(PON)
  4. Measuring System and Laser System
  5. CATV System
  6. Data Communications LAN
  7. FTTX Deployment
  8. DWDM and CWDM System

Specifications:





Brabd GEZHI or OEM
Fiber length custom length
Connector Type Custom specified
Optical Fiber Type Corning SMF-28e fiber, G657A1 or as customized
Directivity (dB) Min * 55
Return Loss (dB) Min * 55 (50)
Power Handling (mW) 300
Operating Wavelength (nm) 1260 ~ 1650
Operating Temperature(°C) -40~ +85
Storage Temperature(°C) -40 ~ +85
Port Configuration 1x2 1x4 1x8 1x16 1x32 1x64
Insertion Loss(dB) Typical 3.6 7.1 10.2 13.5 16.5 20.5
Insertion Loss (dB) Max 4.0 7.3 10.5 13.7 16.9 21.0
Loss Uniformity (dB) 0.6 0.6 0.8 1.2 1.5 2
PDL(dB) 0.2 0.2 0.2 0.25 0.3 0.35
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temp. Dependent Loss (-40~85 ) (dB) 0.4 0.4 0.4 0.5 0.5 0.5
Port Configuration 2X2 2X4 2X8 2X16 2X32 2X64
Insertion Loss(dB) Typical 3.8 7.4 10.8 14.2 17 21
Insertion Loss (dB) Max 4.2 7.8 11.2 14.6 17.5 21.5
Loss Uniformity (dB) 1 1.4 1.5 2 2.5 2.5
PDL (dB) 0.2 0.2 0.4 0.4 0.4 0.5
Wavelength Dependent Loss(dB) 0.8 0.8 0.8 0.8 0.8 1
Temp. Dependent Loss(-40~+85°C) 0.5 0.5 0.5 0.8 0.8 1

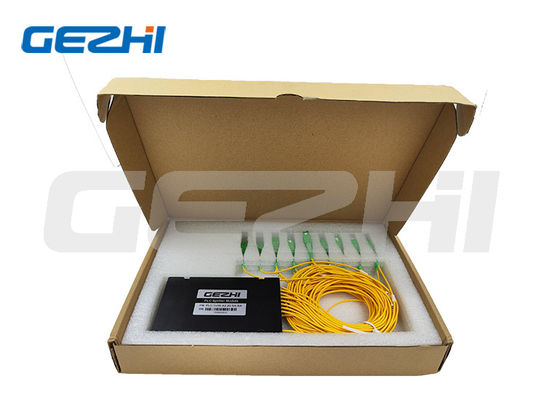

Packing:

Low Loss ABS Box PLC Splitter 1x16 PLC Splitter For Wireless LAN 0
