| Brand Name: | GEZHI or OEM |
| Model Number: | 1*64 Optical Fiber PLC Splitter |
| MOQ: | 1pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |
Good price Factory Supplier OEM 1*64 G657A1 SC/APC Optical Fiber PLC Splitter Module
Description
Planar Lightwave Circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.
With the features of small size, wide range of operating wavelength, stable reliability and good uniformity, It’s widely used in PON,ODN,FTTX point to connect between termination device and central office to achieve the signal splitter.
Applications:
Value Added Modules
Telecommunication Networks
Passive Optical Networks
FTT(X) Systems
LAN, WAN & Metro Networks
CATV
Features:
1x4, 1x8, 1x16, 1x32 and 1x64 configurations available
2x4, 2x8, 2x16, 2x32 configurations available
High uniformity
Low insertion loss, PDL, Back Reflection
Telcordia GR-1209 & GR-1221 qualified
Compact package
Optical Performances:
| Parameter | Sepcification | ||||||||||
| Operating Wavelength(nm) | 1260~1620 | ||||||||||
| Type | 1*2 | 1*4 | 1*8 | 1*16 | 2*4 | 2*8 | 2*16 | 1*32 | 2*32 | 1*64 | 2*64 |
| Insertion Loss(dB) Max. | <4.0 | <7.3 | <10.8 | <13.8 | <7.6 | <11.2 | <14.5 | <17.2 | <18.2 | <20.5 | <21 |
| Unifromity(dB) Max. | <0.6 | <0.8 | <1.0 | <1.5 | <1.0 | <1.5 | <2.0 | <2.0 | <2.5 | <2.5 | <3.0 |
| PDL(dB) Max. | <0.2 | <0.2 | <0.2 | <0.3 | <0.3 | <0.3 | <0.4 | <0.3 | <0.4 | <0.3 | <0.3 |
| Directivity(dB) Min. | 55 | ||||||||||
| Return Loss(dB) Min. | 55(50) | ||||||||||
| Opterating Temperature(°C) | -40~+85 | ||||||||||
| Storage Temperature(°C) | -40~+85 | ||||||||||
| Fiber Length | 1m or custom length | ||||||||||
| Fiber Type | Corning SM-28e fiber | ||||||||||
| Connector Type | Custom specified | ||||||||||

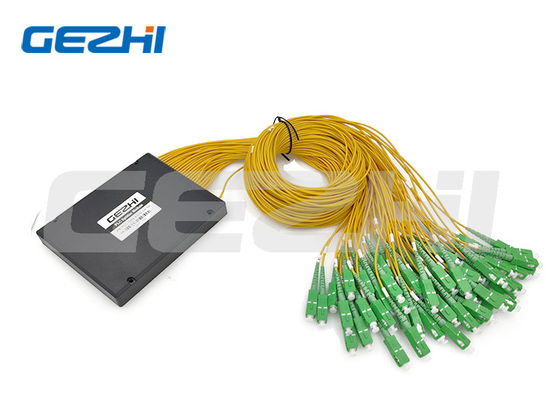

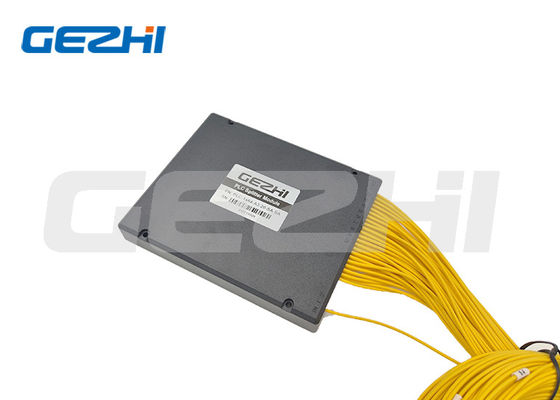

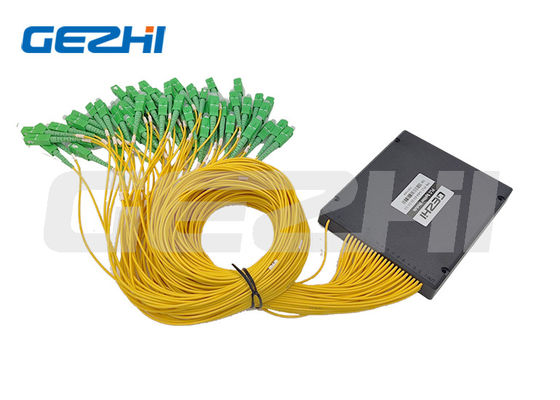

1*64 Optical Fiber PLC Splitter ABS Module Box Type
1*64 Optical Fiber PLC Splitter ABS Module Box Type
Q1:Can I have a sample order? What is your MOQ for PLC Splitter Module?
|
|
