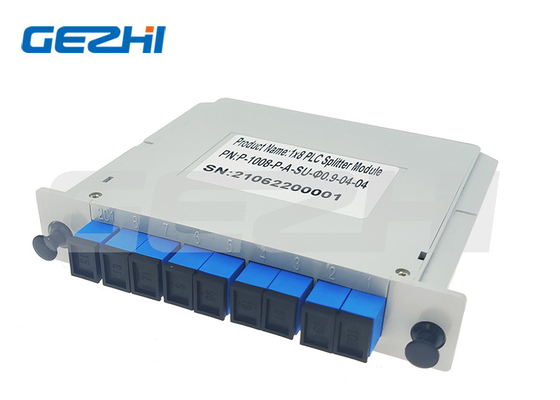

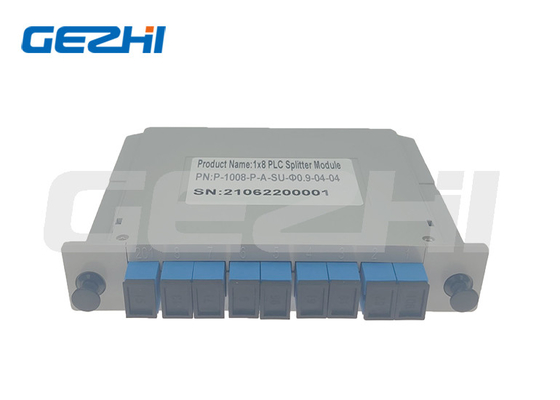

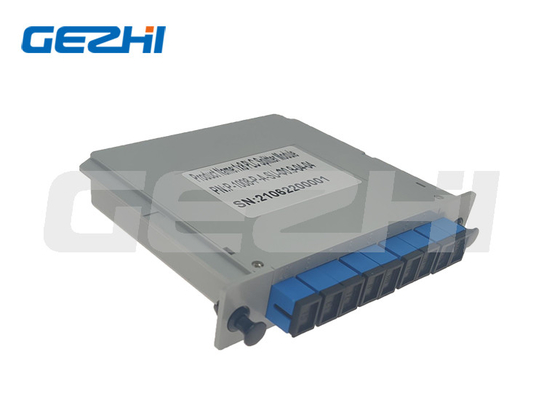

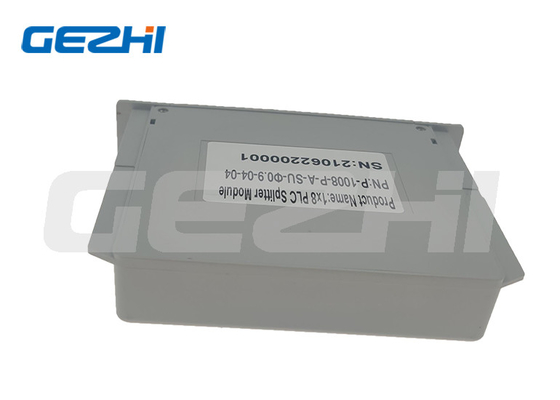

Customized 1x8 PLC Splitter with SC UPC Connectors for GEPON Networks

Name: Customized 1x8 PLC Splitter with SC UPC Connectors for GEPON Networks
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: 1x8 Cassette Optical splitter
Price: 88.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	1x8 Cassette Optical splitter
MOQ:	1pc
Price:	US$59-US$118
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Port Configuration:

1x8

Wavelength Range:

1260-1650nm

Insertion Loss:

10.2/10.5 DB

Loss Uniformity:

0.8 DB

Return Loss:

55/50 DB

Operating Temperature:

-40℃ To 85℃

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

1x8 Cassette Optical Fiber Splitter

GEPON Optical Fiber Splitter

GEPON 1x8 PLC Splitter

Product Description

Customized PLC Beam splitter 1x8 Optical splitter Optical fiber splitter SC UPC Connectors

Description:

Optical fiber splitter is a type of optical power management device that is fabricated using silica optical waveguide technology.

It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.

Feature:

Adopt high strength stainless steel, pass salt spray test
Low PDL Compact Design
Ferrule core is less than 0.5um
Adopt 100% new raw material, ROHS compliance
Low Insertion loss
Good channel-to-channel uniformity
Wide Operating Wavelength: from 1260nm to 1650nm
Wide Operating Temperature: from -40℃ to 85℃

Application:

Fiber to the point (FTTX)
Fiber to the home (FTTH)
Test equipment
Passive optical networks(PON, GEPON)
Cable television (CATV)
Local area networks (LAN)

Specification:

Parameters	1×2	1×4	1×8	1×16	1×32	1×64
Operating Wavelength (nm)	1260～1650
Fiber Type	G657A or customer specified
Insertion Loss (dB)(P/S Grade)	3.8/4.0	7.1/7.3	10.2/10.5	13.5/13.7	16.5/16.9	20.5/21.0
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5	2.0
Return Loss (dB) (P/S Grade)	55/50	55/50	55/50	55/50	55/50	55/50
Polarization Dependent Loss(dB)	0.2	0.2	0.2	0.25	0.3	0.35
Directivity (dB)	55	55	55	55	55	55
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.5	0.5	0.5
Temperature Stability(-40～85 ℃)(dB)	0.4	0.4	0.4	0.5	0.5	0.5
Operating Temperature (℃)	-40～85
Storage Temperature (℃)	-40～85
Package	Steel Tube or ABS

1x8 Cassette Optical splitter

Customized 1x8 PLC Splitter with SC UPC Connectors for GEPON Networks 0
