Low Insertion Loss 4 Port Fibre Optic Circulator for CATV System with High Isolation

Name: Low Insertion Loss 4 Port Fibre Optic Circulator for CATV System with High Isolation
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: 4-port optical circulator
Price: 88.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	4-port optical circulator
MOQ:	1pc
Price:	US$59-US$118
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Ports:

4 Ports

Connector:

SC/FC/LC/ST

Wavelength:

1310/1550nm

Insertion Loss:

≤1.0 DB

Isolation:

≥50 DB

Operating Temperature:

0 To +70 ℃

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

1m Fibre Optic Circulator

Four Port Fibre Optic Circulator

CATV System Fiber Optic Circulator

Product Description

Low insertion loss Fibre Optic Circulator Four Port for CATV system

Product Description

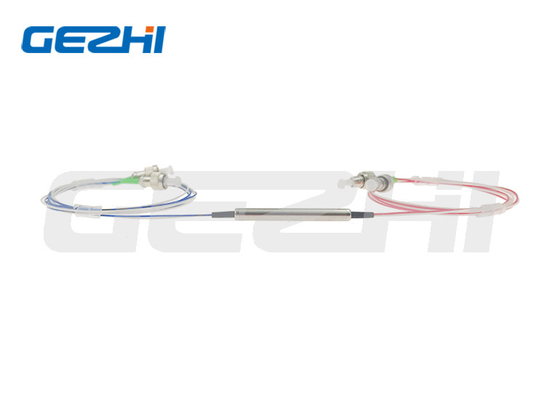

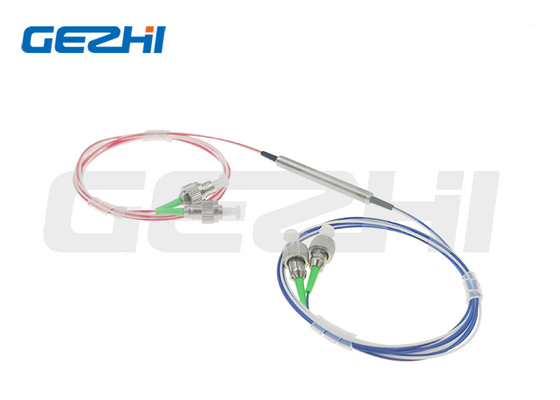

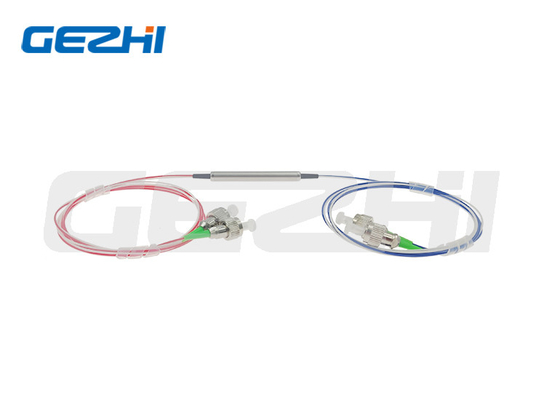

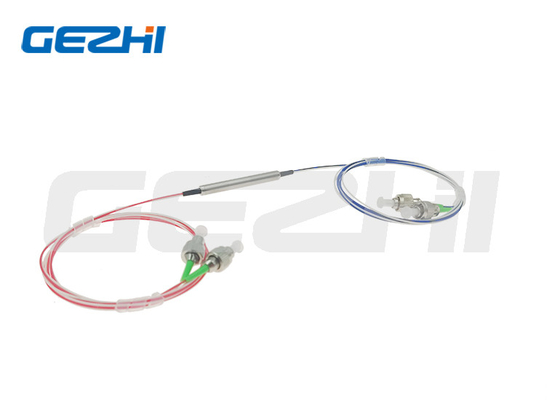

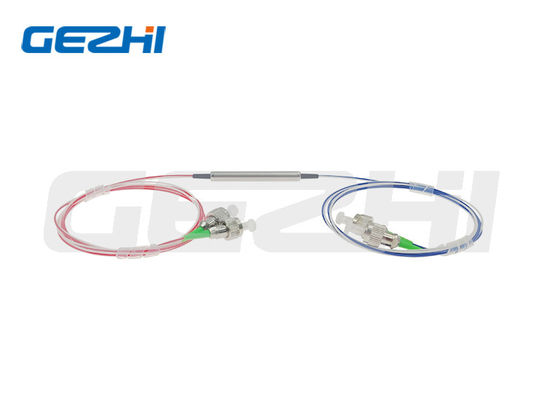

4 ports optical circulator

Gezhi's 4 ports optical circulator is a compact high performance lightwave component that transmits the incoming signal from port 1 to port 2, the 2nd signal from port 2 to port 3 and the 3 rd signal from port 3 to port 4. The component provides high isolation, low insertion loss, high extinction ratio, and excellent environment stability.

Applications

CATV system
Telecommunication network system
Metro/Access networks
Optical amplifier
Wavelength add / drop
Dispersion compensation
Bi-Direction communication

Features

Low insertion loss

Wide band high isolation

Low PDL

Compact in-line package

High stability and reliability

Epoxy free optical path

Specification

Brand Name		Gezhi or OEM
Operating wavelength Range	nm	1310+/-30 or 1550+/-30	1525~1610(C+L)
Insertion loss (1-2, 2-3 @λOp, TOp, all states of polarization)	dB	≤1.0	≤1.2
Polarization Dependent Loss (PDL)	dB	≤0.2	≤0.25
Polarization Mode Dispersion (PMD)	dB	≤0.10	≤0.10
Isolation (2-1, 3-2 @λOp, TOp, all states of polarization)	dB	≥50	≥30
Directivity	dB	≥50
Return Loss	dB	≥50
Power handling(CW)	mW	≤500
Pigtail length	m	1.0±0.1
Port color	---	Port 1: black, Port 2 and 3: clear (natural)
Tensile Load	N	≤5
Operating Temperature	℃	0 to +70
Storage Temperature	℃	-40 to +85

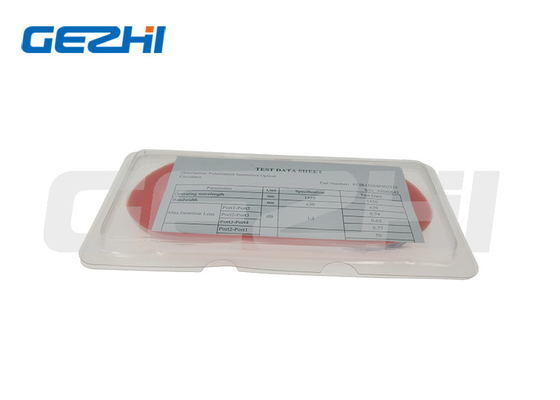

Packing

According to Stardard Export Packing.
Low Insertion Loss 4 Port Fibre Optic Circulator for CATV System with High Isolation 0
