Product Details:
Payment & Shipping Terms:
|
| Split Way: | 1 Way Input & 2 Way Output | Wavelength: | 1310nm/1550nm |
|---|---|---|---|
| Warranty: | 3years | Application: | FTTH |
| Package Type: | LGX Box | Connector Type: | SC/APC |
| Highlight: | LGX Box Fiber Optical Splitter,SC APC 1x2 PLC Splitter,FTTA 1x2 PLC Splitter |
||

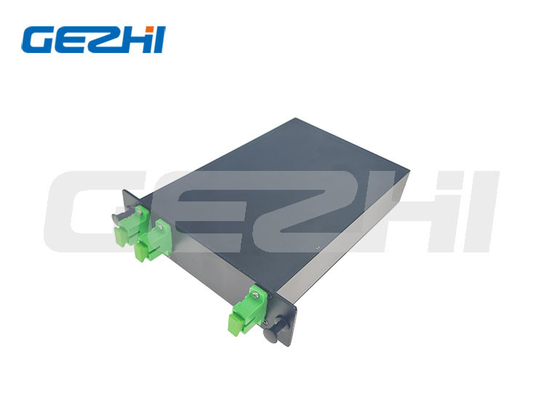

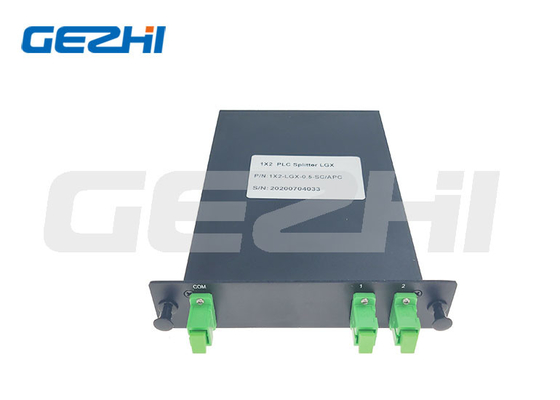

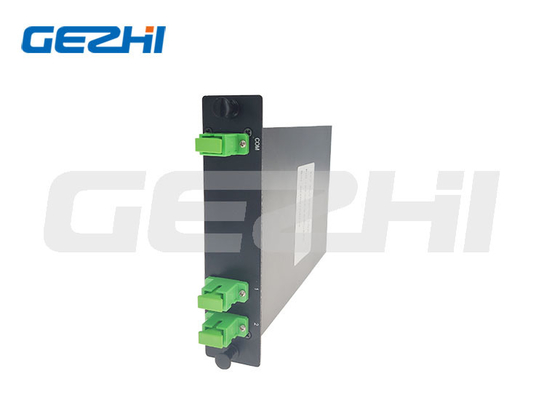

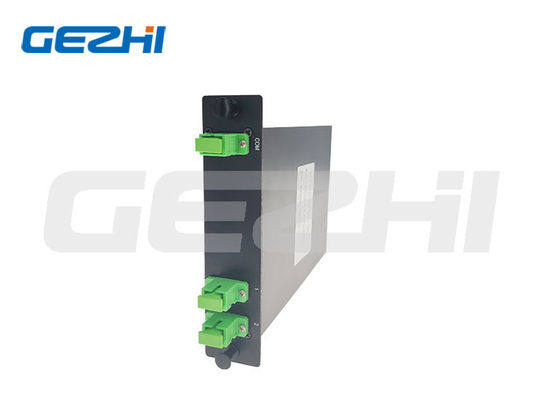

1x2 LGX Box Fiber Optical Splitter 1*2 SC/APC Connector For FTTH FTTA Distribution Box
Description
- Planar lightwave circuit splitter (PLC Splitter) is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity.
- It widely used in PON(EPON/GPON) networks to realize optical signal power splitting.
- Fiber optic Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.
- The standard LGX mental box housing provides a plug-and-play method for integration in the network, which eliminates any risks during installation.
- It eliminates the need for splicing machines on the field and there is no need for skilled personnel for deployement.
- LGX cassttle module fiber optic plc splitte is also called 1*64 LGX module optical fiber plc splitter, plc fiber optic
Applications
- Low insertion loss.
- Low Polarization Dependent Loss.
- Excellent Environmental Stability.
- Excellent Mechanical Stability.
- Low excess loss & High performance
Features
- Fiber to The Point (FTTX).
- Fiber to The Home (FTTH).
- Passive Optical Networks (PON).
- Gigabit Passive Optical Networks (GPON).
- Local Area Networks (LAN).
- Cable Television (CATV).
- Test Equipment.

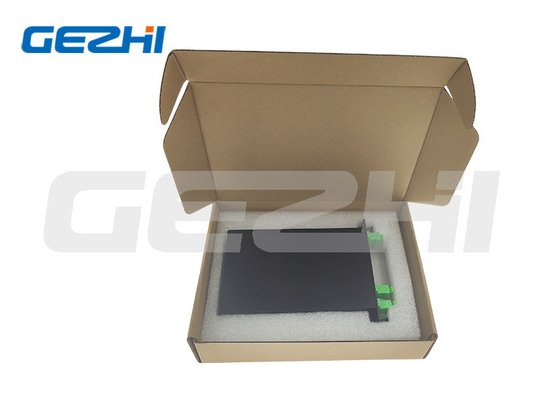

Packing
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.
Specifications
| Fiber length | 1m or custom length | |||||
| Connector Type | Custom specified | |||||
| Optical Fiber Type | SMF-28e fiber, G657A1 or as customized | |||||
| Directivity (dB) Min * | 55 | |||||
| Return Loss (dB) Min * | 55 (50) | |||||
| Power Handling (mW) | 300 | |||||
| Operating Wavelength (nm) | 1260 ~ 1650 | |||||
| Operating Temperature(°C) | -40~ +85 | |||||
| Storage Temperature(°C) | -40 ~ +85 | |||||
| Port Configuration | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 |
| Insertion Loss(dB) Typical | 3.6 | 7.1 | 10.2 | 13.5 | 16.5 | 20.5 |
| Insertion Loss (dB) Max | 4.0 | 7.3 | 10.5 | 13.7 | 16.9 | 21.0 |
| Loss Uniformity (dB) | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | 2 |
| PDL(dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 |
| Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
| Temp. Dependent Loss (-40~85 ) (dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
| Port Configuration | 2X2 | 2X4 | 2X8 | 2X16 | 2X32 | 2X64 |
| Insertion Loss(dB) Typical | 3.8 | 7.4 | 10.8 | 14.2 | 17 | 21 |
| Insertion Loss (dB) Max | 4.2 | 7.8 | 11.2 | 14.6 | 17.5 | 21.5 |
| Loss Uniformity (dB) | 1 | 1.4 | 1.5 | 2 | 2.5 | 2.5 |
| PDL (dB) | 0.2 | 0.2 | 0.4 | 0.4 | 0.4 | 0.5 |
| Wavelength Dependent Loss(dB) | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 1 |
| Temp. Dependent Loss(-40~+85°C) | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 1 |
OEM/ODM Service
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.
