Created with Pixso. Single Mode 1x2 SC/UPC Fiber Optic Splitter for CATV and FTTX Systems

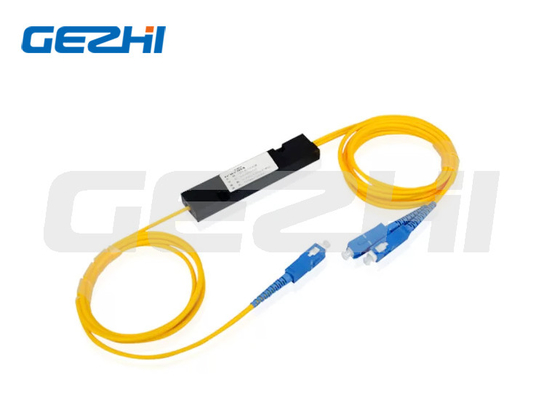

Single Mode 1x2 SC/UPC Fiber Optic Splitter for CATV and FTTX Systems
  • name
  • name

Single Mode 1x2 SC/UPC Fiber Optic Splitter for CATV and FTTX Systems

Brand Name: GEZHI or OEM
Model Number: 1 X 2 Fiber Optic Splitter
MOQ: 1pc
Price: US$59-US$118
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Fiber Type:
SMF-28e Or Customer Specified
Packaging Details:
Paper box
Supply Ability:
5000pcs per month
Highlight:

Single Mode Fiber Optic Passive Components

,

CATV Fiber Optic Passive Components

,

Single Mode Fiber Optic Splitter

Product Description
Single Mode Fiber Optic Passive Components CATV FTTX System Application
Product Overview

Single Mode 1 X 2 Fiber Optic Splitter SC / UPC PLC CATV / FTTX System Application

The fiber optic splitter is one of the most important passive devices in optical fiber links. Waveguides are fabricated using lithography onto a silica glass substrate, which allows for routing specific percentages of light. As a result, PLC splitters offer accurate and even splits with minimal loss in an efficient package. It is an optical fiber tandem device with many input and output terminals, especially applicable to passive optical networks (EPON, GPON, BPON, FTTX, FTTH etc.) to connect the MDF and terminal equipment and to branch optical signals.

Applications
  • CATV Systems
  • Active Device Termination
  • Telecommunication Networks
  • Metro Networks
  • Local Area Networks
  • Data Processing Networks
  • Test Equipment
  • Premise Installation
  • Wide Area Networks
Key Features
  • PC, UPC, APC polishing available
  • High return loss
  • Low insertion loss
  • High reliability and stability
  • Available for singlemode/multimode and simplex/duplex
  • 0.9mm, 2.0mm, 3.0mm diameter cable available
Technical Parameters
Parameters 1×2 1×4 1×8 1×16 1×32 1×64
Operating Wavelength (nm) 1260~1650
Fiber Type SMF-28e or customer specified
Insertion Loss (dB)(S/P Grade) 4.0/3.8 7.3/7.0 10.5/10.2 13.7/13.5 16.9/16.5 21.0/20.5
Loss Uniformity (dB) 0.4 0.6 0.8 1.2 1.5 2.5
Return Loss (dB) (S/P Grade) 50/55 50/55 50/55 50/55 50/55 50/55
Polarization Dependent Loss (dB) 0.2 0.2 0.3 0.3 0.3 0.4
Directivity (dB) 55 55 55 55 55 55
Wavelength Dependent Loss (dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temperature Stability (-40~85°C)(dB) 0.5 0.5 0.5 0.5 0.5 0.5
Operating Temperature (°C) -40~85
Storage Temperature (°C) -40~85
Packaging Dimension (mm) (L×W×H) 40×4×4 40×4×4 40×4×4 40×4×4 50×7×4 60×12×4
Ordering Information
PLC Port Input Pigtail Style Input Connector Output Pigtail Style Fiber Length Output Connector Package Type
0102=1x2
0104=1x4
0108=1x8
0116=1x16
0132=1x32
0164=1x64
0204=2x4
0208=2x8
0216=2x16
0232=2x32
0264=2x64		 0=bare fiber
1=900um Loose tube
2=900um Jacket
3=2.0mm cable
4=3.0mm cable		 0=none
1=SC/PC
2=SC/APC
3=FC/PC
4=FC/APC
5=ST
6=LC
7=LC/APC
S=Special		 0=bare fiber
1=900um Loose tube
2=900um Jacket
3=2.0mm cable
4=3.0mm cable		 0=0.5m
1=1m
2=1.5m
3=2m
S=special		 0=none
1=SC/PC
2=SC/APC
3=FC/PC
4=FC/APC
5=ST/PC
6=LC/PC
7=LC/APC
S=Special		 A=4X4X40
B=4X7X50
C=4X12X60
D=4X7X60
E=6X20X80
F=100X80X10
G=120X80X18
H=140X115X18
I=19"1U Rack
S=Special
Note: S=Special indicates custom specifications available upon request
