Product Details:
Payment & Shipping Terms:
|
| Adapter Position: | Lower Right Side | Layers: | Double Layer |
|---|---|---|---|
| Usage Scenarios: | Wall Mount Installation / Desktop Installation / Bottom Box Installation | Heat Shrink Tube Slots: | 4 Slots |
| Connection Method: | Adapter Connection /Cable Enters Directly | Fiber Storage Position: | Upper Layer + Lower Layer |
| Fusion Splice Position: | Upper Layer | Locking Method: | Snap Lock |
| High Light: | Splicing Fiber Optic Termination Box,Flame Retardant Fiber Optic Termination Box,ABS PC Fiber Optic Box |
||

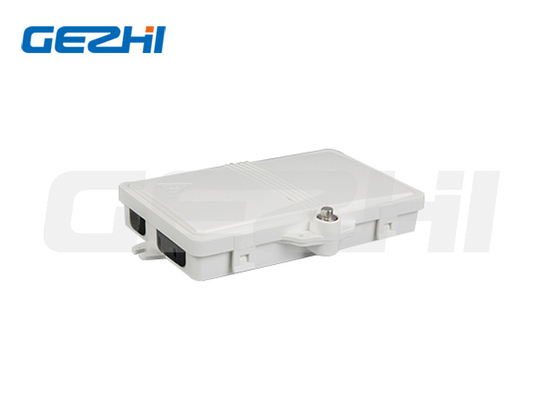

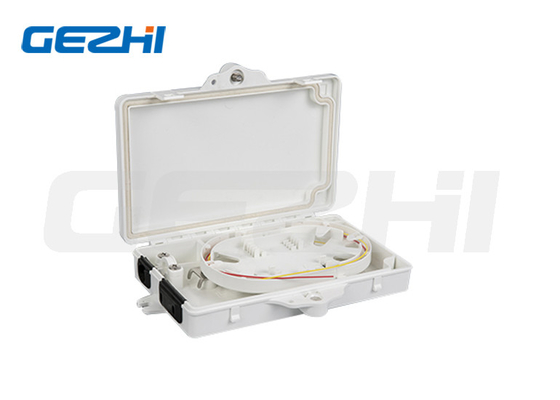

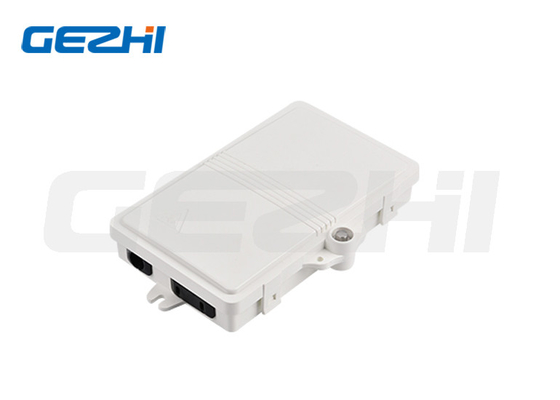

4 Fiber Splicing Fiber Optic Termination Box 2 Core ABS PC Plastic Terminal Box Flame Retardant
Product Description
GEZHI-02-C2 Plastic Terminal Box is a type of terminal point specifically designed for FTTX applications, used for connecting horizontal optical cables and fiber jumpers. This terminal box offers a convenient solution for easy termination, storage, and optical patch cord connecting.
Features
1.Made of flame retardant materials: Made of PC and ABS, different flame retardant grades for option
2.Easy to open or buckle the top cover: The top cover is fixed on botton by buckle, easy to open
3.Various termination methods: Supporting fusion splicing and fast connector
4.Adapter capacity: 2*SC simplex or 2* LC duplex adapter can be installed
5.Compact structure: Double-storey design brings enough space for pigtails and inlet cables organized in their own channels, effectively to avoid damage to the fibers
6.Cable entry: 2 cable entry ports on the front. One spare entry port on the rear for extra need
Applications
1.CATV.
2.Telephone and rural communication network systems.
3.Data and image transmission systems.
Specification
| Adapter Type | SC Simplex / LC Duplex |
| Working Temperature | -40℃~+65℃ |
| Protection Levels | IP65 |
| Optional Accessories | Adapters, Pigtails, Heat Shrink, Mini Splitter |
| Box Opening Angle | 180° |
| Application | Indoor Wall Hanging, Outdoor Wall Hanging |
| Product Feature | Water - proof, UV - proof, Laser - proof |
