Product Details:
Payment & Shipping Terms:
|
| Adapter Capacity: | 4pcs | Material: | ABS |
|---|---|---|---|
| Dimensions(H*W*D): | 100mm*80mm*30mm | Weight: | 75g |
| Color: | White | Adapter Type: | SC Simplex / LC Duplex |
| Fiber Mode: | SM/MM | Working Temperature: | -40℃~+65℃ |
| ROHS Compliancy Status: | Compliant | Application: | FTTX Access And Tele-communications Network |
| High Light: | waterproof ftth fiber optic terminal box,4core ftth fiber optic terminal box,ftth wall mount fiber termination box |
||

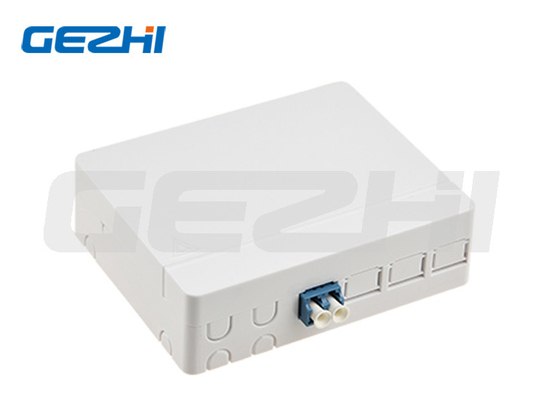

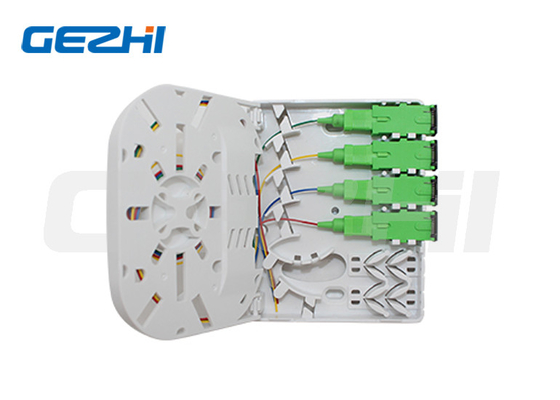

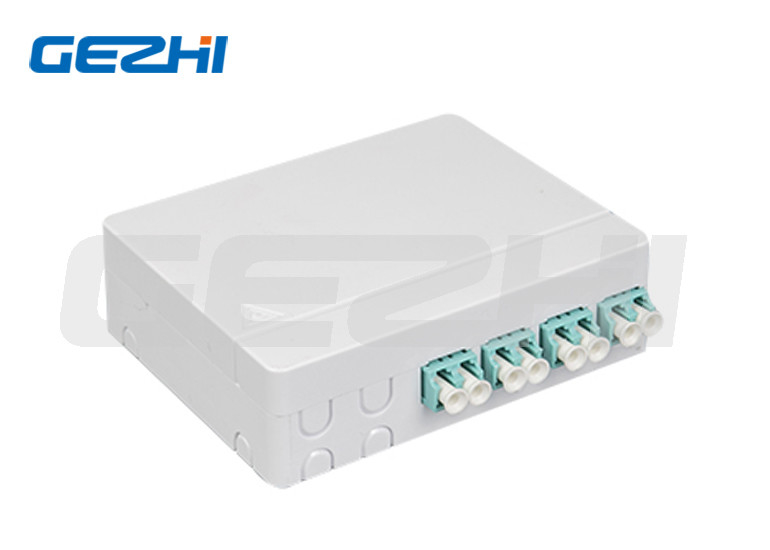

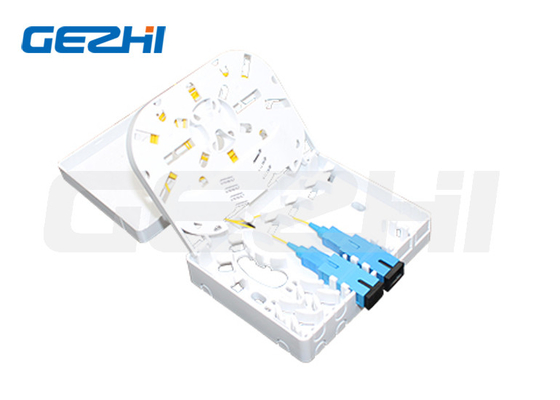

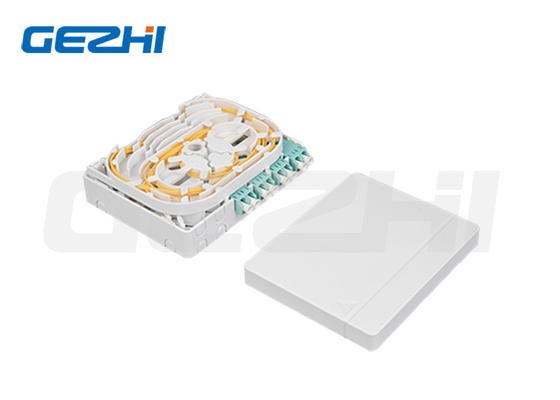

Waterproof ftth fiber optic terminal box 4 Core Wall Mount Fiber Termination Box
Description
Optical fiber distribution box of FTTH Optical network client distribution equipment, mainly for optical transmission terminal into molten end, light, output wiring and other functions, can effectively the cable for terminating, protection and management, optical network transmission equipment necessary.
Product Features
1. The wall outlet termination box can be realized: outdoor optical cable fixing, leather line optical cable fixing,adapter fixing, and fast field connector fixing. Pull-off force is greater than 50N, fixed and reliable.
2. The wall outlet termination box can be realized: single-core sheathed optical cable access to single-port outputinside and outside the wall, indoor and outdoor dual-core sheathed optical cable access to dual-port output, outdoor optical cable access to single-port output, outdoor optical cable access to multi-pigtail output The outdoor optical cable is connected to the multi-skin line output, and is used in multiple occasions and multiple demand environments.
3. The wall outlet termination box is easy to operate and has low construction intensity.
4. The wall outlet termination box is designed with a large arc shape to ensure that the fiber optic cable placed in it will not be damaged when subjected to external forces, affecting the quality of communication.
5. For home or work area (FTTD) fiber interface.
6. Connecting type: SC, LC with common model adapters.
7. Using high-quality ABS material, has a certain fire resistance.
8. With dustproof device to prevent dust from entering.
9. Scope of application 3.1 × 2.0mm drop cable or patch cable.
Application
1, for the optical fiber splice, branch
2, can flip, disk can be superimposed, expand capacity, installation, use andconvenient
3. 6 ports for one unit
4. Fiber pigtail management
5. Easy for installation and removement
6. It can be put into the optic distribution box
Parameters
| Working Temperature | - 40 degrees ~+60 degrees C |
| Relative humidity | 93% (at+40 degrees C) |
| Atmospheric pressure | 62kpa~101kpa (approximate elevation of 0~5000 meters) |
| Insertion loss | Less than 0.35dB |
| Reversal loss | Not less than 50dB |
| Plug endurance performance | >1000 times |
| Insulation resistance | 1000M/50v(DC) |
| Pressure | > 3000V (DC) /1min no breakdown, no fly arc. |
| Material | ABS/PC |
| Capacity | 12core/piece,24core/piece |
| Cover | Transparent cover or not. |
| Color | Grey,Black,White |
