| Model Number: | 96 ODF | Use: | FTTH FTTB FTTX Network |
|---|---|---|---|
| Connector Type: | Fiber Optic Patch Panel | Relative Humidity: | ≤ 85% (at 30 ° C) |
| Packing Size: | 48 * 22 * 4.2 | Ambient Temperature: | -25 ° C ~ +45 ° C |
| High Light: | 96 core optical odf,sc / apc optical odf |
||

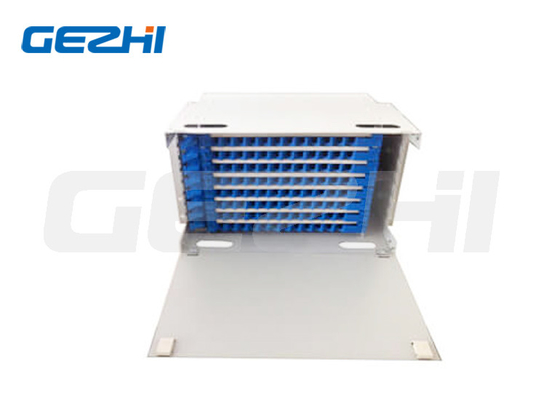

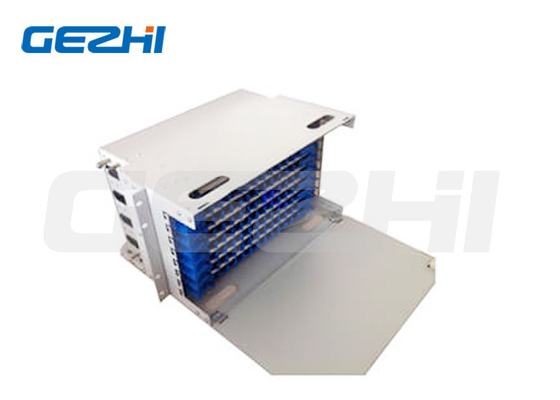

Optical Fiber Distribution Frame ODF 96 Core SC/APC Terminal Box Patch Panel
Product Description
Generally, the ODF unit box is a necessary part of the indoor optical distribution frame. 96 cores fusion splicing and distribution module plays the main role and its function is splicing, fiber storage and protection. A completed ODF unit will be with adapter, pigtail and accessories like splice protection sleeve, nylon tie, snake like tube, screw.
Products specification
Capacity: 96 fibers
Dimensions: 482*250*225mm
Material:Cold Reduced Electrolytic Tinplate.
Body: 1.0mm, front plate 1.5mm
Features
Standard size, light weight and reasonable structure
Splice tray inside changeable
Can be used in 19'standard distribution frame
Suitable for ribbon and single fiber
Various panel plate to fit different adapter interface
Front mark on the plate is easy for identification and operation
24C, 36C, 48C, 72C optional, with or without fiber optic pigtails and adapters
Easy for management and operation
Application
Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN
CATV
