Fiber Optic PLC Splitter 1x32 Mini SC UPC

Fiber Optic Passive Components
January 19, 2026
Category Connection: Fiber Optic Passive Components
Chat Now Contact Us
Tags:
#1x8 Coarse WDM #Bidirectional CWDM #1x3 Passive CWDM
Brief: Wondering how the Fiber Optic PLC Splitter 1x32 Mini SC UPC performs in real-world applications? This video provides a detailed walkthrough of its compact design and operational capabilities, demonstrating how it efficiently manages optical signal power distribution in PON networks. You'll see its key features in action and learn why it meets stringent industry standards like GR-1209 and GR-1221.
Related Product Features:
  • Low insertion loss and polarization-dependent loss for efficient signal transmission.
  • High return loss and directivity ensure minimal signal reflection and interference.
  • Uniform power splitting across all 32 channels for consistent performance.
  • Compact mini-type design with dimensions of 80x20x6mm for space-saving installations.
  • Wide operating wavelength range from 1260nm to 1650nm supports various applications.
  • Excellent environmental and mechanical stability for reliable operation in diverse conditions.
  • Qualified under Telcordia GR-1221 and GR-1209 standards for assured quality and reliability.
  • Customizable fiber type, typically G657A1, to meet specific project requirements.
FAQs:
  • What are the key specifications of the PLC Splitter SC/UPC 1x32 Mini Type?
    Key specifications include an operating wavelength of 1260nm-1650nm, maximum insertion loss of 16.5dB (P-grade) or 16.9dB (S-grade) for the 1x32 configuration, loss uniformity of 1.5dB max, polarization-dependent loss of 0.3dB max, and a compact dimension of 80x20x6mm. It uses G657A1 fiber or customer-specified fiber and meets GR-1221 and GR-1209 standards.
  • How does the PLC splitter ensure reliability in different environmental conditions?
    The splitter features excellent environmental and mechanical stability, with a wide operating temperature range from -40°C to 85°C and maximum temperature stability of 0.8dB for the 1x32 model. Its robust construction and adherence to Telcordia GR-1221 and GR-1209 standards guarantee high reliability and consistent performance in varied conditions.
  • Can the fiber type be customized for specific applications?
    Yes, the PLC Splitter SC/UPC 1x32 Mini Type typically uses G657A1 fiber but can be customized with customer-specified fiber types to meet unique application needs, ensuring flexibility and compatibility with different network setups.
Related Videos

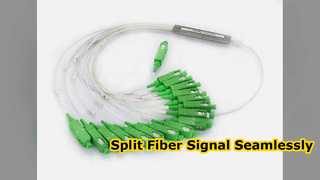

Fiber Optic Splitter FTTH SC APC 1x2 00:09

Fiber Optic Splitter FTTH SC APC 1x2
Fiber Optic Passive Components
January 19, 2026

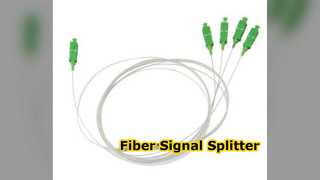

1x4 PLC Splitter SC APC Fiber Optic 00:06

1x4 PLC Splitter SC APC Fiber Optic
Fiber Optic Passive Components
January 19, 2026

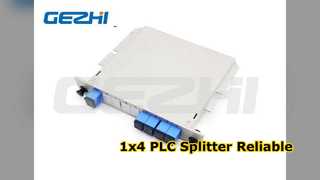

SC UPC 1x4 PLC Splitter Fiber Optic Reliable 00:09

SC UPC 1x4 PLC Splitter Fiber Optic Reliable
Fiber Optic Passive Components
January 19, 2026

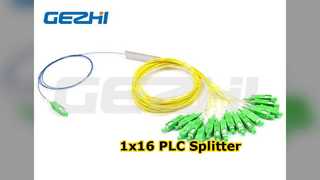

1x16 PLC Fiber Splitter Faster Connectivity 00:09

1x16 PLC Fiber Splitter Faster Connectivity
Patch Cable Series
January 19, 2026

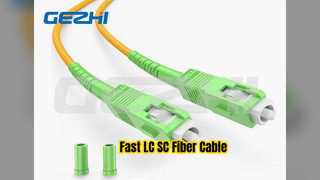

LC SC Fiber Cable Singlemode Duplex 00:09

LC SC Fiber Cable Singlemode Duplex
Patch Cable Series
January 19, 2026

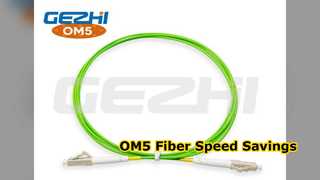

OM5 Fiber Patch Cord Duplex LC SC FC ST 00:06

OM5 Fiber Patch Cord Duplex LC SC FC ST
Patch Cable Series
January 19, 2026

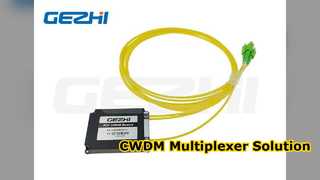

CWDM Multiplexer 0nm CH SC APC 00:09

CWDM Multiplexer 0nm CH SC APC
CWDM Mux Demux
January 19, 2026

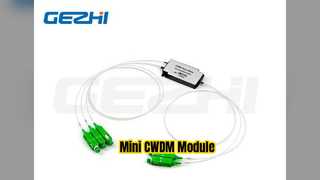

Mini CWDM Module LC APC Fiber Optic 00:09

Mini CWDM Module LC APC Fiber Optic
Compact CWDM Module
January 19, 2026

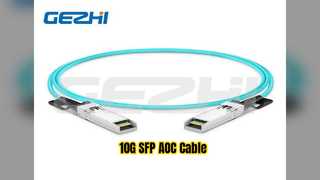

10G SFP+ AOC Cable 1M Direct Attach 00:12
