1x48 CH Athermal Arrayed Waveguide Grating

Name: 1x48 CH Athermal Arrayed Waveguide Grating
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: 48CH AAWG
Price: 98.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	48CH AAWG
MOQ:	1pc
Price:	Negotiable
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS ,ISO9001

Product Name:

AWG DWDM

Channel:

48CH

Wavelength:

C13 To C60

Connector:

LC/UPC

Fiber:

Single Fiber

Application:

Metro And Long Haul Net Works

Packaging Details:

Paper box

Supply Ability:

100000Channel per month

Highlight:

1x48 AWG DWDM

100Ghz AAWG

48CH AAWG

Product Description

100Ghz 1x48 Athermal Arrayed-waveguide grating DWDM module C13 to C60 wavelength

GEZHI 1x48 Athermal Arrayed-waveguide grating DWDM is by silica-on-silicon planar technology. The AWG chips which GEZHI used for DWDM Mux/Demux are targeted for Long-Haul / Metro and access applications, where outstanding optical performance and low cost are paramount.

The arrayed-waveguide grating (AWG) wavelength division multiplexers and demultiplexers with 100 GHz channel spacing. The wavelength from C13 to C60 wavelength with LC/UPC connector.

The AAWG circuit chips, which are planar lightwave circuits (PLCs) are fabricated . These silica-on-silicon waveguide exhibit exceptional material uniformity, low polarization dependence and low propagation loss.

Features
100-GHz channel spacing
Can be used as Mux or Demux
Athermal design for non-powered distribution nodes.
Wide-Band design - maximizes uniformity in passband
Standard Fiber Connectors: SC, ST, FC, LC, or customized
Connector Polish: UPC or APC (as applicable)

Applications
WDM transmission
WDM based ADM
Optical signal processing
Metro and long haul net works
Wavelength selective routing

Item Details

Low insertion loss
Excellent channel isolation
Epoxy-free optical path
Aluminum pigtailed module
The channel spacing for DWDM is 0.8 nm (100 GHz grid). 1.6nm (200GHz) also available on request.
Protocol transparent (10 Mbps to 100 Gbps)
40 channels Athermal AWG DWDM mux and demux
Distance: Up to 80 km depending on power budget of user equipment
Compliant to ITU-T G.657A1 standard.
ISO 9001 manufacturing facility

Specification

Parameter	Specifications			Unit	Comment
	Min	Max
Input Channel	1
Output Channel	48				32, 40 channels available
Channel Spacing	100			GHz
Reference Passband	-12.5		12.5	GHz
Wavelength Accuracy	-50		50	pm	Relative to ITU Grid
1dB Bandwidth	0.4			nm	F-Flat top Type
3dB Bandwidth	0.6			nm
I.L			6	dB	Worst case in ITU passband
I.L UNI.			1	dB
Ripple			0.7	dB	Loss variation in ITU passband
PDL			0.5	dB	Max. value in ITU passband
Adjacent Crosstalk	25			dB	Worst case in ITU passband
Non-Adjacent Crosstalk	30			dB	Worst case in ITU passband
Total Crosstalk	22			dB	Cumulative crosstalk of all other channels
Return Loss	40			dB
Maximum Continuous Optical Power			250	mW	Maximum input optical power
Chromatic Dispersion(CD)	-20		+20	ps/nm
PMD			0.5	ps

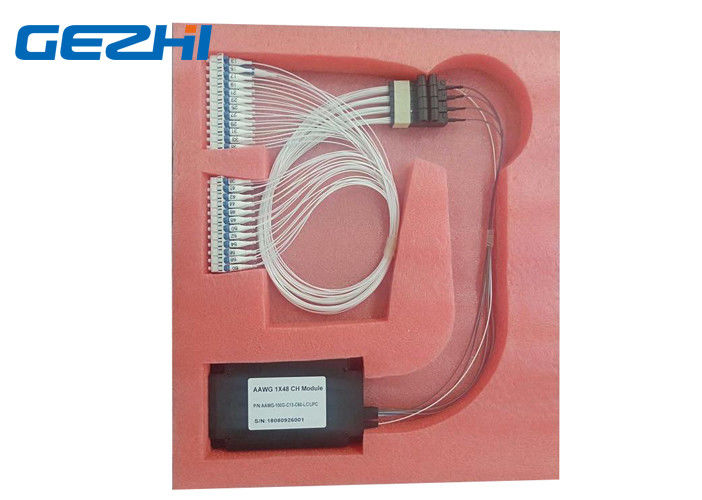

48 channel AAWG Module Package
