Product Name: 32CH AAWG Wavelength: C19 To C50
Channel: 1x32CH Fiber: One Fiber
Package: Standalone 1U 19" Rack Application: WDM Transmission
High Light:

1x32 Athermal AWG Module

,

32 Channels AAWG

,

32CH AAWG



1x32 Channels AAWG DWDM Rackmount Modules

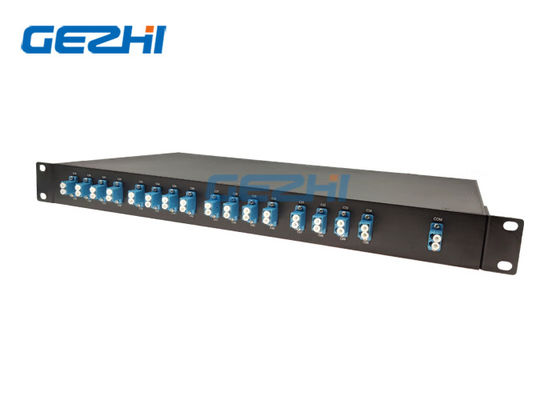

Gezhi’s 1x32 Channels AAWG DWDM Rackmount Modules is a low loss, high density and standalone passive optical module. It is based on Athermal Arrayed Waveguide Grating with Gaussian Monolithic Technology. The 1x32 Channels AAWG DWDM Rackmount Modules offers an ultra low-loss (Max: 3.5dB) and high channel isolation WDM solution for metro access and data centers applications. this 1x32 Channels AAWG DWDM Rackmount Modules ease of fiber handling, long-term reliability and excellent channel isolation in a 1U 19" Rackmount. The 1x32 Channels AAWG DWDM Rackmount Modules built-in Mux in one unit, working on single network fibers.



Features

Applications

  • High Channel Isolation
  • No power required
  • Ultral Low Insertion Loss
  • Standalong 19" 1U Rackmount
  • Wavelength selective routing
  • Metro and long haul Networks
  • WDM transmission
  • Optical signal processing



Specification

Parameters Conditions Specifications Units
Min. Max.
Operating Temperature Operating -5 65 oC
Operating Humidity Operating 5 95 %RH
Storage Temperature Non_Operating -40 +85 oC
Storage Humidity Non_Operating 5 95 %RH
OPTICAL SPECIFICATION AWG GAUSSIAN AAWG
Parameters Condition Specs Units
Min Type Max
Number of Channels     1-1×32
Number Channel Spacing 100GHz   100   GHz
Cha. Center Wavelength ITU frequency.   C –band   nm
Clear Channel Passband     ±0.1   nm



OPTICAL SPECIFICATIONS
Parameters Condition Specs     Units
Min Type Max
Wavelength Stability Maximum range of the wavelength error of all channels and temperatures in average polarization.   ±0.05   nm
-1 dB -1 dB Channel Bandwidth Clear channel bandwidth defined by passband shape. For each channel 0.24     nm
-3 dB -3 dB Channel Bandwidth Clear channel bandwidth defined by passband shape. For each channel 0.43     nm
Optical Insertion Loss at ITU grid Defined as the minimum transmission at ITU wavelength for all channels. For each channel, at all temperatures and polarizations.   3.2 3.5 dB
Adjacent Channel Isolation Insertion loss difference from the mean transmission at the ITU grid wavelength to the highest power, all polarizations, within the ITU band of the adjacent channels. 30     dB
Non-Adjacent, Channel Isolation Insertion loss difference from the mean transmission at the ITU grid wavelength to the highest power, all polarizations, within the ITU band of the nonadjacent channels. 40     dB
Total Channel Isolation

Total cumulative insertion loss difference from the mean transmission at the ITU grid wavelength to the highest power, all polarizations, within the ITU band

of all other channels, including adjacent channels.

33     dB
Insertion Loss Uniformity Maximum range of the insertion loss variation within ITU across all channels, polarizations and temperatures.   0.8 1.0 dB
Insertion Loss Ripple

Any maxima and any minima of optical loss across

ITU band, excluding boundary points, for each channel at each port

  0.4 0.5 dB
Directivity Ratio of reflected power out of any channel (other than channel n)to power in from the input channel n 50     dB
Optical Return loss Input & output ports 40     dB
PDLPolarization Dependent Loss in Clear Channel Band Worst-case value measured in ITU band   0.3 0.5 dB
Polarization Mode Dispersion       0.5 ps
Maximum Optical Power       23 dBm
MUXDEMUX input output Monitoring range   -35   +23 dBm



1x32 Channels AAWG DWDM Rackmount Modules

Ordering Information

AWG X XX X XX X XX
  Channel Spacing Number of Channels Configuration 1st Channel Package Type In/Out Connector
  1=100GHz

32=32Channel

40=40 Channel

44=44 Channel

48=48 Channel





S=Single Fiber

D=Dual Fiber

21=Ch21

……

34=Ch34

……

50=Ch50

……

RU=19” 1U Rackmount

0=None

1=FC/APC

2=FC/PC

3=SC/APC

4=SC/PC

5=ST/PC

6=ST/APC

7=LC/PC

8=LC/APC

S=Specify





























Rack Mount
