Fiber Optical Mini PLC Splitter 1x4 Single Mode APC UPC Steel Tube

Fiber Optical Mini PLC Splitter 1x4 Single Mode APC UPC Steel Tube
Fiber Optical Mini PLC Splitter 1x4 Single Mode APC UPC Steel Tube Fiber Optical Mini PLC Splitter 1x4 Single Mode APC UPC Steel Tube

Large Image :  Fiber Optical Mini PLC Splitter 1x4 Single Mode APC UPC Steel Tube

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE RoHS,ISO9001
Model Number: 1x4 PLC Splitter
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Paper box
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 100000Channel per month
Contact Now
Detailed Product Description
Fiber Type: G657A1 Package: Stainless Steel Tube
Warranty: 3 Years Wavelength: 1310/1490/1550nm
Connector: LC/UPC, LC/APC, SC/UPC Etc. Port: 1x4
Highlight:

Mini PLC Splitter 1x4

,

Single Mode 1x4 PLC Splitter

,

APC UPC 1x4 PLC Splitter




Specifications

Parameter 1xN PLC Splitter Specification
Operating Wavelength (nm) 1260 ~ 1650
Type 1x2 1x4 1x8 1x16 1x32 1x64
Insertion Loss (dB) Typical 3.6 6.8 10.0 13.0 16.0 19.5
Max 3.8 7.1 10.3 13.5 16.5 20.5
Uniformity (dB) Typical 0.4 0.5 0.5 1.0 1.0 2.5
Max 0.6 0.6 0.8 1.2 1.5 2.5
PDL(dB)Max Typical 0.1 0.1 0.1 0.2 0.2 0.2
Max 0.15 0.15 0.25 0.3 0.3 0.3

Wavelength

department loss(dB)

 Typical 0.1 0.1 0.1 0.3 0.4 0.7
Max 0.2 0.3 0.4 0.6 0.8 1.0

Temperature

department loss

 Typical 0.3 0.3 0.3 0.4 0.4 0.4
Max 0.5 0.5 0.5 0.5 0.5 0.5
Directivity (dB) Min 55
Return Loss (dB) Min 55(50)
Operating Temperature (°C) -40~ +85
Storage Temperature (°C) -40 ~ +85
Fiber length 1m or Customized
Fiber Type G657A
Connector Type Customized
PLC Splitter Bare Fiber (mm) 4x4x40 4x4x40 4x4x40 4x7x50 4x7x50 4x12x60
PLC Splitter Blockless (mm) 4x4x40 4x7x60 4x7x60 4x12x60 6x20x80 6x40x100
PLC Splitter Module (mm) 100x80x10 100x80x10 100x80x10 120x80x18 120x80x18 141x115x18
PLC-splitter-rack-mountable(mm) 19’1U 2U Rack-Mount Box, LGX Box, ODF Box






Product Features

♦Low Insertion loss

♦Low PDL

♦Compact Design

♦Good channel-to-channel uniformity

♦Wide Operating Wavelength: From 1260nm to 1650nm

♦Wide Operating Temperature: From -40℃ to 85℃

♦High Reliability and Stability







Product overview

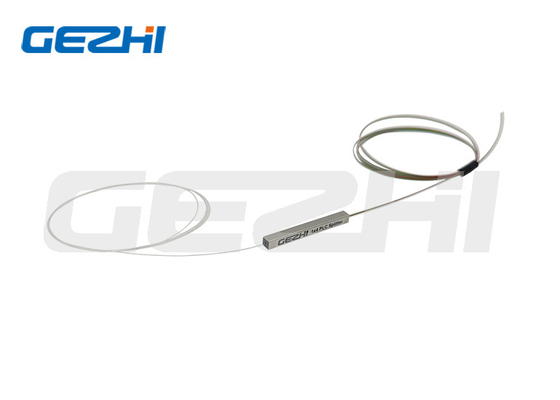

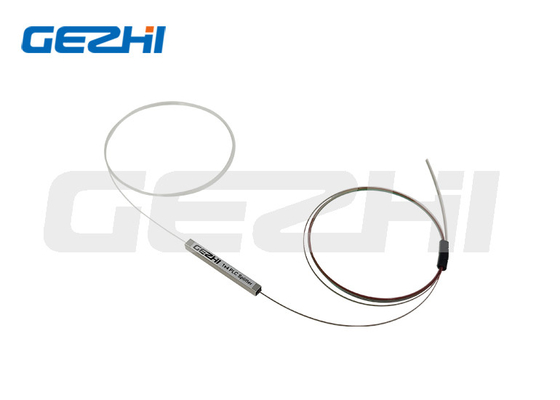

1x4 single mode APC UPC steel tube fiber optical mini PLC splitter



PLC Splitter Bare Fiber



Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. Gezhi Photonics provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.







Odering Information



GP XXX XX XX XX XX XX


Port

Configrition

 Module type Cable type Fiber length Input connector

Output

connector

G=Gezhi

P=PLC



102=1x2

104=1x4

108=1x8

116=1x16

132=1x32

164=1x64

204=2x4

208=2x8

216=2x16

232=2x32

264=2x64

BF=Bare Fiber

BL=Blockless

MO=Module

LG=LGX Box

RM=Rack Mount

CB=Cassette Box

XX=Customized



00=none

09=900um

Loose tube

20=2.0mm

30=3.0mm

05=0.5m

10=1.0m

15=1.5m

30=3.0m

40=4.0m

50=5.0m

......

0=none

1=LC/UPC

2=LC/APC

3=SC/UPC

4=SC/APC

5=FC/UPC

6=FC/APC

7=LC/APC

X=Customized

0=none

1=LC/UPC

2=LC/APC

3=SC/UPC

4=SC/APC

5=FC/UPC

6=FC/APC

7=LC/APC

X=Customized
