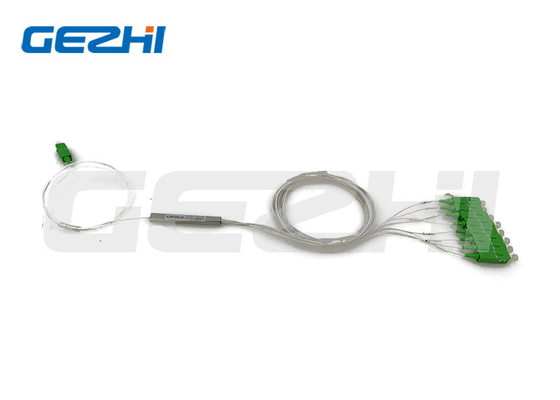

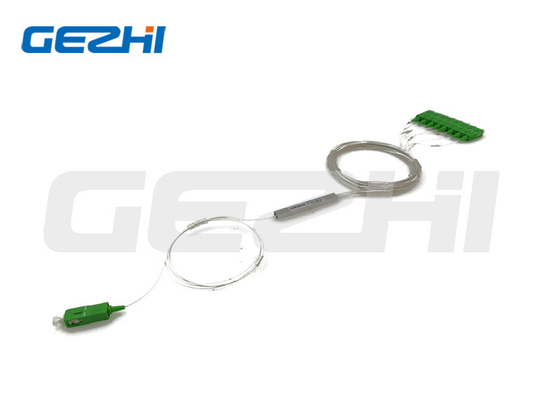

1X8 Fiber Optical PLC Splitter Stainless Steel Tube With SC Connector

1X8 Fiber Optical PLC Splitter Stainless Steel Tube With SC Connector
1X8 Fiber Optical PLC Splitter Stainless Steel Tube With SC Connector 1X8 Fiber Optical PLC Splitter Stainless Steel Tube With SC Connector

Large Image :  1X8 Fiber Optical PLC Splitter Stainless Steel Tube With SC Connector

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE RoHS,ISO9001
Model Number: 1x8 PLC Splitter
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Paper box
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 100000Channel per month
Contact Now
Detailed Product Description
Connector: LC/UPC, LC/APC, SC/UPC Etc. Application: GEPON
Wavelength: 1260-1650nm Warranty Time: 3 Years
Fiber Type: G657A1 Port: 1x8
High Light:

1X8 Fiber Optical PLC Splitter

,

Steel Tube 1X8 PLC Splitter

,

SC Connector 1X8 PLC Splitter



Gezhi is a factory of fiber optical passive product located in Shenzhen, China. We comply with ISO9001 standard and all our product comply with RoHS. We produce Optical Switch, WDM, AWG product with stable performance and competetive price.

WDM: CWDM, DWDM, FWDM, AWG all series WDM product.
Optical Switch: 1x1, 1x2, 2x2Bypass, 2x2Full, 1x4, 1x8, 1XN all series optical switches.


IP RF Video FTTH Network Optical Splitter Integrated WDM Array 0





Product Overview

  Sc Stainless 1X8 Steel-Tube Fiber Optical Plc Splitter With Connector

1x8 PLC Splitter

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical
waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. Gezhi Photonics provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.



 Specification

Parameter 1xN PLC Splitter Specification
Operating Wavelength (nm) 1260 ~ 1650
Type 1x2 1x4 1x8 1x16 1x32 1x64
Insertion Loss (dB) Typical 3.6 6.8 10.0 13.0 16.0 19.5
Max 3.8 7.1 10.3 13.5 16.5 20.5
Uniformity (dB) Typical 0.4 0.5 0.5 1.0 1.0 2.5
Max 0.6 0.6 0.8 1.2 1.5 2.5
PDL(dB)Max Typical 0.1 0.1 0.1 0.2 0.2 0.2
Max 0.15 0.15 0.25 0.3 0.3 0.3

Wavelength

department loss(dB)

 Typical 0.1 0.1 0.1 0.3 0.4 0.7
Max 0.2 0.3 0.4 0.6 0.8 1.0

Temperature

department loss

 Typical 0.3 0.3 0.3 0.4 0.4 0.4
Max 0.5 0.5 0.5 0.5 0.5 0.5
Directivity (dB) Min 55
Return Loss (dB) Min 55(50)
Operating Temperature (°C) -40~ +85
Storage Temperature (°C) -40 ~ +85
Fiber length 1m or Customized
Fiber Type G657A
Connector Type Customized
PLC Splitter Bare Fiber (mm) 4x4x40 4x4x40 4x4x40 4x7x50 4x7x50 4x12x60
PLC Splitter Blockless (mm) 4x4x40 4x7x60 4x7x60 4x12x60 6x20x80 6x40x100
PLC Splitter Module (mm) 100x80x10 100x80x10 100x80x10 120x80x18 120x80x18 141x115x18
PLC-splitter-rack-mountable(mm) 19’1U 2U Rack-Mount Box, LGX Box, ODF Box








Features and Applications

Features

Low Insertion loss
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength: From 1260nm to 1650nm
Wide Operating Temperature: From -40℃ to 85℃
High Reliability and Stability





Applications
FTTX Systems
PON Networks
CATV Links
Optical Signal Distribution





Product Overview



Sc Stainless 1X8 Steel-Tube Fiber Optical Plc Splitter With Connector



PLC Splitter is Based on the Planar Waveguide Technology. It Provides a Low Cost Power Distribution Solution with Small Form Factor and High Reliability.
