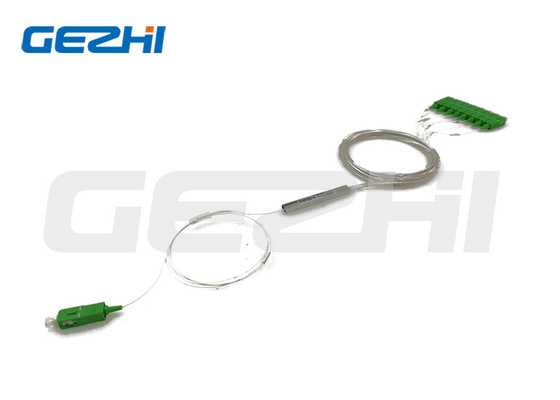

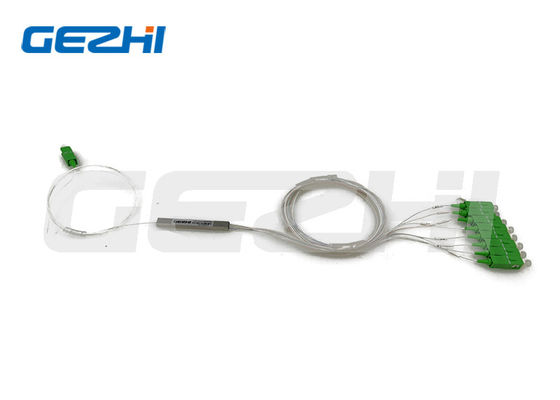

Mini Type SC APC 1x8 PLC Splitter Fiber Optic Passive Components For FTTH

Name: Mini Type SC APC 1x8 PLC Splitter Fiber Optic Passive Components For FTTH
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: 1*8 SC APC Mini Type PLC Splitter
Price: Negotiable USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	1*8 SC APC Mini Type PLC Splitter
MOQ:	1pc
Price:	Negotiable
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Type:

PLC Splitter

Port:

1x8

Control Type:

G657A1

Application:

GEPON

Package:

Stainless Steel Tube

Fiber Connector:

LC/UPC, LC/APC, SC/UPC Etc.

Wavelength:

1260-1650nm

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

SC APC 1x8 PLC Splitter

Mini Type 1x8 PLC Splitter

FTTH Fiber Optic Passive Components

Product Description

High Quality Fiber Optic 1*8 SC APC Mini Type PLC Splitter for FTTH

Product Overview

PLC Splitter

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical

waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. PLC splitters are

commonly found in PON(Passive Optical Networks), Datacom, LAN(Local Area Networks), CATV(Cable TV), LCP(Local Convergence Points),FTTx, and more applications, suitable for communication, medical, bank, building, large Office buildings, offices and other places with high-quality network requirements. Blockless PLC splitter is mainly used for the connection of outdoor optical distribution boxes or network cabinets, aiming to improve the utilization rate of customer ports.


			Features
			Application


			Excellent Temperature stability
			FTTX/FTTH Systems



			Good repeatability and exchangeability
			CATV Links



			Excellent mechanical endurance
			Optical Signal Distribution



			Strict curing time and temperature control
			Passive Optical Networks (PON)



			Strict testing standards and methods for quality
			DWDM/CWDM systems



			Environment protection (ROHS Compliance)
			Test equipment



			Low insertion loss,high return loss
			LAN/MAN/WAN network



			100% NEW raw material and well quality control ensure the best life time.




PRODUCT SPECIFICATIONS


			Parameters
			1×2
			1×4
			1×8
			1×16
			1×32
			1×64


			Operating Wavelength (nm)
			1260~1650


			Fiber Type
			SMF-28e or customer specified


			Insertion Loss (dB)(S/P Grade)
			4.0/3.8
			7.3/7.0
			10.5/10.2
			13.7/13.5
			16.9/16.5
			21.0/20.5


			Loss Uniformity (dB)
			0.4
			0.6
			0.8
			1.2
			1.5
			2.5


			Return Loss (dB) (S/P Grade)
			50/55
			50/55
			50/55
			50/55
			50/55
			50/55


			Polarization Dependent Loss(dB)
			0.2
			0.2
			0.3
			0.3
			0.3
			0.4


			Directivity (dB)
			55
			55
			55
			55
			55
			55


			Wavelength Dependent Loss(dB)
			0.3
			0.3
			0.3
			0.5
			0.5
			0.5


			Temperature Stability(-40~85 °C)(dB)
			0.5
			0.5
			0.5
			0.5
			0.5
			0.5


			Operating Temperature (°C)
			-40~85


			Storage Temperature (°C)
			-40~85


			Module Dimension (mm) (L×W×H)
			100×80×10
			100×80×10
			100×80×10
			120×80×18
			140×115×18
			140×115×18



FAQ
Q1:Can I have a sample order? What is your for MOQ 1*8 PLC Splitter?
A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available.  Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, Alibaba etc.
Q4: What is your warranty time for 1*8 PLC Splitter?

A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?

A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
