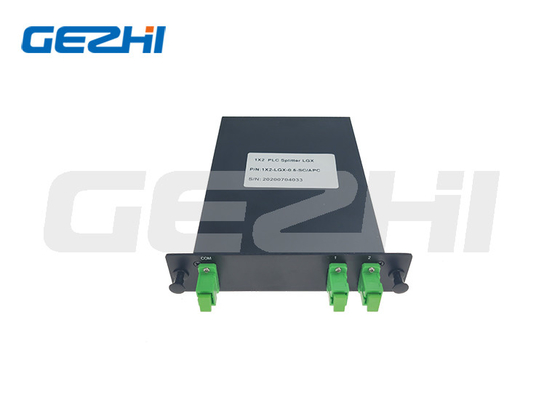

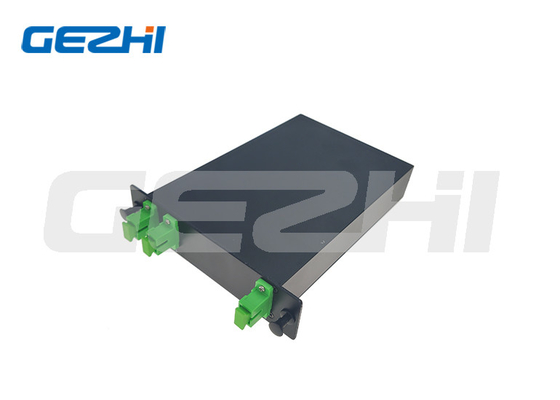

LGX Cassette Type FTTH PLC Splitter 1x2 Fiber Optic ABS Box PLC Splitter

LGX Cassette Type FTTH PLC Splitter 1x2 Fiber Optic ABS Box PLC Splitter
LGX Cassette Type FTTH PLC Splitter 1x2 Fiber Optic ABS Box PLC Splitter LGX Cassette Type FTTH PLC Splitter 1x2 Fiber Optic ABS Box PLC Splitter

Large Image :  LGX Cassette Type FTTH PLC Splitter 1x2 Fiber Optic ABS Box PLC Splitter

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE RoHS,ISO9001
Model Number: 1x2 PLC Splitter LGX
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Paper box
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 100000Channel per month
Contact Now
Detailed Product Description
Connector: SC,FC, LC, ST Etc Operating Temperature (°C): -40 ~ +85
Application: FTTX Network Wavelength: 1260~1650
Name: LGX Cassette Type PLC Splitter Box Material: Metal
High Light:

LGX Cassette FTTH PLC Splitter

,

ABS Box FTTH PLC Splitter

,

1x2 ABS Box PLC Splitter



High quality and Stability Material

LGX Cassette Type FTTH PLC Splitter 1x2 Fiber Optic ABS Box PLC Splitter 0   LGX Cassette Type FTTH PLC Splitter 1x2 Fiber Optic ABS Box PLC Splitter 1   LGX Cassette Type FTTH PLC Splitter 1x2 Fiber Optic ABS Box PLC Splitter 2



High Reliable & Stable quality
PLC Chip





G657A1 Fiber with min10mm bend radius allow tighter or bending


 zirconia ceramic ferrules



Product packaging



LGX Cassette Type FTTH PLC Splitter 1x2 Fiber Optic ABS Box PLC Splitter 3  LGX Cassette Type FTTH PLC Splitter 1x2 Fiber Optic ABS Box PLC Splitter 4LGX Cassette Type FTTH PLC Splitter 1x2 Fiber Optic ABS Box PLC Splitter 5

           Finished Item           Inner Package                      Carton





Specifications

Parameter 1xN PLC Splitter Specification
Operating Wavelength (nm) 1260 ~ 1650
Type 1x2 1x4 1x8 1x16 1x32 1x64
Insertion Loss (dB) Typical 3.6 6.8 10.0 13.0 16.0 19.5
Max 3.8 7.1 10.3 13.5 16.5 20.5
Uniformity (dB) Typical 0.4 0.5 0.5 1.0 1.0 2.5
Max 0.6 0.6 0.8 1.2 1.5 2.5
PDL(dB)Max Typical 0.1 0.1 0.1 0.2 0.2 0.2
Max 0.15 0.15 0.25 0.3 0.3 0.3

Wavelength

department loss(dB)

 Typical 0.1 0.1 0.1 0.3 0.4 0.7
Max 0.2 0.3 0.4 0.6 0.8 1.0

Temperature

department loss

 Typical 0.3 0.3 0.3 0.4 0.4 0.4
Max 0.5 0.5 0.5 0.5 0.5 0.5
Directivity (dB) Min 55
Return Loss (dB) Min 55(50)
Operating Temperature (°C) -40~ +85
Storage Temperature (°C) -40 ~ +85
Fiber length 1m or Customized
Fiber Type G657A
Connector Type Customized
PLC Splitter Bare Fiber (mm) 4x4x40 4x4x40 4x4x40 4x7x50 4x7x50 4x12x60
PLC Splitter Blockless (mm) 4x4x40 4x7x60 4x7x60 4x12x60 6x20x80 6x40x100
PLC Splitter Module (mm) 100x80x10 100x80x10 100x80x10 120x80x18 120x80x18 141x115x18
PLC-splitter-rack-mountable(mm) 19’1U 2U Rack-Mount Box, LGX Box, ODF Box



Product Overview



FTTH PLC Splitter LGX Cassette Type 1x2 Fiber Optic PLC Box Splitter



1x2 PLC Splitter LGX



Planar lightwave circuit (PLC) splitter is an optical power distribution device based on the integrated waveguide of quartz plate. With the features of small size, wide range of operating wavelength, stable reliability and good uniformity, It’s widely used in PON,ODN,FTTX point to connect between termination device and central office to achieve the signal splitter.



Gezhi Photonics provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.

PLC Splitter is based on the planar waveguide technology. It provides a low cost power distribution solution with small form factor and high reliability.









Features

♦Low Insertion loss

♦ Low PDL

♦ Compact Design

♦ Good channel-to-channel uniformity

♦ Wide Operating Wavelength: From 1260nm to 1650nm

♦ Wide Operating Temperature: From -40℃ to 85℃

♦ High Reliability and Stability







Applications

♦ FTTX Systems

♦ PON Networks

♦ CATV Links

♦ Optical Signal Distribution
