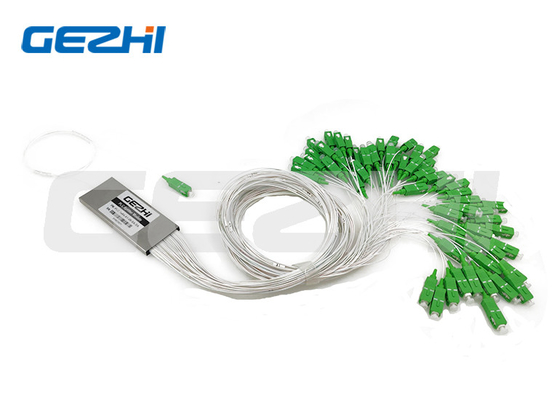

FTTX 1×64 PLC Splitter Single Mode Blockless PLC Fiber Optic Splitter

FTTX 1×64 PLC Splitter Single Mode Blockless PLC Fiber Optic Splitter
FTTX 1×64 PLC Splitter Single Mode Blockless PLC Fiber Optic Splitter FTTX 1×64 PLC Splitter Single Mode Blockless PLC Fiber Optic Splitter FTTX 1×64 PLC Splitter Single Mode Blockless PLC Fiber Optic Splitter

Large Image :  FTTX 1×64 PLC Splitter Single Mode Blockless PLC Fiber Optic Splitter

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE RoHS,ISO9001
Model Number: 1×64 PLC Splitter
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Paper box
Payment Terms: T/T, Western Union
Supply Ability: 5000pcs per month
Contact Now
Detailed Product Description
Model Number: PLC Splitter Use: FTTX
Application: FTTH FTTB FTTX Network, Communication Fiber Type: Single Fiber Single Mode
Warranty Time: 3 Years
Highlight:

FTTX 1×64 PLC Splitter

,

Blockless PLC Fiber Optic Splitter

,

Single Mode 1×64 PLC Splitter

PLC Splitter 1×64 Single Mode Blockless PLC Fiber Optic Splitter



Product Overview

PLC Splitter

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical

waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel

uniformity, and is widely used in PON networks to realize optical signal power splitting. Gezhi provides whole series of 1xN and

2xN splitter products that are tailored for specific applications.



PRODUCT SPECIFICATIONS

Parameters
1×2
1×4
1×8
1×16
1×32
1×64
Operating Wavelength (nm)
1260~1650
Fiber Type
G657 or customized
Insertion Loss (dB)
≤4.1
≤7.4
≤10.5
≤13.8
≤17.1
≤20.4
Loss Uniformity (dB)
≤0.8
≤0.8
≤0.8
≤1.0
≤1.5
≤2.0
Return Loss (dB)
≥50
≥50
≥50
≥50
≥50
≥50
Polarization Dependent Loss(dB)
0.2
0.2
0.3
0.3
0.3
0.4
Directivity (dB)
≥55
≥55
≥55
≥55
≥55
≥55
Temperature Stability (-40~85 ℃)(dB)
0.5
0.5
0.5
0.5
0.5
0.5
Operating Temperature (℃)
-40~85
Storage Temperature (℃)
-40~85
Typies
1*2,1*4,1*8,1*16,1*32,1*64(with/without connectors)
2*2,2*4,2*8,2*16,2*32,2*64(with/without connectors)
Note:
1. The insertion loss is at least 0.2dB less without connector.
2. The insertion loss for 2×N PLC would increase less than 0.3dB.
3. Insertion loss varies with different connectors:UPC ≥50 dB, APC ≥55 dB



FEATURES

Low Insertion loss

Low PDL

Compact Design Good channel-to-channel uniformity

Wide Operating Wavelength: From 1260nm to 1650nm

Wide Operating Temperature: From -40℃ to 85℃

High Reliability and Stability

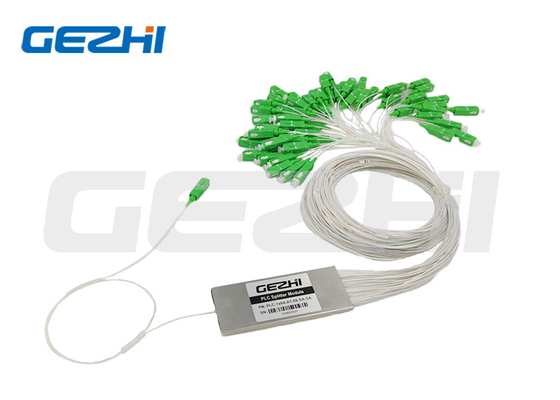

FTTX 1×64 PLC Splitter Single Mode Blockless PLC Fiber Optic Splitter 0

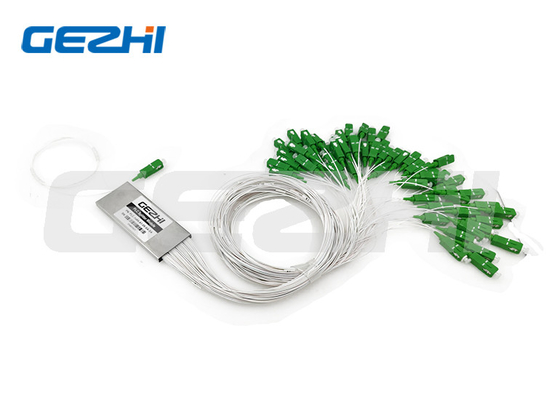

FTTX 1×64 PLC Splitter Single Mode Blockless PLC Fiber Optic Splitter 1
