Good price online

products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Fiber Optic Passive Components
Created with Pixso. High Power Transfer Efficiency Multimode Pump Combiner with Custom Configurations and Wavelength Insensitive for Fiber Laser Combination
High Power Transfer Efficiency Multimode Pump Combiner with Custom Configurations and Wavelength Insensitive for Fiber Laser Combination
  • name
  • name
  • name
  • name

High Power Transfer Efficiency Multimode Pump Combiner with Custom Configurations and Wavelength Insensitive for Fiber Laser Combination

Brand Name: GEZHI or OEM
Model Number: Multimode Pump Combiner
MOQ: 1pc
Price: US$59-US$118
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Operating Temperature:
40~+85
Packaging Details:
Paper box
Supply Ability:
5000pcs per month
Highlight:

High Power Pump Combiner

,

Fiber Laser Combination Pump Combiner

,

Multimode Pump Combiner

Product Description
High Power Transfer Efficiency Multimode Pump Combiner for Fiber Laser Combination

Multimode pump combiner combines 4 multimode lasers power to create a high power output with consigned fibers. It features exceptional optical characteristics. The output fiber can be transmitting energy fiber as the energy synthesis, it also can be no core fiber or LMA double clad fiber, which people can splice with match doped LMA double cladding fiber.

Gezhi Photonics' Multimode Pump Combiners offer efficient power transfer for high power applications like direct diode materials processing and pump cascading with a maximum conservation of brightness. The Multimode Combiners can be designed to meet a wide range of power handling configurations, number of input fibers and adaptation to different fiber types.

We can produce the Nx1 pump combiner including 2x1, 3x1, 4x1, 7x1, 19x1, 37x1 pump combiner and so on. Pump fiber, output fiber type and the configuration (Nx1) can be customized, with power handling per multimode port of 10W, 25W, 50W, 100W (200W or higher can be customized).

Key Features
High Power Transfer Efficiency
Wavelength Insensitive
Custom Configurations Available
High Power Handling
ROHS Compliant
Applications
Fiber Lasers
Fiber Laser Combination
kW Class Fiber Lasers
Industrial & Research
Technical Specifications
PARAMETERS VALUES
Pump Operating Wavelengths 800-1000nm
Number of Multimode Inputs 2, 3, 4, 7 or customized
Number of Output Ports 1
Return Loss - Pumps 35dB
Operating Temperature 0~75℃
Storage Temperature -40~85℃

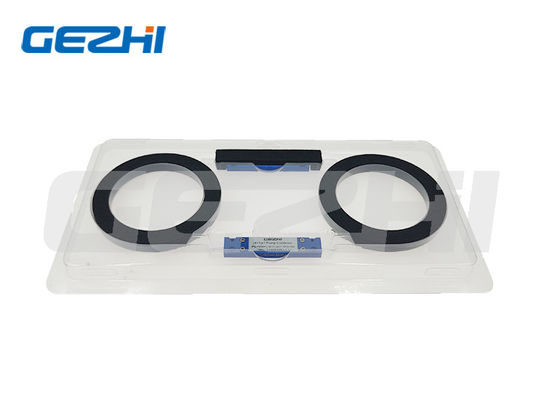

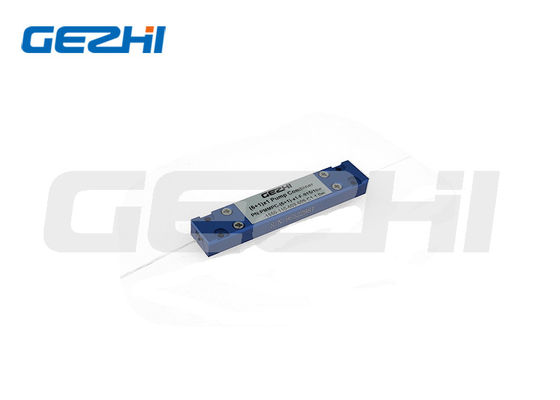

Product Images
High Power Transfer Efficiency Multimode Pump Combiner with Custom Configurations and Wavelength Insensitive for Fiber Laser Combination 0 High Power Transfer Efficiency Multimode Pump Combiner with Custom Configurations and Wavelength Insensitive for Fiber Laser Combination 1
