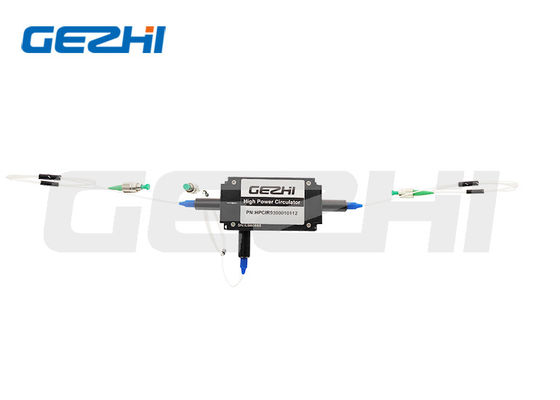

Low Insertion Loss High Power 3 Ports Fiber Optical Circulator for EDFA DWDM OTDR Systems

Name: Low Insertion Loss High Power 3 Ports Fiber Optical Circulator for EDFA DWDM OTDR Systems
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: 3 Ports High power circulator
Price: 465.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	3 Ports High power circulator
MOQ:	1pc
Price:	US$250-US$680
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Power:

Up To 20W

Packaging Details:

Paper box

Highlight:

High Power Fiber Optical Circulator

3 Ports Fiber Optical Circulator

EDFA Fiber Optical Circulator

Product Description

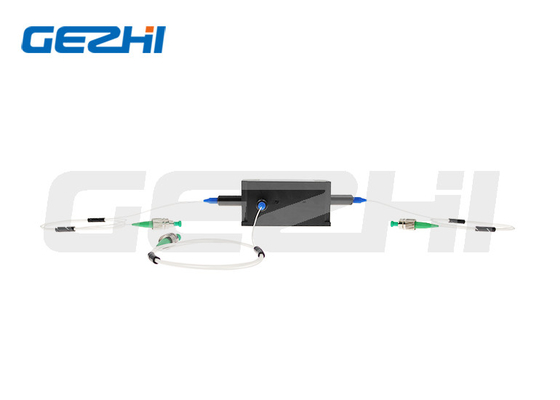

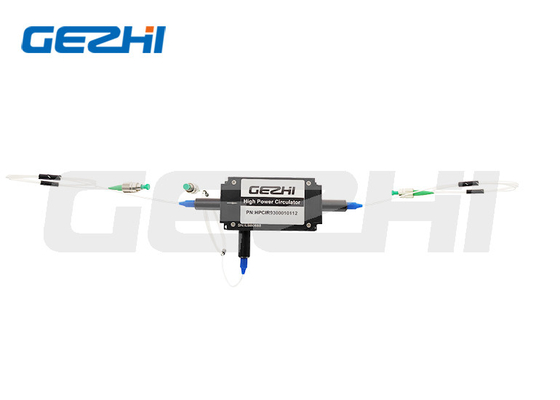

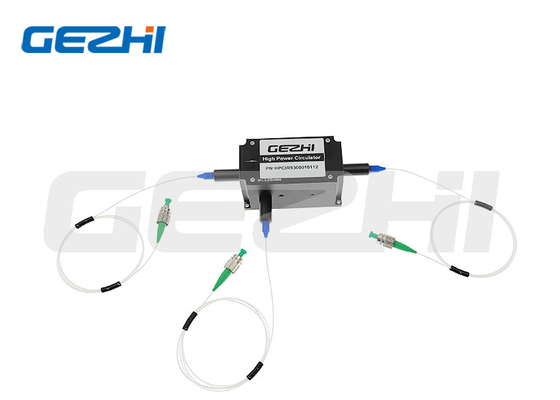

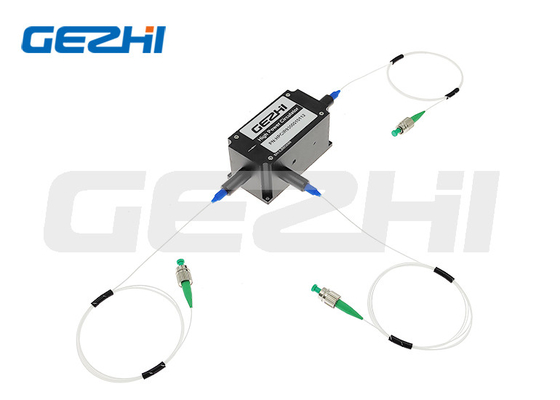

Low Insertion Loss 3 Ports High Power Fiber Optical Circulator For EDFA DWDM OTDR System

Product Overview

The 3-Port High Power Optical Circulator is a high-performance light-wave component that routes incoming signals from Port 1 to Port 2, and incoming Port 2 signals to Port 3. Fiber optic circulators function as signal routers, transmitting light from an input fiber to an output fiber while directing returning light along that output fiber to a third port. They provide similar protection as isolators, safeguarding the input fiber from return power while enabling utilization of the rejected light.

Key Features

Low Insertion Loss
High Return Loss
High Stability & Reliability

Applications

Fiber Amplifier
Testing Instrument
Medical Equipment

Technical Specifications

Standard Power Version (Up to 20W)

Parameter	Unit	Value
Power		Up to 20W
Center Wavelength	nm	1064, 1030, 980 \| 850, 808, 780
Operating Wavelength Range	nm	±5
Typ. Peak Isolation	dB	25 \| 23
Min. Isolation at 23℃	dB	22 \| 20
Typ. Insertion Loss at 23℃	dB	1.0 \| 1.2
Max. Insertion Loss at 23℃	dB	1.3 \| 1.5
Min. Extinction Ratio at 23℃ (PM Fiber Type)	dB	20 \| 18
Max. Polarization Dependent Loss at 23℃ (SM Fiber Type)	dB	0.15
Min. Return Loss at 23℃ (Input/Output)	dB	45
Min. Cross Talk	dB	45
Max. Average Optical Power (Including Port1 & Port2)	W	1, 2, 5, 10, 20 or Specified
Max. Peak Power for ns Pulse	kW	10 or Specified
Max. Tensile Load	N	5
Package Dimension	mm	70x28x26
Operating Temperature	℃	+10~+50
Storage Temperature	℃	0~+60

High Power Version (Up to 100W)

Parameter	Unit	Value
Power		Up to 100W
Center Wavelength	nm	1064, 1030, 980
Operating Wavelength Range	nm	±5
Typ. Peak Isolation	dB	25
Min. Isolation at 23℃	dB	22
Typ. Insertion Loss at 23℃	dB	1.0
Max. Insertion Loss at 23℃	dB	1.3
Min. Extinction Ratio at 23℃ (PM Fiber Type)	dB	20
Max. Polarization Dependent Loss at 23℃ (SM Fiber Type)	dB	0.15
Min. Return Loss at 23℃ (Input/Output)	dB	45
Min. Cross Talk	dB	45
Max. Average Optical Power (Including Port1 & Port2)	W	50, 100 or Specified
Max. Peak Power for ns Pulse	kW	10 or Specified
Max. Tensile Load	N	5
Package Dimension	mm	82x38x35
Operating Temperature	℃	+10~+50
Storage Temperature	℃	0~+60

Note: With connectors, the handling power is 1W only, IL is 0.3dB higher, RL is 5dB lower, and ER is 2dB lower. Connector key is aligned to slow axis.

Packaging

Original Carton Package. Custom packaging available as per customer requirements.
