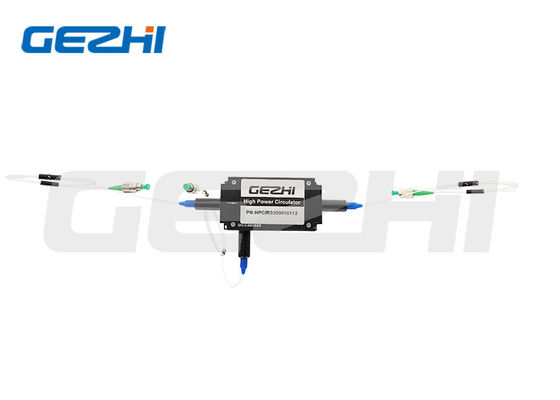

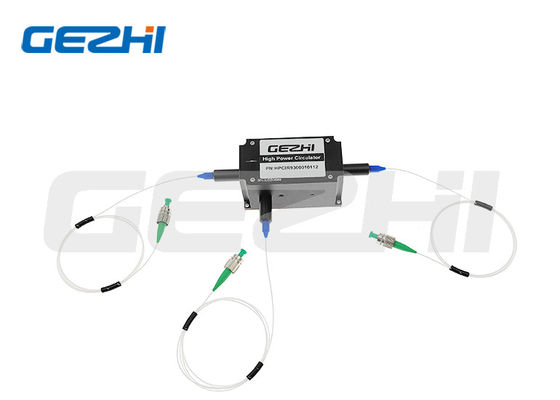

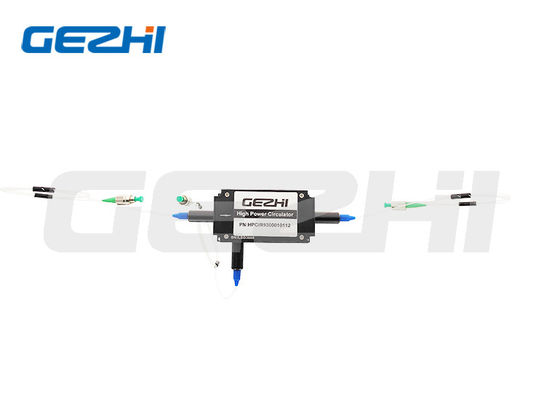

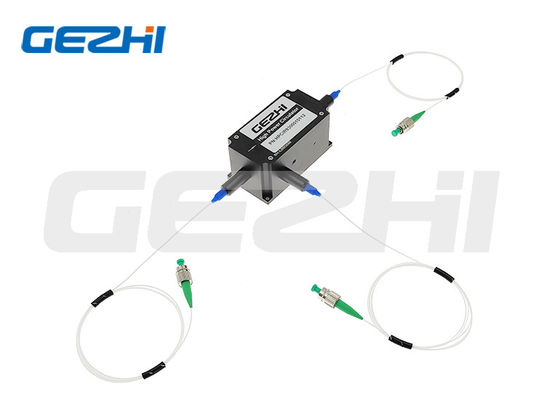

3 Port 1310/1480/1550nm 20W High Power Fiber Circulator for Fiber Sensor and Amplifier

Name: 3 Port 1310/1480/1550nm 20W High Power Fiber Circulator for Fiber Sensor and Amplifier
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: 3 Ports High Power Fiber Circulator
Price: 465.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	3 Ports High Power Fiber Circulator
MOQ:	1pc
Price:	US$250-US$680
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Port Type:

3 Port

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

High Power Fiber Circulator

3 Ports Fiber Circulator

Product Description

3 Ports High Power Fiber Circulator 1310/1480/1550nm For Fiber Sensor

Product Overview

High Reliability & Stability 1310/1480/1550nm 3 Ports High Power Fiber Circulator (up to 20W) for Fiber Sensor

The 1310nm/1480nm/1550nm 3-port High Power SM Optical Circulator-30W is a compact, high performance light wave polarization independent component that routes incoming signals from Port 1 to Port 2, and incoming Port 2 signals to Port 3. Fiber optic circulators act as signal routers, transmitting light from an input fiber to an output fiber, while directing light that returns along that output fiber to a third port. They are ideal for high power fiber laser and instrumentation applications.

Features

Low Insertion Loss
High Return Loss
High Isolation
High Reliability & Stability

Applications

EDFA & Raman Amplifier
Fiber Sensor
Fiber Instrument

Technical Specifications

Parameter	Unit	Type A	Type B
Type	-	Type A	Type B
Port Type	-	3 Port
Center Wavelength	nm	1550, 1480, 1310
Operating Wavelength Range	nm	±20
Typ. Insertion Loss at 23℃	dB	0.7	0.6
Max. Insertion Loss at 23℃	dB	0.9	0.8
Typ. Peak Isolation 23℃	dB	46	30
Min. Isolation at 23℃	dB	40	25
Min. Extinction Ratio at 23℃ (PM Fiber Type)	dB	20
Max. Polarization Dependent Loss at 23℃ (SM Fiber Type)	dB	0.15
Min. Cross Talk	dB	50
Min. Return Loss at 23℃	dB	50
Package Dimensions (Input Power ≤5W)	mm	φ5.5x35
Package Dimensions (Input Power ≤10W)	mm	70x12x8
Package Dimensions (Input Power ≤20W)	mm	/	38x18.5x11.5
Max. Tensile Load	N	5
Operating Temperature	℃	-5~+70
Storage Temperature	℃	-40~+85

With connector, the handling power is 1W only, IL is 0.3dB higher, RL is 5dB lower, and ER is 2dB lower.
Connector key is aligned to slow axis.

Package Dimensions

Ordering Information

HPMCIR-1111-234-555-67-8-999-AABB (PM Fiber Type)
HPICIR-1111-234-555-67-8-999-AABB (SM Fiber Type)

1111 - Wavelength: 1550=1550nm, 1480=1480nm, 1310=1310nm, SSSS=Specified

2 - Port Type: 3=3-Port

3 - Stage: A=Type A, B=Type B

4 - Working Axis: F=Fast axis blocked, N=Non-PM

555 - Fiber Type: 001=PM1550, 002=PM1310, 008=SMF-28E, SSS=Specified

6 - Package Dimensions: 0=φ5.5x35mm, 1=70x12x8mm, 2=38x18.5x11.5mm, 3=50x28x14mm, S=Specified

7 - Pigtail Type: 0=bare fiber, 1=900μm loose tube

8 - Fiber Length: 0.8=0.8m, 1.0=1m, S=Specified

999 - Connector Type: 0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Specified

AA - Average Power: 01=1W, 02=2W, 05=5W, 10=10W, 20=20W, SS=Specified

BB - Peak Power: 00=Continuous Wave, 01=1kW, 02=2kW, 10=10kW, SS=Specified
