| Brand Name: | GEZHI or OEM |
| Model Number: | 1950,2000,2050nm High Power Optical Circulator |
| MOQ: | 1pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |

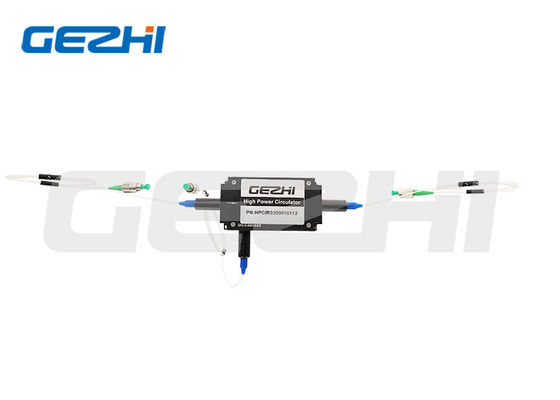

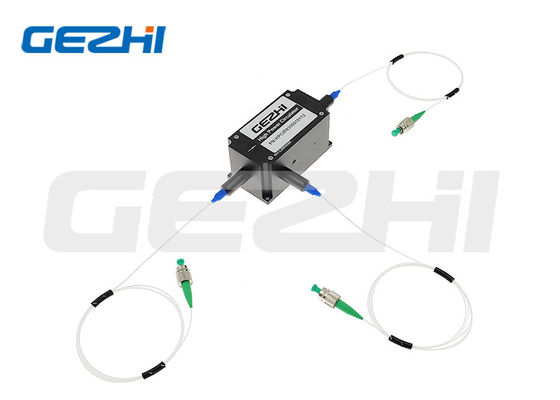

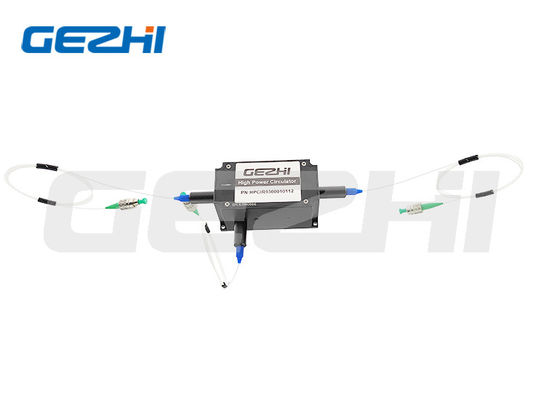

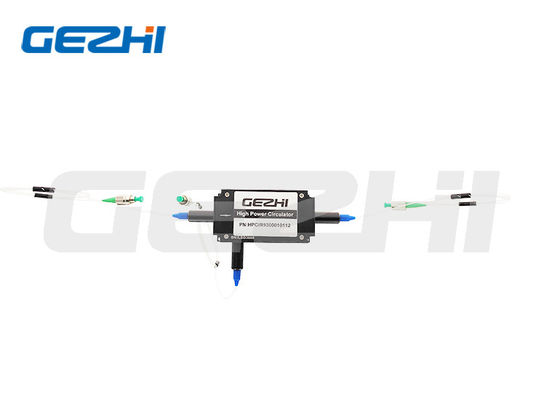

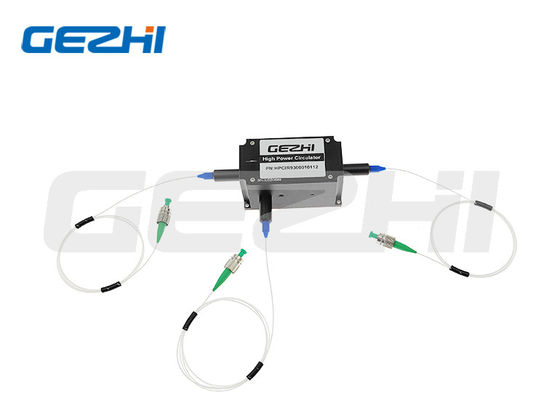

Good Price 3 ports 1950,2000,2050nmHigh Power Optical Circulator for Fiber Instrument (up to 20W)
Product Description
| Parameter | Unit | Value | |
| Port Type | - |
3 Port
|
|
| Center Wavelength | nm | 1950, 2000, 2050 | |
| Operating Wavelength Range | nm |
±10
|
|
| Max. Insertion Loss at 23℃ | dB | 1.3 | |
| Min. Isolation at 23℃ | dB | 16 | |
| Min. Crosstalk | dB | 50 | |
| Min. Extinction Ratio at 23℃ (PM Fiber Type) | dB | 18 | |
| Max. Polarization Dependent Loss at 23℃ (SM Fiber Type) | dB | 0.15 | |
| Min. Return Loss | dB | 50 | |
| Max. Optical Power | W | 1, 2, 5,..., 20 or Specified | |
| Package Dimensions | Input Power ≤5W | mm | φ5.5x35 (PM type only) |
| Input Power ≤20W | mm | 50x28x14 | |
| Max. Tensile Load | N | 5 | |
| Operating Temperature | ℃ | 0~+70 | |
| Storage Temperature | ℃ | -40~+85 | |
With connector, the handling power is 1W only, IL is 0.3dB higher, RL is 5dB lower, and ER is 2dB lower.
Connector key is aligned to slow axis.
Package Dimensions
|
HPMCIR-1111-23-444-56-7-888-99AA (PM Fiber Type) / HPICIR-1111-23-444-56-7-888-99AA (SM Fiber Type)
|
|
| 1111 - Wavelength: | 2050=2050nm, 2000=2000nm, 1950=1950nm, SSSS=Specified |
| 2 - Port Type: | 3=3-Port |
| 3 - Working Axis: | F=Fast axis blocked, N=Non-PM |
| 444 - Fiber Type: |
001=PM1550, 008=SMF-28, 022=PM-GDF-10/130-2000-M, 0045=PM1950, 090=SM1950, SSS=Specified |
| 5 - Package Dimension: | 0=φ5.5x35mm, 1=70x12x8mm, 2=50x28x14mm, S=Specified |
| 6 - Pigtail Type: | 0=bare fiber, 1=900μm loose tube |
| 7 - Fiber Length: | 0.8=0.8m, 1.0=1m, S=Specify |
| 888 - Connector Type: | 0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Specified |
| 99 - Average Power: | 00=300mW, 01=1W, 05=5W, 10=10W, 20=20W, SS=Specified |
| AA - Peak Power: | 00=Continuous Wave, 10=10kW, SS=Specified |
|
|
