| Product Name: | 2x2 PLC Splitter | Port: | 2x2 |
|---|---|---|---|
| Connector: | SC/UPC,SC/APC Or Customize | Wavelength: | 1260-1650nm |
| Fiber Length: | 1m Or Customized | Application: | FTTX |
| High Light: | FTTH Fiber Optic Passive Components,TTTX Fiber Optic Passive Components,2x2 Optical PLC Splitter |
||
Overview of 2x2 PLC Splitter

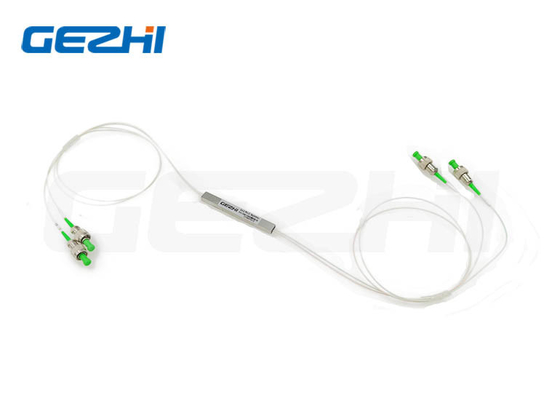

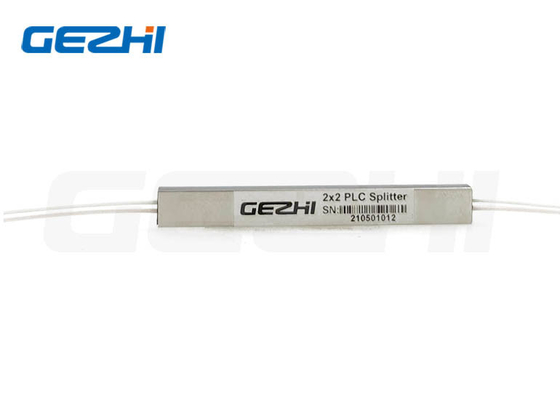

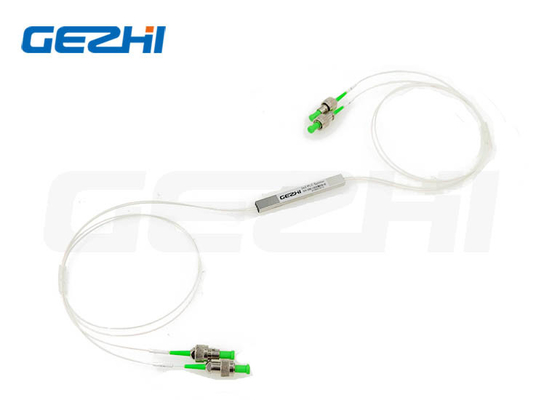

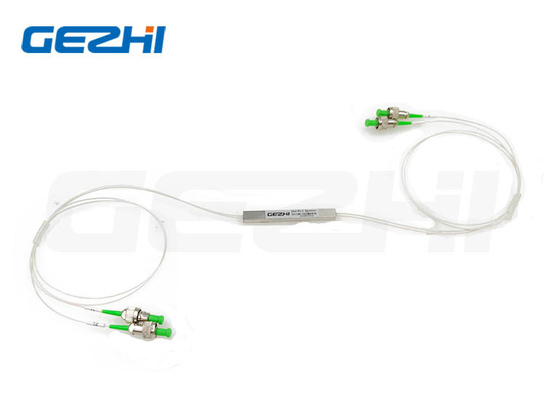

FTTH TTTX 2x2 Fiber Optical PLC Splitter with steel tube type
2x2 PLC Splitter
2×2 Planar Lightwave Circuit (PLC) Mini Module Splitter, Fabricated using silica optical waveguide technology to distribute optical signals accurately and evenly with minimal loss providing a low cost light distribution solution with small form factor and high reliability.
Commonly used for connections in optical distribution box or network cabinet for Fiber to the point (FTTx) deployments, CATV links and other passive optical networks (e.g., GPON).
Features & Applications of 2x2 PLC Splitter
|
Features Compact Design Low PDL Wide Operating Temperature: From -40℃ to 85℃ |
Applications CATV FTTX Systems Optical Signal Distribution |
Specifications of 2x2 PLC Splitter
| Parameters | 2x2 PLC Splitter | ||||
| Operating Wavelength (nm) | 1260 ~1650 | ||||
| Insertion Loss, Max. (dB) | 4.2 | 7.8 | 11.5 | 14.5 | 17.7 |
| Uniformity (dB) | 0.6 | 1.2 | 1.5 | 1.8 | 2 |
| PDL, Max. (dB) | 0.2 | 0.2 | 0.4 | 0.4 | 0.4 |
| WDL (dB) | 0.4 | 0.4 | 0.5 | 0.6 | 0.8 |
| Return Loss, Min. (dB) | 55 | ||||
| Directivity Min. (dB) | 55 | ||||
| Operating Temp. (°C) | -40 ~ +85 | ||||
| Dimensions (mm) | 4(W)x4(H)x40(L) | 7 (W)x4 (H)x50(L) | |||
Odering Information of 2x2 PLC Splitter
| GP | XXX | XX | XX | XX | XX | XX |
|
Port Configrition |
Module type | Cable type | Fiber length | Input connector |
Output connector |
|
|
G=Gezhi P=PLC
|
102=1x2 104=1x4 108=1x8 116=1x16 132=1x32 164=1x64 204=2x4 208=2x8 216=2x16 232=2x32 264=2x64 |
BF=Bare Fiber BL=Blockless MO=Module LG=LGX Box RM=Rack Mount CB=Cassette Box XX=Customized
|
00=none 09=900um Loose tube 20=2.0mm 30=3.0mm |
05=0.5m 10=1.0m 15=1.5m 30=3.0m 40=4.0m 50=5.0m ...... |
0=none 1=LC/UPC 2=LC/APC 3=SC/UPC 4=SC/APC 5=FC/UPC 6=FC/APC 7=LC/APC X=Customized |
0=none 1=LC/UPC 2=LC/APC 3=SC/UPC 4=SC/APC 5=FC/UPC 6=FC/APC 7=LC/APC X=Customized |
FAQ
Q1:Can I have a sample order? What is your MOQ of 2x2 PLC splitter?
