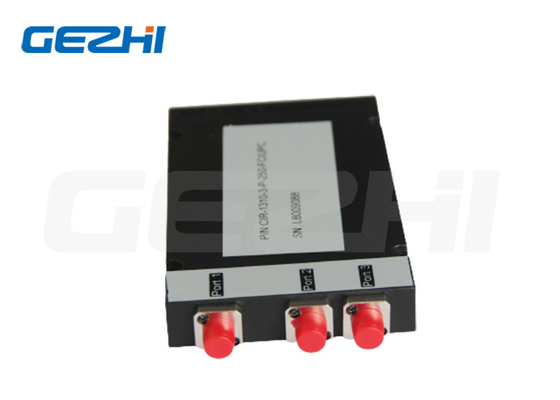

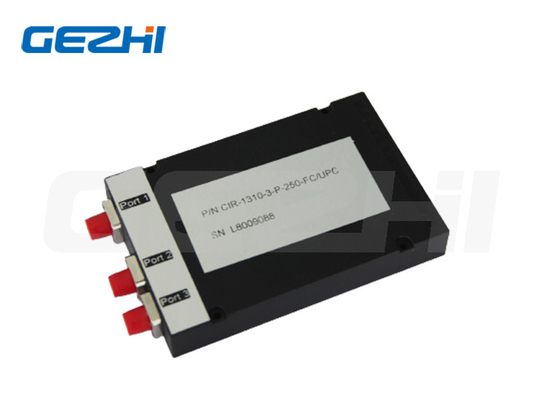

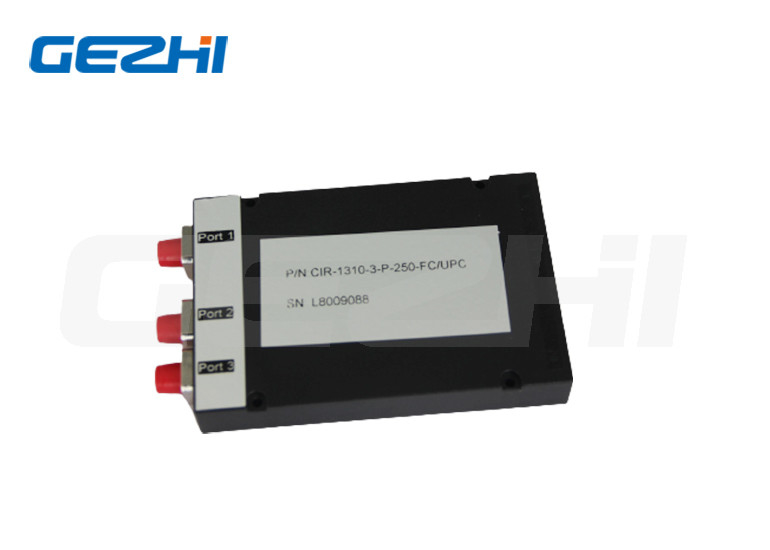

1310nm/1550nm With FC Flange Box Three Port Fiber Optical Circulator

Name: 1310nm/1550nm With FC Flange Box Three Port Fiber Optical Circulator
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: GZ-3P-Circulator
Price: 69.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	GZ-3P-Circulator
MOQ:	1pc
Price:	Negotiable
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Wavelength:

1310nm/1550nm

Port:

3 Port

Connector:

FC/UPC Or Customize

Fiber Length:

1m Or Customize

Fiber Type:

G657A1

Application:

Optical Amplifier

Packaging Details:

Paper box

Supply Ability:

100000Channel per month

Highlight:

1550nm Fiber Optical Circulator

Three Port Fiber Optical Circulator

FC Flange Box Optical Circulator

Product Description

Product Overview of 3 Port Optical Circulator

1310nm/1550nm with FC Flange box Three-Port Fiber Optical Circulator

Fiber Optical Circulator

The Optical Circulator is a compact , high performance light wave component that routes incoming signals from port 1 to port 2 , and port 2 to port 3 . The component provides high isolation , low insertion loss , high extinction ratio , and excellent environment stability.GEZHI Photonics 3port Optical Circulator is widely used in advanced communication systems and fiber-optical sensor systems.

Features & Applications of 3 Port Optical Circulator

Features:

Low PDL
Low Insertion Loss
Epoxy-free on optical path
Compact in-line Package
High stability and Reliability

Applications:

Optical Amplifier
Metro Area Network
Bi-Direcation Communication
Wavelength Add/Drop
Technical Paremeter
Dispersion Compensation

Specifications of 3 Port Optical Circulator

Parameter		P Grade
Configuration		Port 1 to Port 2 to Port 3
Operation Wavelength (nm)		1310±30 or 1550±30 or 1585±30
Isolation (dB)	Typical	0.6
	Maximum	0.8
Typical Isolation (dB)		≥50
Minimum Isolation (dB)		≥40
Cross Talk (dB)		≥50
Polarization Dependent Loss (dB)		<0.15
Polarization Mode Dispersion		<0.1
Return Loss(dB)		≥50
Power Handling (mW)		500
Opterating Temperature (℃)		-10~+75
Package dimension (mm)		Φ5.5xL50 or Φ5.5xL63

Test Environment

Odering Information of 3 Port Optical Circulator

XXX

Port

Configrition

Module type

Cable type

Fiber length

Input connector

Output

connector

G=Gezhi

P=PLC

102=1x2

104=1x4

108=1x8

116=1x16

132=1x32

164=1x64

204=2x4

208=2x8

216=2x16

232=2x32

264=2x64

BF=Bare Fiber

BL=Blockless

MO=Module

LG=LGX Box

RM=Rack Mount

CB=Cassette Box

XX=Customized

00=none

09=900um

Loose tube

20=2.0mm

30=3.0mm

05=0.5m

10=1.0m

15=1.5m

30=3.0m

40=4.0m

50=5.0m

......

0=none

1=LC/UPC

2=LC/APC

3=SC/UPC

4=SC/APC

5=FC/UPC

6=FC/APC

7=LC/APC

X=Customized

0=none

1=LC/UPC

2=LC/APC

3=SC/UPC

4=SC/APC

5=FC/UPC

6=FC/APC

7=LC/APC

X=Customized

FAQ

Q1:Can I have a sample order? What is your MOQ of 3 port fiber optical circulator?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.

Q2: What's the Lead time?

A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.

Q3: What are the payment terms of 3 port fiber optical circulator?

A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.

Q4: What is your warranty time of 3 port fiber optical circulator?

A4: 3 years' warranty.

Q5: Could I use our own logo, label and package?

A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
