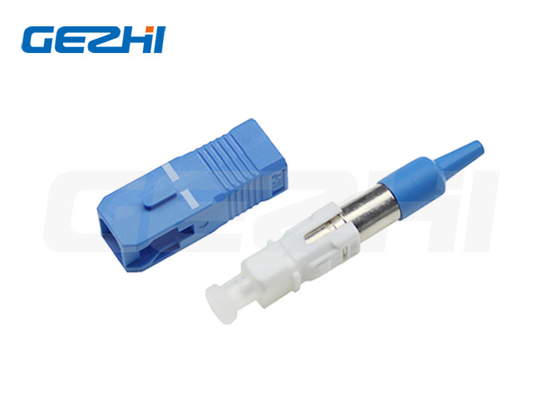

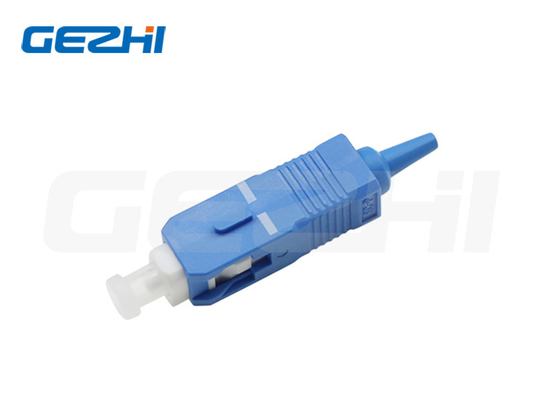

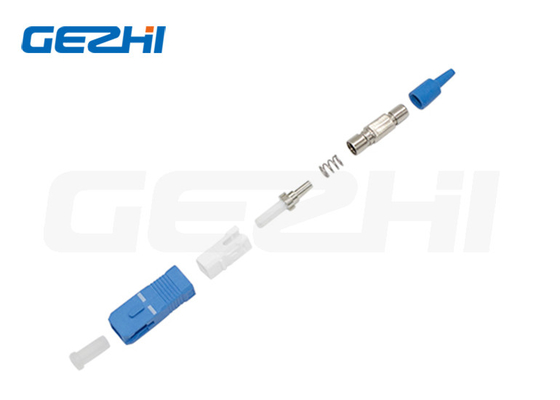

SC/UPC 0.9mm Fiber Connector for Test Equipment

Large Image : SC/UPC 0.9mm Fiber Connector for Test Equipment

Product Details:

Place of Origin:	China
Brand Name:	GEZHI or OEM
Certification:	CE RoHS,ISO9001
Model Number:	GZ-SC-Connector

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	Negotiable
Packaging Details:	Paper box
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union
Supply Ability:	100000Channel per month

Contact Now

Detailed Product Description

Fiber Count:	Simplex	Fiber Mode:	Singlemode Or Multimode
Polish Type:	UPC	Cable Diameter:	0.9mm
Warranty:	3 Years	Application:	CATV System
High Light:	0.9mm Fiber Connector , SC UPC Fiber Connector , CATV System Fiber Connector

Product Overview of SC Fiber Connector

SC/UPC 0.9mm Fiber Connector for Test Equipment

Fiber Connector

GEZHI Photonics produce various of kinds of Single Mode and Multi-mode fiber optic connectors for ST, SC, FC, LC, E2000, MPO, MU and MTRJ applications. Both pre-assembled connector and connector kits are available. Each fiber optic connector is functionally tested before shipping.

Applications of SC Fiber Connector

*Data Processing Networks
*Premise Installations
*Wide Area Networks (WANs)
*Test Equipment
*Telecommunication Networks
*Local Area Networks (LANs)
*CATV System

Specifications of SC Fiber Connector

Parameter	SC 0.9mm Connector
	SM			MM
	PC	UPC	APC	PC
Insertion loss	≤0.25dB	≤0.25dB	≤0.25dB	≤0.25dB
Return loss	≥50dB	≥55dB	≥60dB	/
Operating wavelength	1310nm, 1550nm			850nm, 1300nm
Ferrule Concentricity	≤1um			≤4um

Dimension of SC Fiber Connector

Test Environment

FAQ

Q1:Can I have a sample order? What is your MOQ of SC Fiber Connector?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.

Q2: What's the Lead time?

A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.

Q3: What are the payment terms of SC Fiber Connector?

A3: Payment term: T/T, Paypal, Western union,cash payment, Alibaba etc.

Q4: What is your warranty time of SC Fiber Connector?

A4: 3 years' warranty.

Q5: Could I use our own logo, label and package?

A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
