| Brand Name: | GEZHI or OEM |
| Model Number: | 1x8 Steel Type Fiber Optic PLC Splitter |
| MOQ: | 1pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |

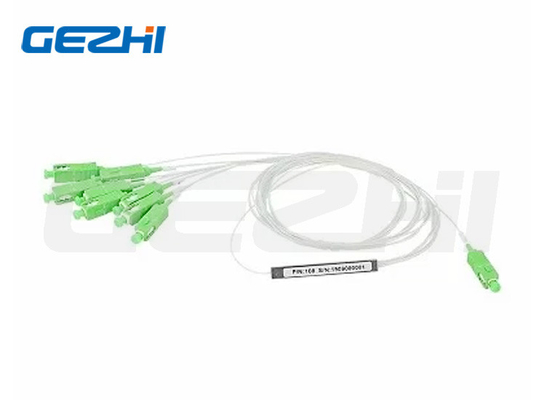

1x8 10.3dB loss SC/APC G657A1 Steel Type Fiber Optic PLC Splitter (60*7*4mm) in FTTx
1*8 steel type PLC splitter description
GZ-PLC-1*8-0.9ST-SA-SA is 1*8 SC/APC G657A1 PLC Splitter with steel tube(60*7*4mm).
As we know, Planar Lightwave Circuit(PLC) Splitter is a kind of power splitter based on the integrated quartz baseplate. Single Mode PLC 1×N and 2×N Splitter divide uniformly optical signals from one or two inputs to multiple outputs, and spliter can be operated in reverse direction to combine multiple signals into one fiber or two fibers.
1*8 steel type PLC splitter Specification
| Item | Parameter |
| Operating Wavelength(nm) | 1260 ~ 1650 |
| Type(1*N) | 1*8 |
| RN size | 60*7*4mm |
| Fiber Type | G657A1 (fiber loss more than 0.2 dB in a circular banding 20mm in diameter) |
| Cable diameter | 0.9mm loose tube |
| Input and Output Length | 1.5M |
| Insertion Loss | <10.3dB |
| Return Loss | >55dB |
| Uniformity Loss | <0.7 dB |
| PDL | 0.3dB |
| Directivity | >55dB |
| Operating Temperature(℃) | -40~+85 |
| Storage Temperature(℃) | -40~+85 |
Noted:
All measurement are made at room temperature, and connectors not included
1*8 steel type PLC splitter Features
Broadband Operation Wavelength
Low Insertion loss
Low PDL
Compact Design
Good channel-to-channel uniformity
High Reliability and Stability
1*8 steel type PLC splitter Applications
Telecommunication sector
PON Syster
FTTH
CATV
Video Transmission
PLC splitter Odering informations
| GZ-PLC-M*N(01)-0203-04-05-06 | ||||
| 01.Port configuration: | 02.Housing type: | 03.Fiber cable diameter: | 04&05. Input and output connector type | 06.Fiber Input / Output length (m) |
| 1*2 | ST:steel type | 0.25mm | SA:SC/APC; SU:SC/UPC | 0.5 |
| 1*4 | ABS | 0.9mm | LA:LC/APC; LU:LC/UPC | 1 |
| ... | LGX | 2.0mm | FA:FC/APC; FU:FC/UPC | 1.5 |
| 1*64 | RM:rackmount | 3.0mm | STA:ST/APC; STU:ST/UPC | 2 |
| 2*2 | ||||
| ... | ||||
| 2*64 | ||||
|
|
