| Brand Name: | GEZHI or OEM |
| Model Number: | GZ-PLC-2*8-0.9ST-LA-LA |
| MOQ: | 1pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |

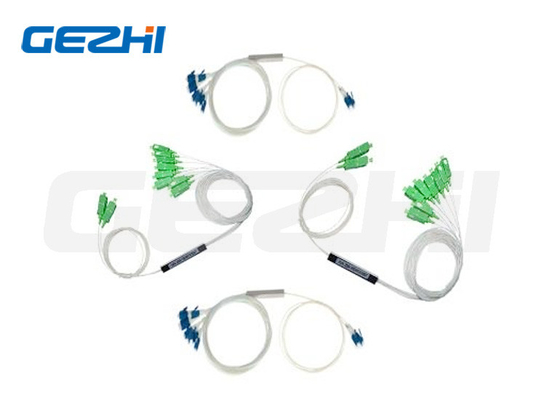

2X8 LC Singlemode 0.9mm G657A1 Steel Type Fiber Optic PLC Splitter In FTTx
2*8 LC steel type PLC splitter description
2*8 LC steel type PLC splitter, the input is 2pcs LC/APC, output is 8pcs LC/APC, the length is 1M.
PLC splitter is used to achieve the split and combined light wave energy. It distributes the optical energy transmitted by one fiber to two or more fibers in a predetermined proportion, or combines the optical energy transmitted by many fibers into one fiber.
Uniformity, directivity and polarization loss of PDL are also parameters that affect the performance of optical splitter.
2*8 LC steel type PLC splitter Features
Up to 1 x 64 split
Low insertion loss
Low PDL, WDL and TDL
Wide operating wavelengths
Available standalone, boxed, panel-loaded or LGX
All connectors available or without connectors as bare fibre
Compact design with good channel-to-channel uniformity
2*8 LC steel type PLC splitter Applications
Date Center
FTTH & FTTx
Telecommunication sector
PON System
CATV
Video Transmission
2*8 LC steel type PLC splitter Specification
| Item | Parameter |
| Part No. | GZ-PLC-2*8-0.9ST-LA-LA |
| Operating Wavelength(nm) | 1260 ~ 1650 |
| Type(1*N) | 2*8 |
| RN size | 60*7*4mm |
| Fiber Type | G657A1 (fiber loss more than 0.2 dB in a circular banding 20mm in diameter) |
| Cable diameter | 0.9mm loose tube |
| Input and Output Length | 1.5M |
| Insertion Loss | <10.6dB |
| Return Loss | >55dB |
| Uniformity Loss | <0.7 dB |
| PDL | 0.3dB |
| Directivity | >55dB |
| Operating Temperature(℃) | -40~+85 |
| Storage Temperature(℃) | -40~+85 |
Noted:
All measurement are made at room temperature, and connectors not included
PLC splitter Odering informations
| GZ-PLC-M*N(01)-0203-04-05-06 | ||||
| 01.Port configuration: | 02.Housing type: | 03.Fiber cable diameter: | 04&05. Input and output connector type | 06.Fiber Input / Output length (m) |
| 1*2 | ST:steel type | 0.25mm | SA:SC/APC; SU:SC/UPC | 0.5 |
| 1*4 | ABS | 0.9mm | LA:LC/APC; LU:LC/UPC | 1 |
| ... | LGX | 2.0mm | FA:FC/APC; FU:FC/UPC | 1.5 |
| 1*64 | RM:rackmount | 3.0mm | STA:ST/APC; STU:ST/UPC | 2 |
| 2*2 | ||||
| ... | ||||
| 2*64 | ||||
|
|
