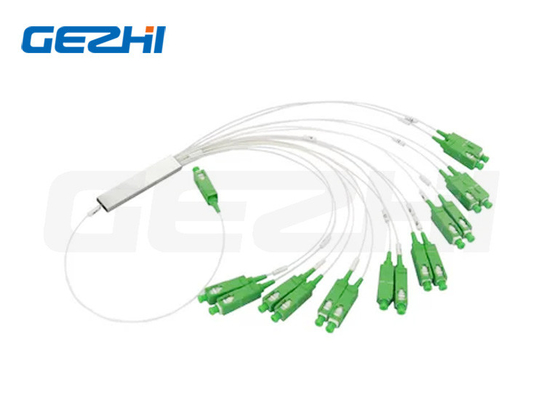

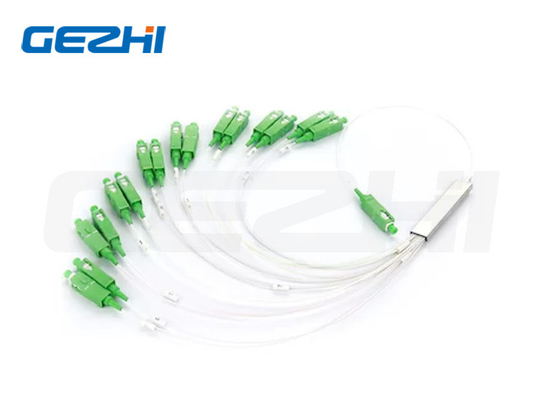

1x16 SC Green Connector Low Insertion Loss 0.9mm Mini Tube PLC Splitter for FTTH and PON Systems

Name: 1x16 SC Green Connector Low Insertion Loss 0.9mm Mini Tube PLC Splitter for FTTH and PON Systems
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: 1x16 Mini PLC Splitter
Price: 88.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	1x16 Mini PLC Splitter
MOQ:	1pc
Price:	US$59-US$118
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Connector:

SC UPC

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

Low Insertion Loss PLC Splitter

0.9mm Mini Tube PLC Splitter

1x16 SC Green Connector

Product Description

1x16 SC Green Connector Low Insertion Loss 0.9mm Mini Tube PLC Splitter

Product Overview

1x16 SC Green Connector Low Insertion Loss 0.9mm Mini Tube PLC Splitter

Fiber Optic PLC Splitter Introduction

Optical fiber splitters are widely used in optical fiber communication systems, radio and television networks, and other fields.

Optical splitter products require high environmental standards, manufactured in dust-free, constant temperature, constant humidity environments. All products undergo a 48-hour cycle of high and low temperature (-40 to 85°C) testing to ensure product stability in harsh natural environments.

According to operating principle, optical dividers can be divided into two types: fusion taper type and planar waveguide type.

Applications

Telecommunication sector
Video Transmission
FTTH (Fiber To The Home)
CATV
PON System

Features

Broadband Operation Wavelength
Low Insertion Loss
Low PDL (Polarization Dependent Loss)
Compact Design
High Reliability and Stability
Good channel-to-channel uniformity

Technical Parameters - 1×N PLC Splitter

Measured at room temperature and excludes connector loss

Type	1×2	1×4	1×8	1×16	1×32
Fiber Type	ITU-T G657A1, G657A2 and G.652D
Operating Wavelength (nm)	1260~1650
Insertion Loss (dB) Typical	3.6	6.8	10.0	13.0	16.0
Insertion Loss (dB) (P/S) Max	3.8/4.0	7.1/7.3	10.2/10.5	13.5/13.7	16.5/16.8
Loss Uniformity (dB) Max	0.6	0.6	0.8	1.2	1.5
Polarization Dependent Loss (dB) Max	0.15	0.15	0.25	0.3	0.3
Directivity (dB) Min	55
Return Loss (dB) Min	UPC:50 APC:55
Operating Temperature (°C)	-40~85
Storage Temperature (°C)	-40~85

Technical Parameters - 2×N PLC Splitter

Measured at room temperature and excludes connector loss

Type	2×2	2×4	2×8	2×16	2×32	2×64
Fiber Type	ITU-T G657A1, G657A2 and G.652D
Operating Wavelength (nm)	1260~1650
Insertion Loss (dB) Typical	4.0	7.0	10.5	13.5	16.5	20.5
Insertion Loss (dB) (P/S) Max	4.1/4.3	7.4/7.6	10.8/11.0	14.3/14.5	17.3/17.5	20.7/21.5
Loss Uniformity (dB) Max	0.8	0.8	1.5	2.0	2.5	2.5
Polarization Dependent Loss (dB) Max	0.2	0.2	0.3	0.4	0.4	0.4
Directivity (dB) Min	55
Return Loss (dB) Min	UPC:50 APC:55
Operating Temperature (°C)	-40~85
Storage Temperature (°C)	-40~85

How to Order

Connector type: SC / FC / LC / ST / E2000
Mode type: single mode UPC and APC
Cable diameter: 0.9 / 2.0 / 3.0 mm
Packing type: mini steel tube / ABS box
Fiber count: 1xN, 2xN (1x2, 1x4, 2x2, 2x4, etc.)
