Created with Pixso. 1x4 1x8 1x16 Fiber Optic PLC Splitter for FTTH FTTx FTTB Network with 1260-1650nm Wavelength
1x4 1x8 1x16 Fiber Optic PLC Splitter for FTTH FTTx FTTB Network with 1260-1650nm Wavelength
  • name
  • name
  • name
  • name

1x4 1x8 1x16 Fiber Optic PLC Splitter for FTTH FTTx FTTB Network with 1260-1650nm Wavelength

Brand Name: GEZHI or OEM
Model Number: PLC Splitter
MOQ: 1pc
Price: US$59-US$118
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Splitter Type:
1X2 1X4 1X8 1X16 1X32 1X64 1X128
Packaging Details:
Paper box
Supply Ability:
5000pcs per month
Highlight:

1x16 Fiber Optic PLC Splitter

,

Fiber Optic PLC Splitter For FTTH

,

Fiber Optic PLC Splitter For FTTB

Product Description
1x4 1x8 1x16 Fiber Optic PLC Splitter For FTTH FTTx FTTB Network
Product Overview

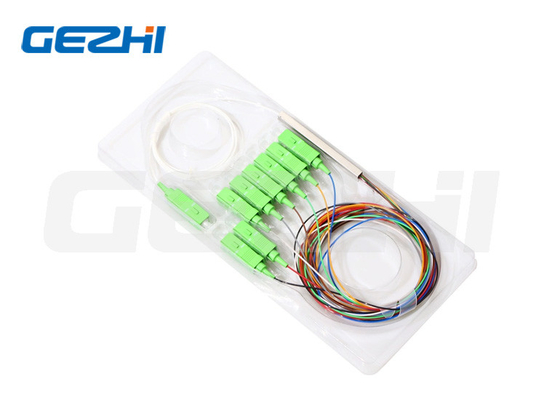

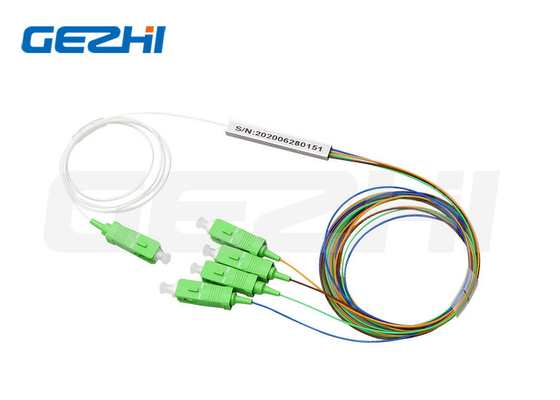

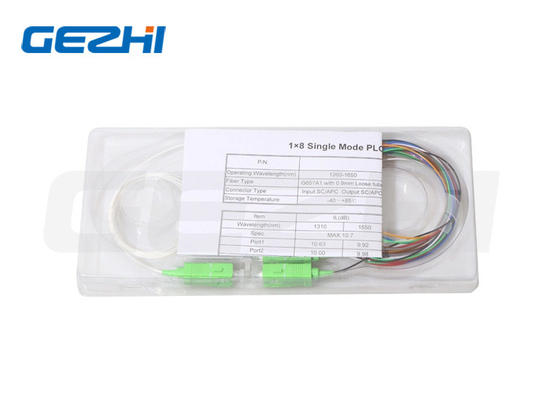

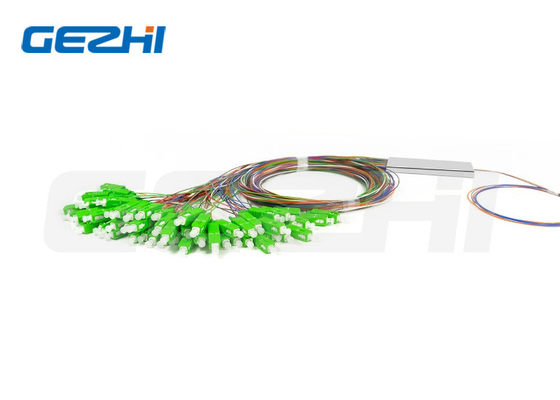

FTTH 1x4 1x8 1x16 fiber optic PLC splitter with connector

Planar waveguide light optical distributor (PLC Splitter) is a planar waveguide integrated optical device that can preserve and distribute light power across a wide wavelength range of 1260nm to 1650nm. This wavelength range covers the three wavelengths used in EPON technology: 1310nm, 1490nm, and 1550nm. Particularly suitable for EPON Ethernet passive optical network access technology FTTP fiber network systems and broadband passive optical distributor (POS) applications.

1x4 1x8 1x16 Fiber Optic PLC Splitter for FTTH FTTx FTTB Network with 1260-1650nm Wavelength 0
Applications
  • FTTx Systems
  • Digital, hybrid and AM-Video systems
  • LAN, WAN and Metro Networks
  • CATV systems
  • Other applications in fiber optic systems
Features
  • Low Insertion loss and Low PDL
  • Uniform power splitting
  • High reliability
  • Excellent environmental stability
  • Compact size and various package options
1x4 1x8 1x16 Fiber Optic PLC Splitter for FTTH FTTx FTTB Network with 1260-1650nm Wavelength 1 1x4 1x8 1x16 Fiber Optic PLC Splitter for FTTH FTTx FTTB Network with 1260-1650nm Wavelength 2
Product Specifications
Parameter/Type Nx2 (N=1 or 2) Nx4 (N=1 or 2) Nx8 (N=1 or 2) Nx16 (N=1 or 2) Nx32 (N=1 or 2) Nx64 (N=1 or 2)
Fiber 9/125 um SMF-28e or customer appointed
Operating Wavelength (nm) 1260~1650 (nm)
Insertion Loss ≤3.9dB ≤7.1dB ≤10.3dB ≤13.3dB ≤16.3dB ≤19.8dB
Loss Uniformity (dB) ≤0.6dB ≤0.6dB ≤0.8dB ≤1.2dB ≤1.5dB ≤2.0dB
Polarization Dependent Loss ≤0.15dB ≤0.15dB ≤0.2dB ≤0.2dB ≤0.2dB ≤0.3dB
Return Loss UPC ≥50dB APC ≥60dB
Directivity ≥55dB
Working Temperature (°C) -40°C to +85°C
