Good price online

products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Fiber Optic Passive Components
Created with Pixso. 3U 19" Rack Mount 1x2 LGX PLC Splitter Patch Panel with Aluminum/Cold-roll Steel Chassis
3U 19

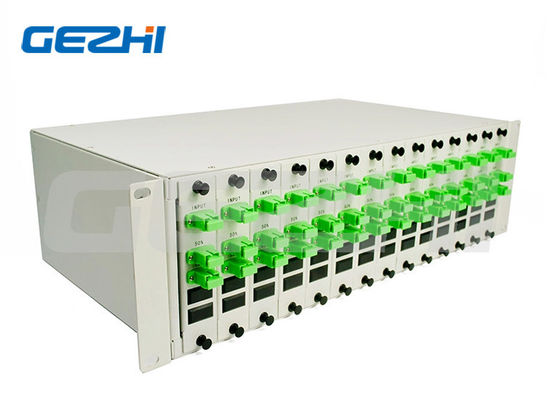

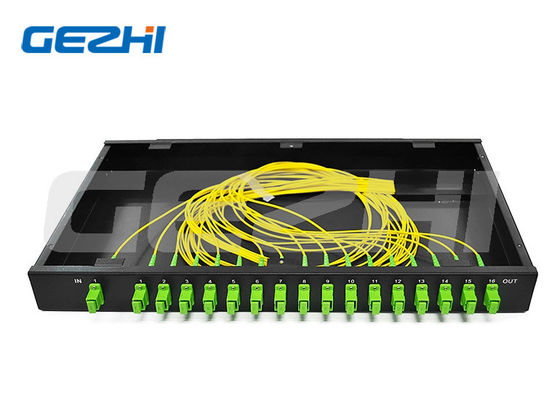

  • name
  • name
  • name
  • name
  • name
  • name

3U 19" Rack Mount 1x2 LGX PLC Splitter Patch Panel with Aluminum/Cold-roll Steel Chassis

Brand Name: GEZHI or OEM
Model Number: Terminal box, LGX splitter patch panel
MOQ: 1pc
Price: US$59-US$118
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Material:
Aluminum/Cold-roll Steel
Packaging Details:
Paper box
Supply Ability:
5000pcs per month
Highlight:

1x2 PLC Splitter Patch Panel

,

LGX PLC Splitter Patch Panel

Product Description
3U 19" Fiber Optical 1x2 LGX PLC Splitter Patch Panel Rack Mount Chassis
Product Overview

3U 19" Fiber Optical 1x2 LGX PLC Splitter Patch Panel / Rack Mount Chassis

Planar waveguide light optical distributor (PLC Splitter) is a planar waveguide integrated optical device that can preserve and distribute light power across a wide wavelength range of 1260nm to 1650nm. This wavelength range covers the three wavelengths used in EPON technology: 1310nm, 1490nm, and 1550nm. This product is particularly suitable for EPON Ethernet passive optical network access technology and FTTP fiber network systems, making it ideal for broadband passive optical distributor (POS) applications.

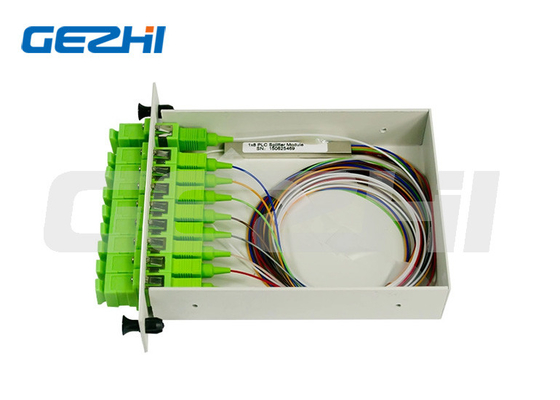

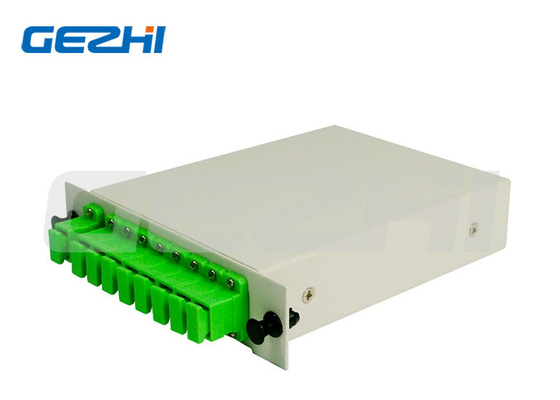

3U 19" Rack Mount 1x2 LGX PLC Splitter Patch Panel with Aluminum/Cold-roll Steel Chassis 0
Applications
  • FTTx Systems
  • Digital, hybrid and AM-Video systems
  • LAN, WAN and Metro Networks
  • CATV systems
  • Other applications in fiber optic systems
Features
  • Low Insertion loss and Low PDL
  • Uniform power splitting
  • High reliability
  • Excellent environmental stability
  • Compact size and various package options
Product Specifications
Parameter/Type Nx2 (N=1 or 2) Nx4 (N=1 or 2) Nx8 (N=1 or 2) Nx16 (N=1 or 2) Nx32 (N=1 or 2) Nx64 (N=1 or 2)
Fiber 9/125 um SMF-28e or customer appointed
Operating Wavelength (nm) 1260~1650 (nm)
Insertion Loss ≤3.9dB ≤7.1dB ≤10.3dB ≤13.3dB ≤16.3dB ≤19.8dB
Loss Uniformity (dB) ≤0.6dB ≤0.6dB ≤0.8dB ≤1.2dB ≤1.5dB ≤2.0dB
Polarization Dependent Loss ≤0.15dB ≤0.15dB ≤0.2dB ≤0.2dB ≤0.2dB ≤0.3dB
Return Loss UPC≥50dB APC≥60dB
Directivity ≥55dB
Working Temperature (°C) -40°C to +85°C

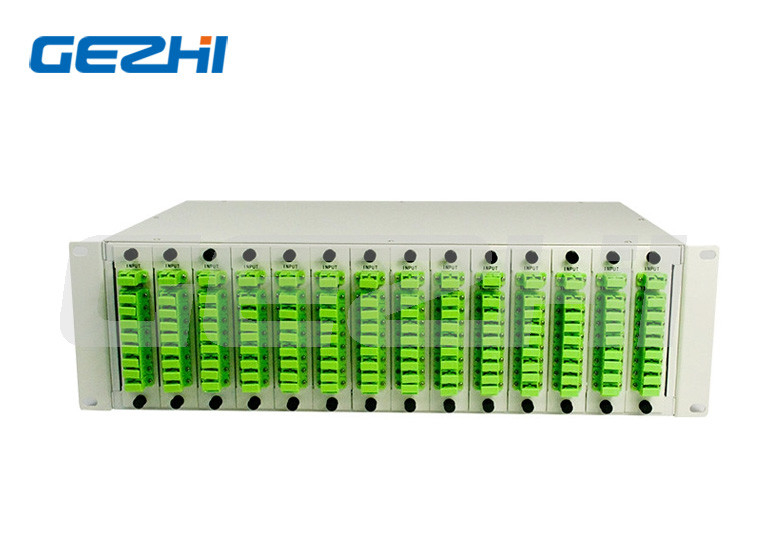

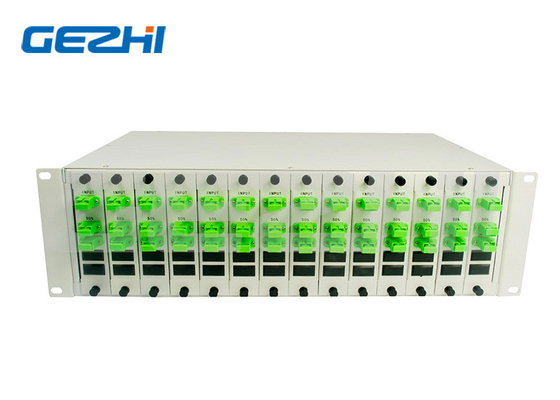

3U 19" Rack Mount 1x2 LGX PLC Splitter Patch Panel with Aluminum/Cold-roll Steel Chassis 1 3U 19" Rack Mount 1x2 LGX PLC Splitter Patch Panel with Aluminum/Cold-roll Steel Chassis 2
Tags:

1x8 Coarse WDM

Bidirectional CWDM

1x3 Passive CWDM

Related Products
Low Insertion Loss 4 Port Fibre Optic Circulator for CATV System with High Isolation

Low Insertion Loss 4 Port Fibre Optic Circulator for CATV System with High Isolation

Get Best Price
Low Insertion Loss 3 Port Optical Circulator with High Channel Isolation and Compact Package

Low Insertion Loss 3 Port Optical Circulator with High Channel Isolation and Compact Package

Get Best Price
