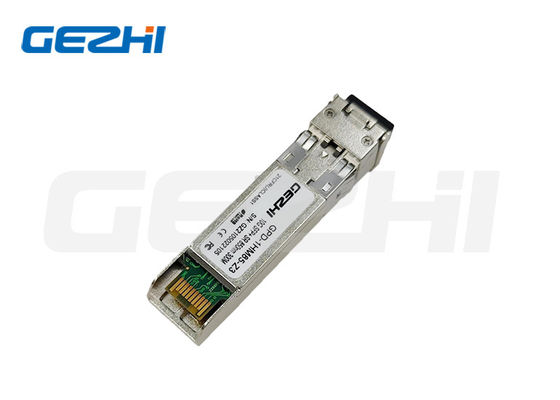

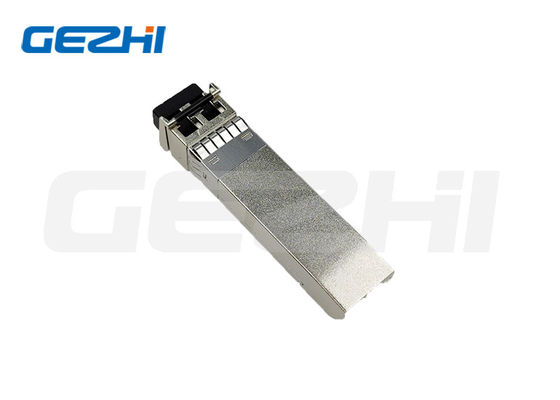

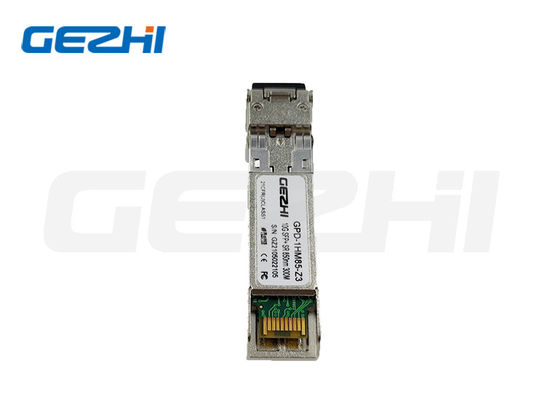

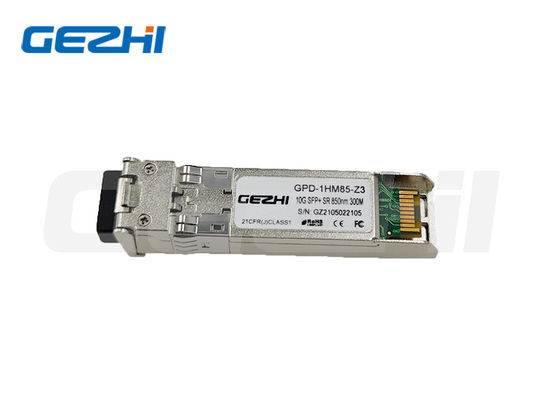

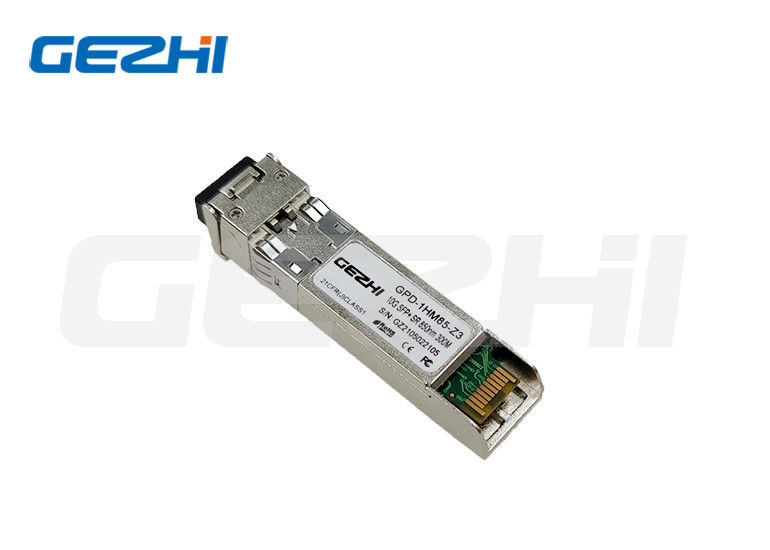

850nm 10G SFP+ Transceiver Module with 300m Transmission Distance for Multimode Fiber

Brand Name:	GEZHI or OEM
Model Number:	GZ-10-SR
MOQ:	1pc
Price:	Negotiable
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Wavelength:

850nm

Transmission Distance:

300m

Data Rate:

10.3Gbps

Power Supply:

3.3V

Power Dissipation:

< 1W

Operating Temperature:

0-70°C

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

10G SFP+ Transceiver 850nm

MMF 10G SFP+ Transceiver

300m 10G SFP+ Transceiver

Product Description

SFP-10G-SR Multimode fiber MMF 10G 850nm 300m SR SFP+ Transceiver

Product Description

SFP+ SR is specifically designed for the high performance integrated duplex data transmission over multi mode optical fiber.
This transceiver module is compliant with the Small Form-factor Pluggable Plus (SFP+) Multisource Agreement (SFF-8431 Rev4.1). This transceiver type is specifically optimized for transport of serial data at up to 10.3125 Gbps, with link characteristics complied with 10-Gigabit Ethernet 10GBASE-SR/SW base IEEE 802.3ae and 10G Fibre Channel.

Features
850nm VCSEL Transmitter
Data transfer rate: 10.3Gbps
Distance up to 300m
Single 3.3V Power supply and TTL Logic Interface
Duplex LC Connector
Compliant with MSA SFF-8431, IEEE 802.3ae
Power Dissipation: SFP+< 1W
Digital Diagnostic Monitoring Function
Operating Temperature: 0-70 Temp

Applications
10GBASE-SW/SR
10G Fiber Channel
Other Optical Link

10G SFP+ Transceiver

Part Number	Application	Data Rate	Wavelength	Distance	Connector Type
GZ-SFP-10G-SR	SFP+ 10GBASE-SR	10G	850nm	300m	LC
GZ-SFP-10G-LR	SFP+ 10GBASE-LR	10G	1310nm	10km	LC
GZ-SFP-10G-LRM	SFP+ 10GBASE-LRM	10G	1310nm	220m	LC
GZ-SFP-10G-ER	SFP+ 10GBASE-ER	10G	1550nm	40km	LC
GZ-SFP-10G-ZR	SFP+ 10GBASE-ZR	10G	1550nm	80km	LC

Drawing

850nm 10G SFP+ Transceiver Module with 300m Transmission Distance for Multimode Fiber

FAQ

Q1:Can I have a sample order? What is your MOQ?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 4days, For big quantity and special products. Please check lead time with our sales
representative. But we keep stock for some products, could ship 1-2 days after receiving payment.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.
Q4: What is your warranty time
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
