Product Details:
Payment & Shipping Terms:
|
| Return Loss: | > 55db,≥50dB,max.50dB (SC/UPC),≤-40dB,more Than 55db | Insertion Loss: | IL<0.2db,no More Than 0.3db,≤ 0.3dB,>5,≤0.2 DB |
|---|---|---|---|
| Color: | Blue,Customized,OEM | Application: | FTTH FTTB FTTX Network,CATV,to Make Patch Cord,Telecommunication |
| Material: | PVC,Plastic | ||
| High Light: | FTTX Network Fiber Optic Connector,CATV Fiber Optic Connector |
||

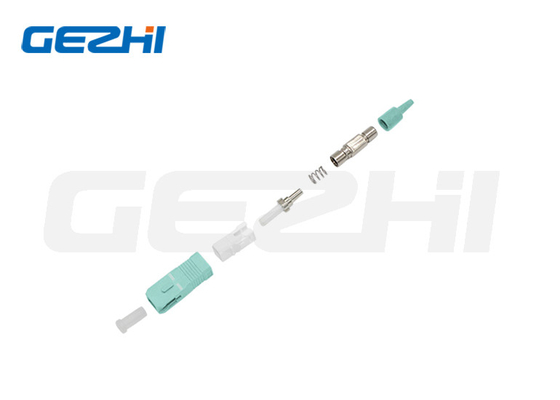

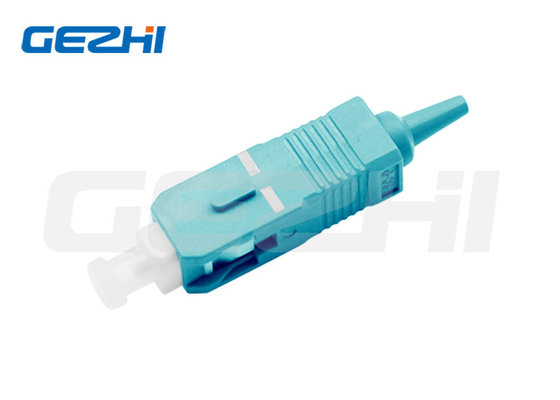

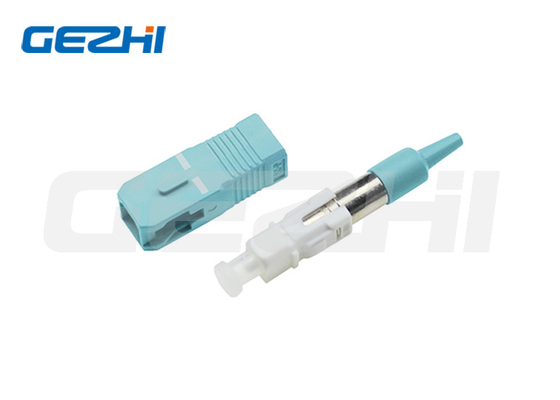

Multimedia Single Mode 0.9mm Fiber Optic Connector SC UPC APC OM3 2.0 3.0 Blue Green
Product representation of Fiber Optic Connector
Connectors are made of ceramic, metal, plastic, and so on. Each connector has a different color frame and tail sleeve for selection. Through solidification grinding and other processes, optical fiber connectors are used to make jumpers or tail fibers with various types of optical cables. They are widely used in communication rooms, home-to-home optical fibers, local area networks, optical fiber sensors, optical fiber communication systems, optical fiber connection transmission equipment, national defense preparedness, and so on.
Product Details of Fiber Optic Connector
| Parameter | Unit | SM | MM | ||
| PC | UPC | APC | PC | ||
| Insertion Loss (Typical) | dB | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 |
| Operating Wavelength | nm | 1310, 1510 | 850 | ||
| Exchangeability | dB | ≤0.2 | |||
| Vibration | dB | ≤0.2 | |||
| Operating Temperature | °C | -40~+75 | |||
| Storage Temperature | °C | -45~+85 | |||
| Boot color | black,red,green,white,yellow,gray,blue | ||||
| Fiber Connector | FC,SC,ST,LC,MU,MPO,MTRJ | ||||

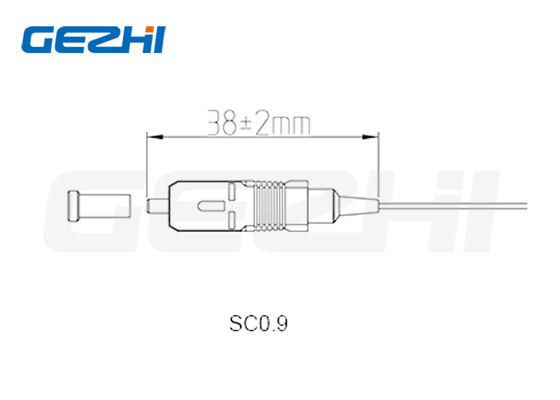

| Cable Diameter | mm | φ 3.0, φ 2.0,φ 0.9 | |||
| Ferrule | Ferrule concentricity: SM<1um MM<4um | ||||
| Ferrule inner diameter: SM: 125um MM: 126-130um | |||||
| Ferrule outer diameter: FC SC ST: 250um LC MU: 125um | |||||
Features of Fiber Optic Connector
1. Low insertion loss, high return loss
2. Excellent Temperature stability
3. Good repeatability and exchangeability
4. Excellent mechanical endurance
5. Strict curing time and temperature control
6. Strict testing standards and methods for quality
7. Environment protection (ROHS Compliance)
8. The fiber optic patch cord can be customized according to customers specific requirements (Customized Connector/Length/package...)
9. 100% NEW raw material and well quality control ensure the best lifetime.
Applications of Fiber Optic Connectors
1. CATV
2. Telecom Network
3. Metro
4. Multimedia
5. Data processing
6. Premise installation
7. Gigabit Ethernet
FAQ
Q1: Are you a manufacturer?
A: Yes, we are a manufacturer who has own factories and welcome to visit!
Q2: What is your MOQ?
A: We are the factory. No MOQ, One piece is available.
Q3:Can you provide the OEM service?
A: Sure, we have the complete production line, we could do the production as your request.
Q4. Can I have a sample order for this product?
A: Yes, for patchcord, FREE SAMPLE is avaible to test and check quality. Mixed samples are acceptable.
Q5: How long is your delivery time?
A: Generally it is 2-5days if the goods are in stock. or it is 7-15 days if the goods are out of stock. The lead time mainly depends on quantity.
Q6: Can I negotiate the prices?
A:Yes, special discounts are available. The more quantities, the cheaper prices.
Q7: How much will the shipping charges be?
A:It depends on the size of your shipment and the method of shipping. We will offer the charge to you as per you requested.Any more questions upon our products, and our company? please feel free to contact us at any time.
