Product Details:
Payment & Shipping Terms:
|
| Fiber Connector: | SC/APC | Ferrule Type: | Zirconia Ceramic |
|---|---|---|---|
| Connector Gender: | Fixed Male To Female | Transfer Mode: | Singlemode |
| Attenuation: | 1dB 3dB 5dB 6dB 7dB 10dB 15dB 20dB 25dB | Operating Wavelength(nm): | 1260~1620(SM) |
| Attenuation Accuracy: | ±0.5dB | Return Loss: | ≥60dB |
| Polarization Dependent Loss: | ≤0.2dB | Humidity: | 95%RH |
| Operating Temperature Range: | -40~85°C | Storage Temperature Range: | 40~85°C |
| High Light: | SC APC Fiber Optical Attenuator,Plug Type SC APC Optical Attenuator,30dB SC APC Attenuator |
||

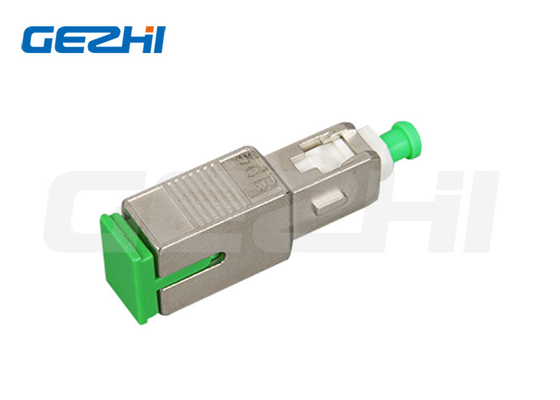

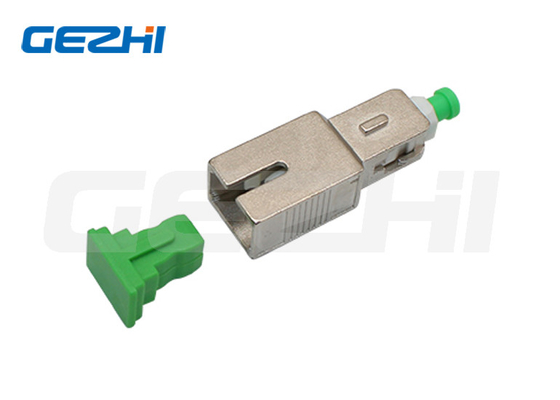

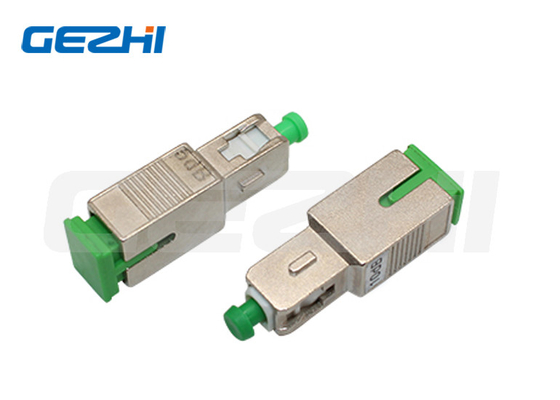

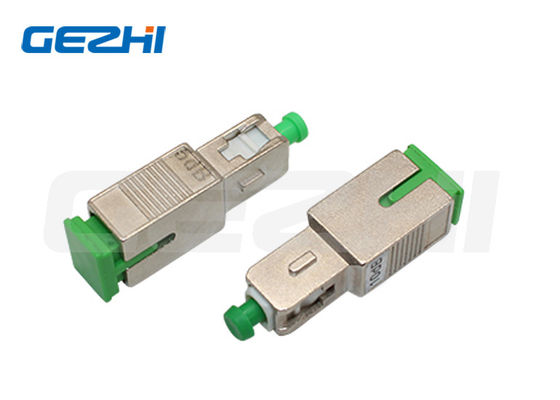

Fiber Optical Attenuator,1dB To 30dB SC APC Fiber Optical Attenuator Male To Female Plug Type
Description of optic fiber attenuator
Fiber Optic Attenuator is one kind of optical passive device which is used to debug the performance of the optical power in the optical communication system,debugging fiber optic instrument calibration correction, optical signal attenuation.And used for the attenuation of the input optical power, avoid optical receiver distortion due to input optical power powerful. The fixed fiber optic attenuator can achieve the dual function of adapter and attenuators.
Parameters of optic fiber attenuator
| Product type | Coupler Attenuator Male to Female |
| Operation wavelength | SM: 1200 to 1600nm or 1310/1550nm |
| MM: 850nm, 1300nm | |
| Return Loss | ≥ 50 db (PC) |
| ≥ 55 db (UPC) | |
| ≥ 65 db (APC) | |
| Attenuation Accuracy | +/-0.5 db for 1 to 5db attenuation |
| +/-10% for 6 to 30db attenuation | |
| Polarization Dependent loss | ≤ 0.2db |
| Mechanical endurance | >1000 |
| Maximum optical Input power | 200MW |
| Operating Temp Range | -40 to + 80degree |
Features of optic fiber attenuator
(1)Low back reflection and Low PDL
(2)High precision attenuation value
(3)Precision control of attenuation range
(4)Wide attenuation range
(5)Precision ceramic ferrule
(6)FC, SC, ST, LC … optional
(7)Plastic or metal housing material
Application
(1)Fiber optical telecommunication system
(2)Fiber optical CATV
(3)Fiber optical sensor
(4)Testing equipment
