Product Details:
Payment & Shipping Terms:
|
| Fiber Connector: | FC/UPC | Storage Temperature Range: | -40~85°C |
|---|---|---|---|
| Operating Temperature Range: | -40~85°C | Humidity: | 95%RH |
| Polarization Dependent Loss: | ≤0.2dB | Return Loss: | ≥55dB |
| Attenuation Accuracy: | ±0.5dB | Operating Wavelength(nm): | 1260~1620(SM) |
| Attenuation: | 1dB 3dB 5dB 6dB 7dB 10dB 15dB 20dB 25dB | Transfer Mode: | Singlemode |
| Connector Gender: | Fixed Male To Female | Ferrule Type: | Zirconia Ceramic |
| High Light: | singlemode fiber attenuator fc,fc / upc single mode fiber attenuator,male female single mode fiber attenuator |
||

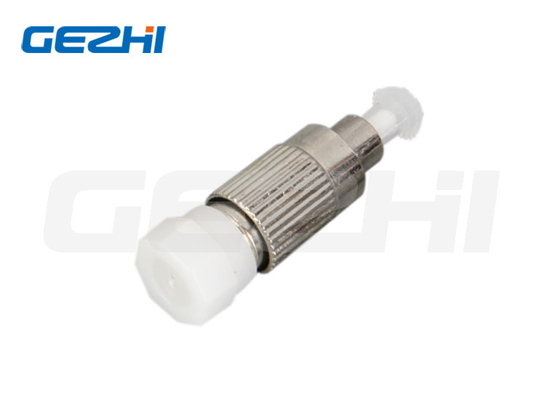

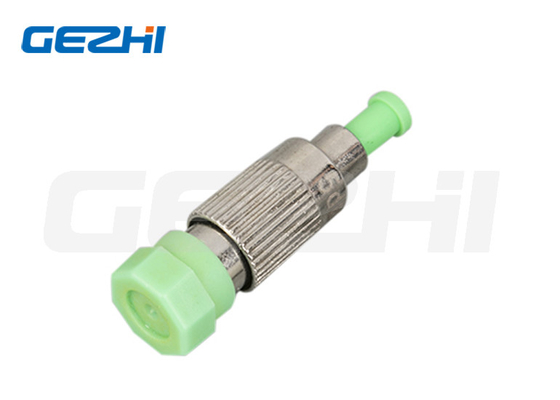

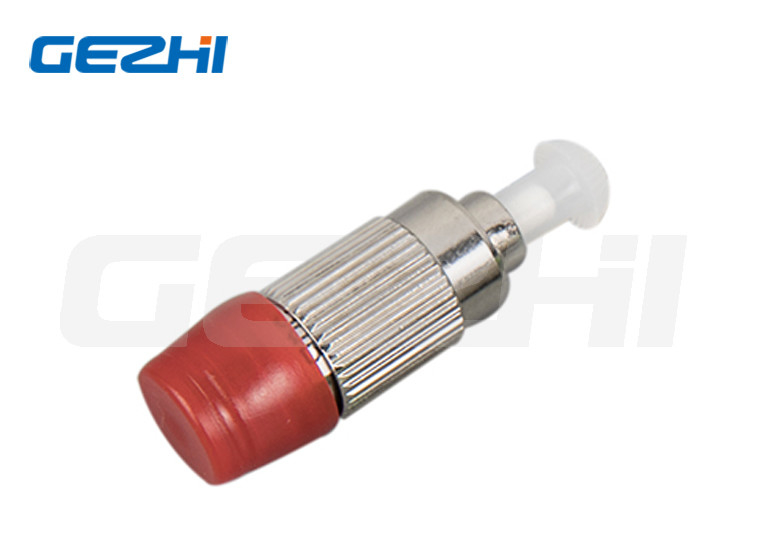

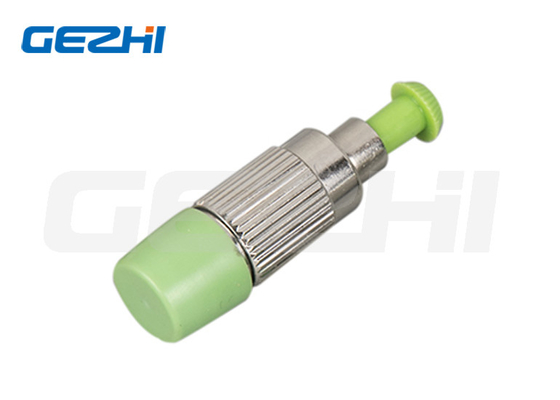

FC/UPC Singlemode Fixed Fiber Optic Attenuator, Male-Female Fiber Attenuator FC/UPC
Products Description
As optical passive devices, the attenuators are mainly used in fiber optic to debug optical power performance & optical instrument calibration correction & fiber signal attenuation to ensure the optical power in a stable and desired level in the link without any changes on its original transmission wave.
Feature
• Low insertion loss.
• High-precision ceramic sleeve and smooth inner hole.
• Good degree of concentricity and inner circle.
• Superior repeatability and changeability.
• Excellent anti-aging performance.
• Stable connectivity compatibility.
• Uniform insertion force and good consistency.
• Elaborately designed protection with dust cap and bag package
A Variety of Applications in Fiber Optic Communication Systems
Fiber optic attenuators are usually used to test the power level margins in a fiber optic communication system, and properly match transmitter and receiver optical signal levels.
Product Paramenters
