Good price online

products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Fiber Optic Accessories
Created with Pixso. Sc Upc Inline Optical Attenuator Female Male 0 - 25db Fiber Optic Accessories
Sc Upc Inline Optical Attenuator Female Male 0 - 25db Fiber Optic Accessories
  • name
  • name
  • name

Sc Upc Inline Optical Attenuator Female Male 0 - 25db Fiber Optic Accessories

Brand Name: GEZHI or OEM
Model Number: SC UPC Fiber Optical Attenuator
MOQ: 1pc
Price: Negotiable
Payment Terms: T/T, Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Name:
SC/UPC Female-Male Fiber Optical Attenuator
Attenuation Values:
0-25db
Attenuator Wavelength:
1310/1550
Operating Temperature:
-40°C~+75°C
Connector Type:
SC/UPC
Operating Wavelength(SM):
1310nm And 1550
Attenuator Mode:
In Line Type
Certification:
ISO, ISO9001
Packaging Details:
Paper box
Supply Ability:
5000pcs per month
Highlight:

sc upc fiber attenuator

,

25db fiber attenuator

,

inline 25db attenuator

Product Description

SC UPC Inline Optical Attenuator Female Male 0-25db Fiber Optic Accessories



Product introduction

Attenuator optic attenuator is a precise device that can provide different attenuation for needing.They are used in the transmit line of fiber.There are two kinds of attenuator,alterable and fixable .The attenuation form 1dB to 65dB.
Optic attenuator is a precise device that provide the attenuation form 1dB to 65dB.It is design under the international standard and accord with the standard of IEC.It is largely used in the area of optic communication.
Fixable attenuator can be adjusted in need of the project.It is used in many fiber transmissions.There are three kinds of these products,FC/SC/ST convertor,high return lossof FC/SC type,high return loss of online type.



Key Features

1.1dB to 25dB
2.ROHS, ISO9001,NTT,JIS,IEC,Bellcore
3.OEM/ODM



Application

1. Testing equipment
2. Fiber optical CATV
3. Fiber optical sensor
4. Fiber optical telecommunication system



Product specifications

arameter SM(9/125) MM(50/125,62.5/125)
Attenuation values 1dB to 20dB(1dB step),25dB,30dB 1dB to 25dB(1dB step)
attenuator Wavelength 1310nm & 1550nm 850nm &1300nm
Attenuation Tolerance (dB) 1-10dB<±1.0dB ( typical ) standard 2dB,5dB,10dB<±1.0dB(typical ) standard
11-25dB<±10% ( typical ) standard 15dB<±10% ( typical ) standard
1-10dB<±0.5dB ( typical ) premium 2dB,5dB,10dB<±0.5dB(typical ) premium
11-25dB<±5% ( typical ) premium 15dB<±5% ( typical ) premium
attenuator Return Loss PC ≥45 dB



/
UPC ≥55 dB
APC ≥65 dB
Attenuator mode Fixed type, male to female type, In-line type, Variable type
attenuator Operating Temperature -40°C~+75°C
attenuator Storage Temperature -40°C~+85°C



Pictures

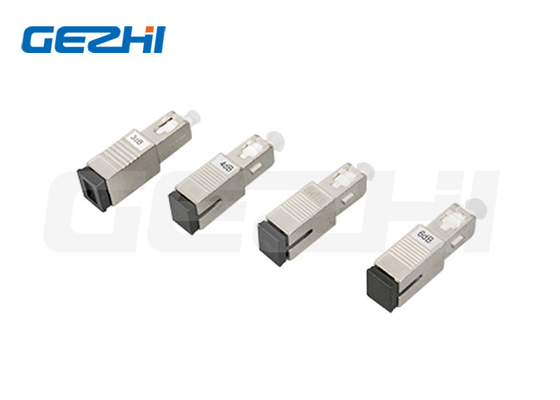

Sc Upc Inline Optical Attenuator Female Male 0 - 25db Fiber Optic Accessories 0

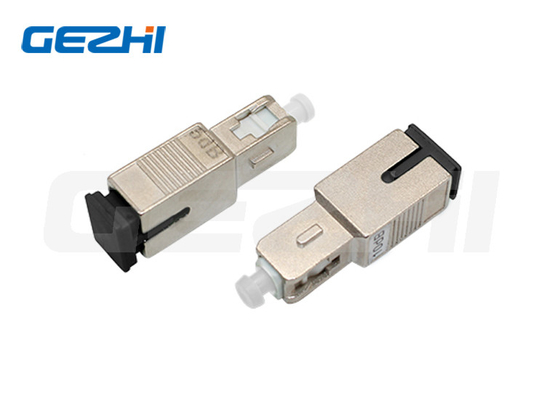

Sc Upc Inline Optical Attenuator Female Male 0 - 25db Fiber Optic Accessories 1

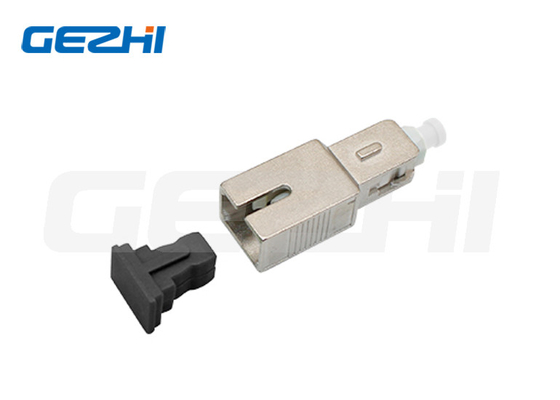

Sc Upc Inline Optical Attenuator Female Male 0 - 25db Fiber Optic Accessories 2

Sc Upc Inline Optical Attenuator Female Male 0 - 25db Fiber Optic Accessories 3
