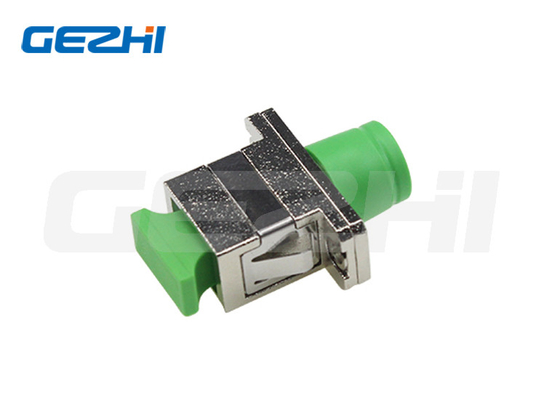

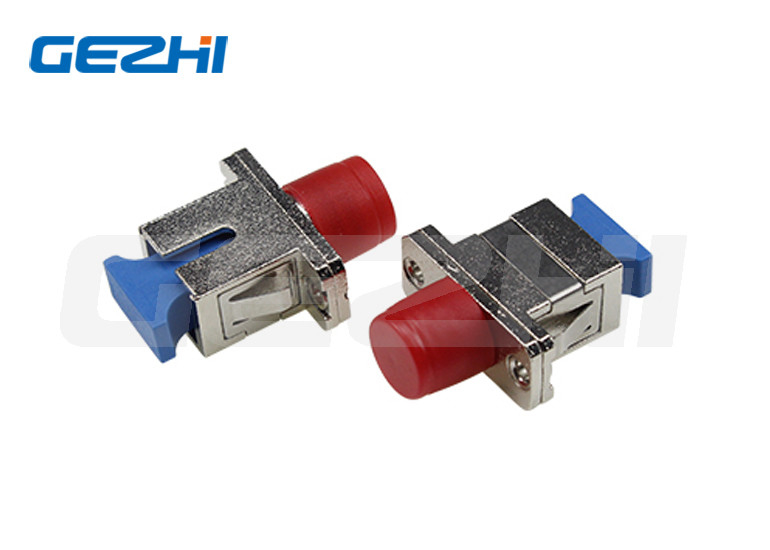

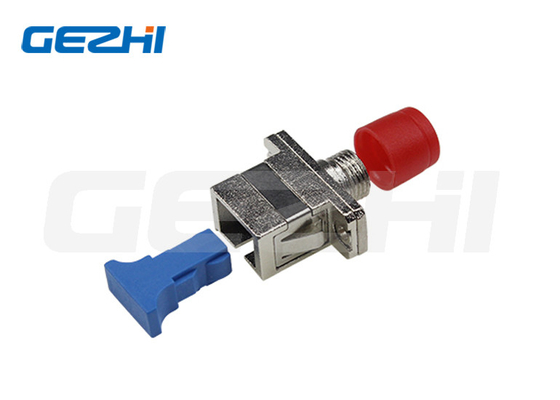

SC-FC-SM Hybrid Fiber Optic Adapter with Low Insertion Loss High-Quality Ceramic Sleeve for Wide Temperature Range Applications

Name: SC-FC-SM Hybrid Fiber Optic Adapter with Low Insertion Loss High-Quality Ceramic Sleeve for Wide Temperature Range Applications
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: SC-FC SX Hybrid Adapter
Price: 9.80 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	SC-FC SX Hybrid Adapter
MOQ:	1pc
Price:	US$0.8/PCS-US$20/PCS
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Connector Type:

SC-FC-SX

Body Style:

Simplex

Connector Polish:

PC/APC

Insertion Loss:

≤0.2dB

Working Temperature:

-40~85°C

Storage Temperature:

-40~85°C

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

fttx fiber adapter

catv fiber adapter

catv hybrid fiber optic adapter

Product Description

Sc-FC SM Hybrid Adaptor for Premium PLC Splitter with Excellent Performance Hybrid Adaptor

Products Description

The product can be used for conversion connections between various optical fiber connectors, can be used with a variety of materials to meet the different needs of different customers, the key structure of the adapter remains unchanged,effectively ensure its transmission stability, while the internal selection of 100% fully inspected high-quality ceramic sleeve (zirconia) to ensure extremely low insertion loss.

SC-FC-SM Hybrid Fiber Optic Adapter with Low Insertion Loss High-Quality Ceramic Sleeve for Wide Temperature Range Applications 0

Application

Telecommunication Networks
Local Area Networks (LANs)
Communication System
Premise Installations
Wide Area Networks (WANs)
Video Transmission
Connections Between Patchcords
FTTX, CATV
Connections Between Devices

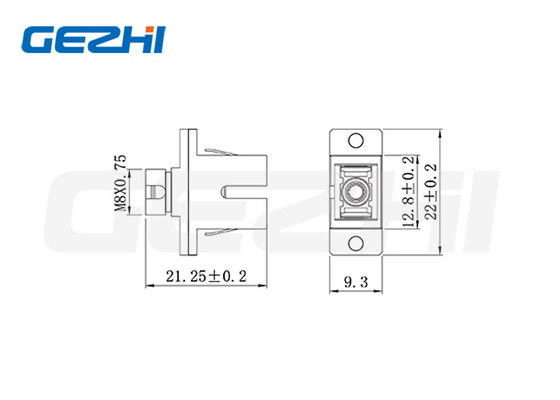

Specification

parameter	SC-FC Hybrid Adapter
	SM			MM
	PC	UPC	APC	PC
Insertion loss	≤0.2dB	≤0.2dB	≤0.2dB	≤0.2dB
Alternationg loss	≤0.2dB
Repeatability	≤0.2dB
Durability	The change of 1000 interpolation times is less than 0.2dB
<span font-size:16px;"="" style="box-sizing: border-box; margin: 0px; padding: 0px; list-style: none;">Working temperature	-40~85°C
Storage temperature	-40~85°C
