Product Details:
Payment & Shipping Terms:
|
| Onnector Type: | SC - ST | Package Size: | 46 X 33 X 23 CM:(5000PCS) |
|---|---|---|---|
| Insertion Loss: | < 0.2DB | Mateial: | Metal |
| Operation Temperature: | -40 ~+75 Degree | Sleeve Material: | Zirconia |
| Channels Number: | Simplex | ||
| High Light: | sc type fiber optic cable adapter,singlemode fiber optic cable adapter,st sc type adapter fiber optic |
||

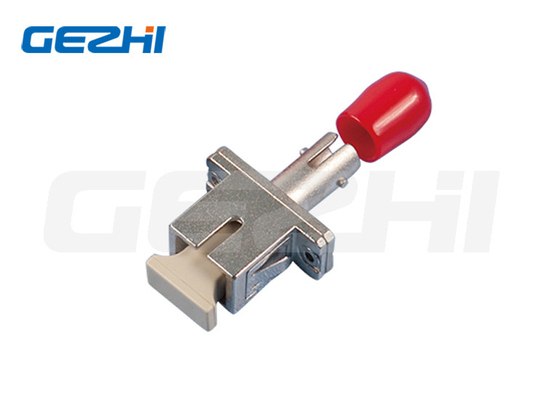

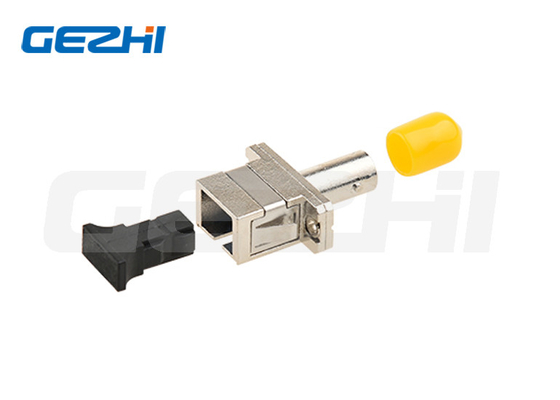

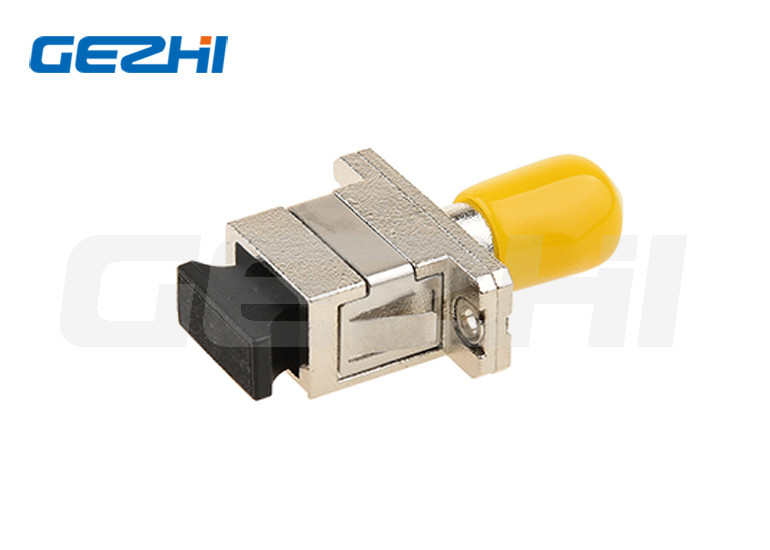

Hybrid SC ST Matel Fiber Optic Adapter Simplex Singlemode ST To SC Fiber Adapter
Product Description
Fiber optic adapters (also known as bulkheads) are used to join two fiber optic patch cables together.
They are available for use with either singlemode or multimode patch cables.
Feature
1, LC/SC/FC/ST Type Optional
2, SM or MM Optional
3, With/Without flange Optional
4, Simplex , Duplex or Quad Optional
5, Zirconia Sleeve ,Compact design
6, Low insertional loss, High return loss
7, Comply with IEC, Telcordia GR 326 and JIS standard
8, UPC or APC Optional
Application
CATV
Telecommunication networks
Test equipment
Local Area Networks(LANs)
Data processing networks
Parameter
| Item |
Unit |
LC,SC,FC,ST,MTRJ,MPO | |||
| SM | MM | ||||
| PC | UPC | APC | PC | ||
| Insertion Loss(Typical) | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 |
| Exchangeability | dB | ≤0.2 | |||
| Repeatability | dB | ≤0.2 | |||
| Durability | Time | >1000 | |||
| Operating Temperature | ℃ | -40~75 | |||
| Storage Temperature | ℃ | -40~85 | |||
