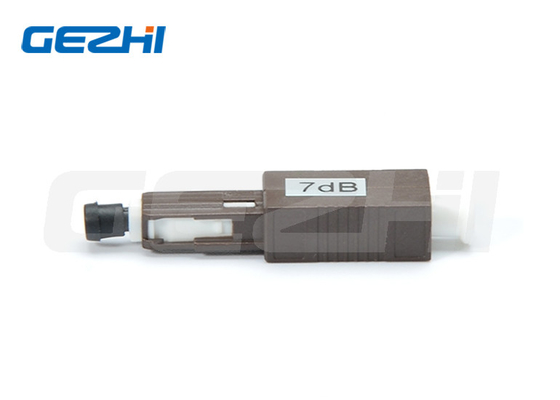

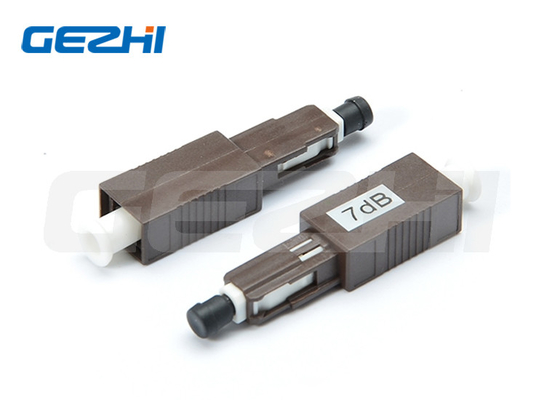

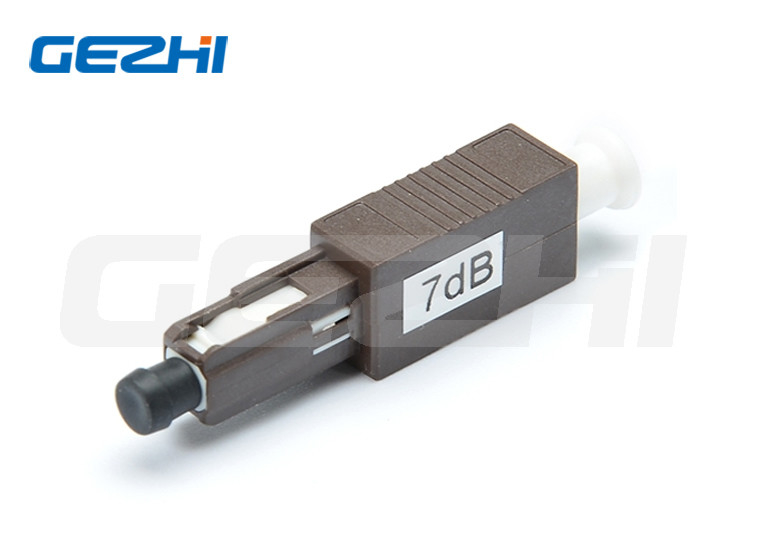

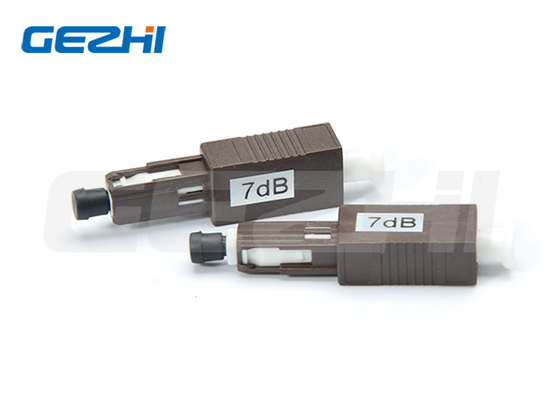

Customized MU/UPC Single Mode Fiber Optic Attenuator with 1260~1620nm Wavelength and 1~25dB Attenuation Featuring Zirconia Ceramic Ferrule

Name: Customized MU/UPC Single Mode Fiber Optic Attenuator with 1260~1620nm Wavelength and 1~25dB Attenuation Featuring Zirconia Ceramic Ferrule
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: Fixed Fiber Optic Attenuator
Price: 9.80 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	Fixed Fiber Optic Attenuator
MOQ:	1pc
Price:	US$0.8/PCS-US$20/PCS
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Fiber Connector:

MU/UPC

Ferrule Type:

Zirconia Ceramic

Connector Gender:

Fixed Male To Female

Transfer Mode:

Singlemode

Attenuation:

1~25dB

Operating Wavelength(nm):

1260~1620(SM)

Attenuation Accuracy:

1-5dB ±0.5, 6-10dB ±0.7, >10dB ±1.0

Return Loss:

≥50dB

Polarization Dependent Loss:

≤0.2dB

Max Optical Input Power:

200mW

Humidity:

95%RH

Operating Temperature Range:

-40 To 80°C (-40 To 176°F)

Storage Temperature Range:

-40 To 85°C (-40 To 185°F)

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

MU / UPC single mode fiber attenuation

1260nm single mode fiber attenuation

1620nm attenuation in single mode fiber

Product Description

Customized MU/UPC Single Mode Fiber Attenuation 1260~1620nm

Product Overview

Customized MU/UPC 1260~1620nm Singlemode Fixed Fiber Optic Attenuator, Male-Female, 1~25dB Optional

Product Description

As optical passive devices, Gezhi Photonics attenuators are primarily used in fiber optic systems to debug optical power performance, calibrate optical instruments, and attenuate fiber signals to maintain optical power at stable and desired levels within the link without altering the original transmission wave.

Please note: E2000 is an LSH connector with a dust-proof cover.

Product Highlights

Applied for CWDM, DWDM, Test Equipment, CATV Systems, Point to Point Systems, etc.
Precision Polishing for Reduced Back Reflection
High Precision Fiber Optic Ceramic Ferrules
Standard Fixed Attenuation Values of 1dB up to 25dB
1260 to 1620nm Wavelength Singlemode Attenuators
Attenuating Material - Ion Doped Fiber
Snap-in Body for Fast Mating and De-mating

Attenuator Features

Fixed Customized Singlemode Fiber Optic Attenuator with precise attenuation values, low PDL, low insertion loss and fine reflection polishing.

Attenuator Applications

Optical attenuator is widely used in CWDM & DWDM systems, CATV systems, data center networks, test equipment and other high power applications.

Our Manufacturing Facility
