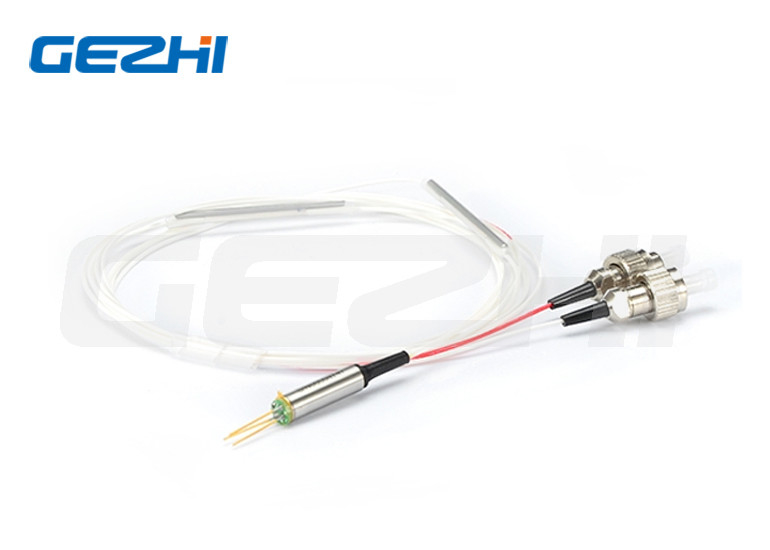

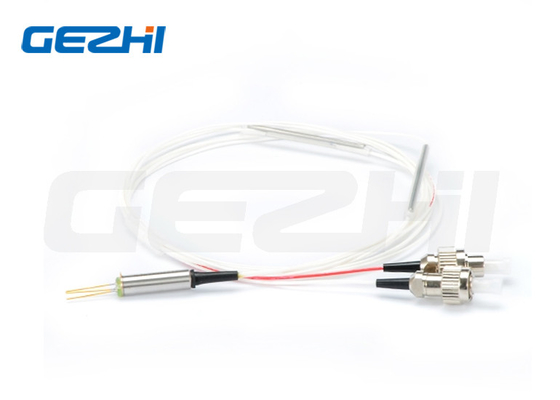

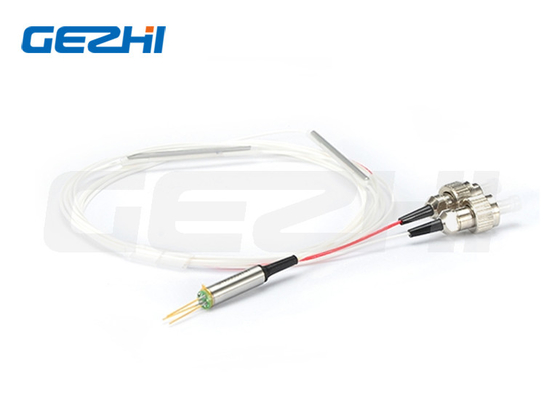

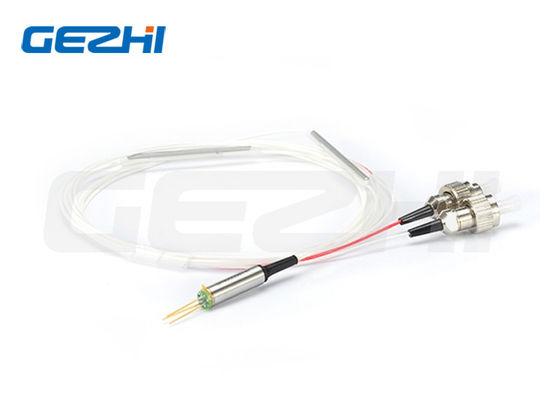

1525-1570nm MEMS Variable Optical Attenuator with FC/UPC Connector and ≥30dB Attenuation

Name: 1525-1570nm MEMS Variable Optical Attenuator with FC/UPC Connector and ≥30dB Attenuation
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: MEMS Variable Optical Attenuator
Price: 50 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	MEMS Variable Optical Attenuator
MOQ:	1pc
Price:	US$50
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

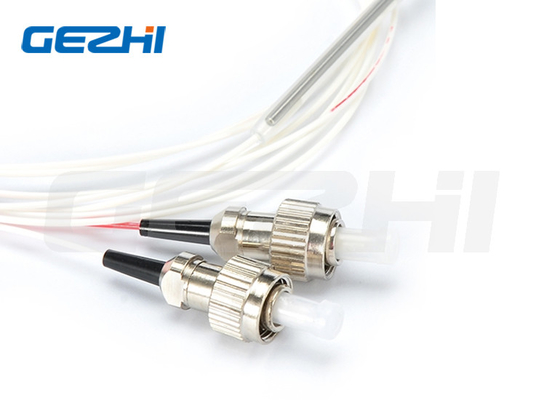

Fiber Connector:

FC/UPC

Ferrule Type:

Zirconia Ceramic

Attenuation Type:

Bright/Dark

Transfer Mode:

Singlemode

Attenuation:

≥30dB

Operating Wavelength(nm):

1525-1570nm/1570-1610nm

Attenuation Accuracy:

±0.5dB

Return Loss:

≥45dB

Polarization Dependent Loss:

≤0.1dB

Max Optical Input Power:

500mW

Driving Voltage:

6.5V

Humidity:

95%RH

Operating Temperature Range:

0 To 70°C (0 To 158°F)

Storage Temperature Range:

-40 To 85°C (-40 To 185°F)

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

1570nm mems variable optical attenuator

FC / UPC mems variable optical attenuator

Product Description

1525-1570nm MEMS Variable Optical Attenuator Single Channel Standard FC/UPC

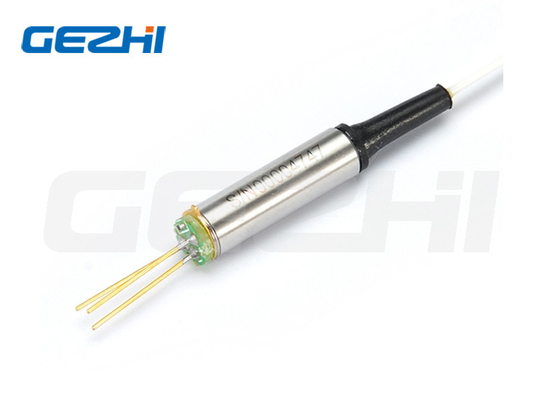

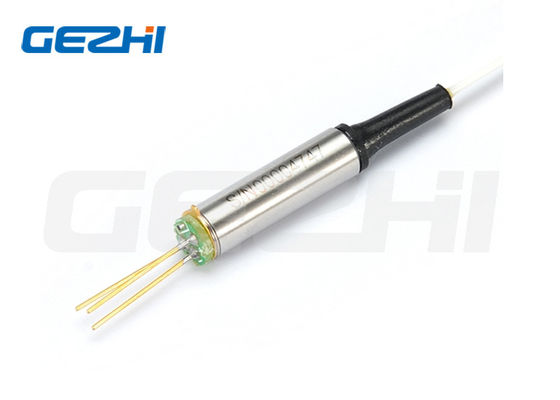

The MEMS Variable Optical Attenuator is based on Micro-Electro-Mechanical System technology. These MM series attenuators enable remote power control in networks using a MEMS chip with a movable silicon mirror. The mirror attenuates laser light power by coupling the input beam onto the output fiber, with applied voltage controlling the mirror tilt angle for precise attenuation.

Product Highlights

Available in various connector types
Standard variable attenuation values from 1dB to 40dB
Attenuating material: ion doped fiber
1525-1570nm/1570-1610nm wavelength singlemode attenuators
Precision polishing for reduced back reflection
High precision fiber optic ceramic ferrules

Key Features

Single-Channel Standard Variable Optical Attenuator MEMS

Precise attenuation values, low PDL, low insertion loss, and fine reflection polishing.

Wide Attenuation Range from 0dB to 40dB
The MEMS attenuators provide accurate attenuation for connected devices.

Various Connectors
The MEMS attenuators have a variety of connectors to suit different needs.

High Quality Collimator
The attenuators have high environment reliability and high response speed.

Advanced MEMS Technology to Balance Signal Strengths

A beam from an input fiber bounces off the MEMS mirror and into an output fiber. By slightly tilting the mirror, the input and output fibers are decoupled and the signal is attenuated.

Applications

The MEMS VOA can be used for equalization in DWDM systems, gain tilt control in EDFAs, and is also applied in test equipment.

Our Factory

Frequently Asked Questions

Q1: Can I have a sample order? What is your MOQ?

A1: Sample orders are welcome to test and check quality. We don't have MOQ requirements - 1 piece samples are available. Mixed samples are also acceptable.

Q2: What's the Lead time?

A2: Normal lead time is about 1 week. For large quantities and special products, please check lead time with our sales representative. We keep stock for some products and can ship within 1-3 days after receiving payment.

Q3: What are the payment terms?

A3: Payment terms: T/T, PayPal, Western Union, cash payment, AliPay, etc.

Q4: What is your warranty time?

A4: 3 years warranty.

Q5: Could I use our own logo, label and package?

A5: Yes, we provide OEM services according to your requirements, including custom product labels, logos, part numbers, serial numbers, and packaging.
