Fiber Optic Accessories
Created with Pixso. 1~30dB FC/UPC/APC Type Variable Fiber Optic Attenuator for 1260~1620nm Wavelength Single Mode Applications
1~30dB FC/UPC/APC Type Variable Fiber Optic Attenuator for 1260~1620nm Wavelength Single Mode Applications
  • name
  • name
  • name
  • name

1~30dB FC/UPC/APC Type Variable Fiber Optic Attenuator for 1260~1620nm Wavelength Single Mode Applications

Brand Name: GEZHI or OEM
Model Number: FC Type Variable Fiber Optic Attenuator
MOQ: 1pc
Price: US$0.8/PCS-US$20/PCS
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Fiber Connector:
FC
Ferrule Type:
Zirconia Ceramic
Connector Gender:
Variable
Transfer Mode:
Singlemode
Attenuation:
1~30dB
Operating Wavelength(nm):
1260~1620(SM)
Attenuation Accuracy:
±0.8dB
Minimize Insertion Loss:
<2.5dB
Polarization Dependent Loss:
≤0.2dB
Max Optical Input Power:
200mW
Humidity:
95%RH
Temperature:
Operating -40 To 80°C (-40 To 176°F) Storage -40 To 85°C (-40 To 185°F)
Packaging Details:
Paper box
Supply Ability:
5000pcs per month
Highlight:

30dB single mode attenuator

,

1620nm single mode attenuator

Product Description
1~30dB Single Mode Attenuator FC/UPC/APC Type 1260 To 1620nm Wavelength
1~30dB FC/UPC/APC Type 1260 to 1620nm Wavelength Singlemode Attenuators Variable Fiber Optic Attenuator
Product Overview
As optical passive devices, Gezhi Photonics Co., Ltd attenuators are primarily used in fiber optic systems to debug optical power performance, calibrate optical instruments, and attenuate fiber signals. These devices ensure optical power remains at a stable and desired level within the link without altering the original transmission wave characteristics.

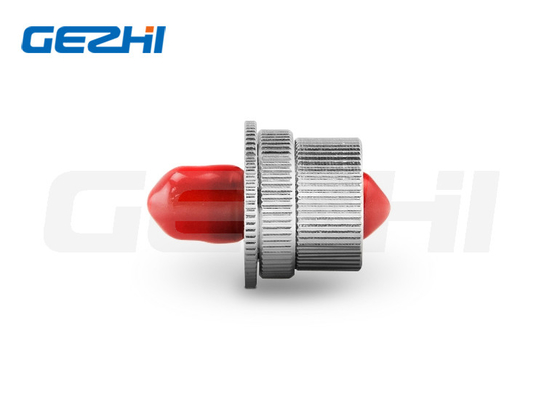

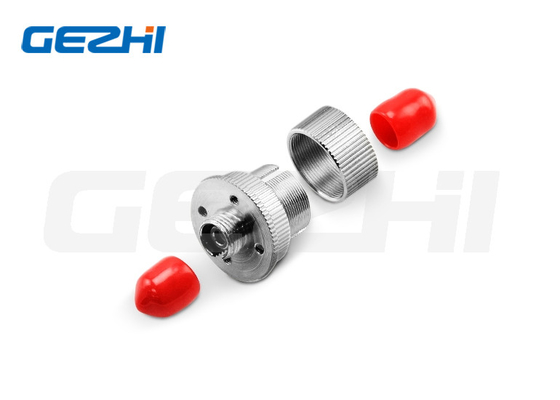

1~30dB FC/UPC/APC Type Variable Fiber Optic Attenuator for 1260~1620nm Wavelength Single Mode Applications 0 1~30dB FC/UPC/APC Type Variable Fiber Optic Attenuator for 1260~1620nm Wavelength Single Mode Applications 1
FC Type Variable Fiber Optic Attenuator Features
  • Low insertion loss for minimal signal degradation
  • Low polarization dependent loss (PDL)
  • Wide attenuation range from 1dB to 30dB
  • High stability and reliability in various operating conditions
  • Compatible with 1260nm to 1620nm wavelength range

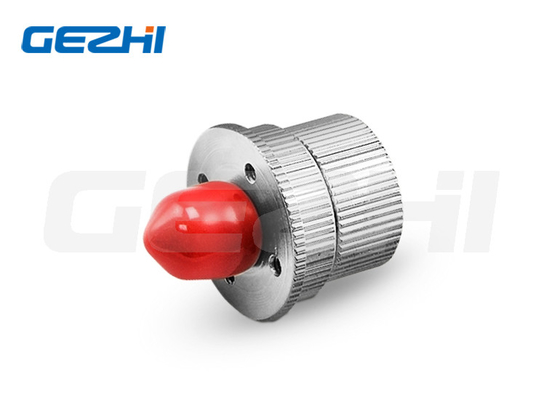

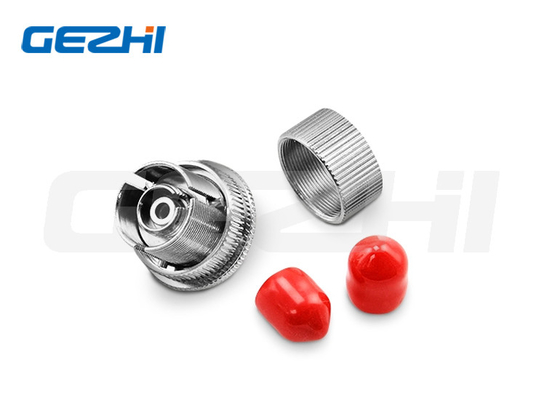

1~30dB FC/UPC/APC Type Variable Fiber Optic Attenuator for 1260~1620nm Wavelength Single Mode Applications 2 1~30dB FC/UPC/APC Type Variable Fiber Optic Attenuator for 1260~1620nm Wavelength Single Mode Applications 3 1~30dB FC/UPC/APC Type Variable Fiber Optic Attenuator for 1260~1620nm Wavelength Single Mode Applications 4 1~30dB FC/UPC/APC Type Variable Fiber Optic Attenuator for 1260~1620nm Wavelength Single Mode Applications 5
Applications
These optical attenuators are designed for use in fiber optic telecommunication systems and optical transmission networks. They are widely applied in FTTH (Fiber to the Home), CATV systems, WAN (Wide Area Networks), fiber optical sensors, metropolitan area networks, and serve as essential test equipment for network maintenance and optimization.
1~30dB FC/UPC/APC Type Variable Fiber Optic Attenuator for 1260~1620nm Wavelength Single Mode Applications 6
