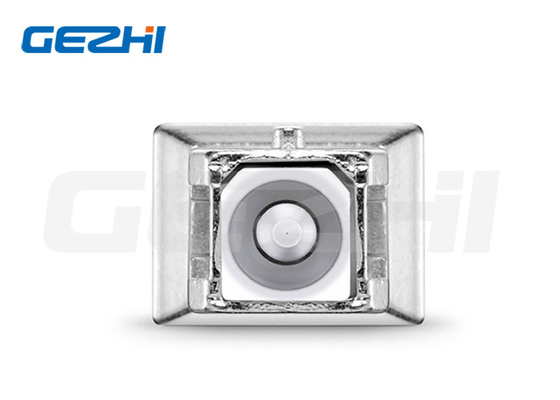

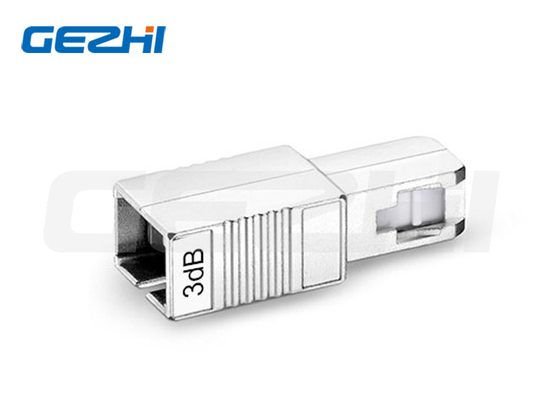

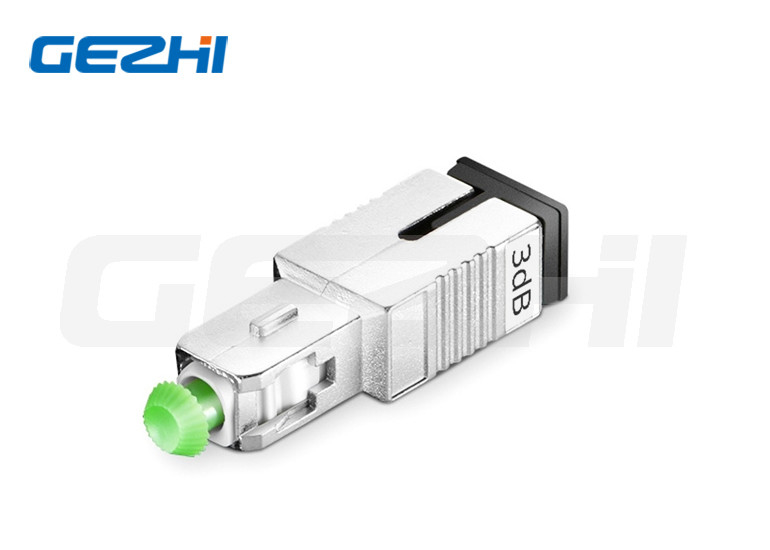

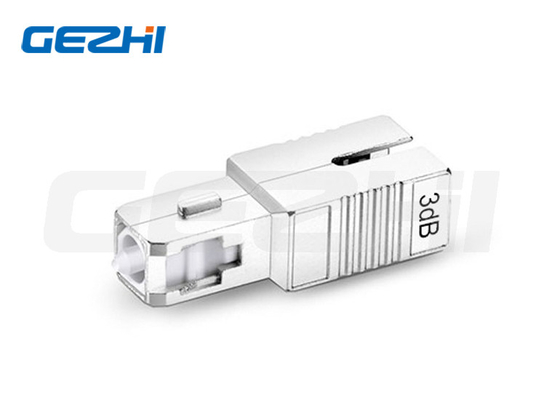

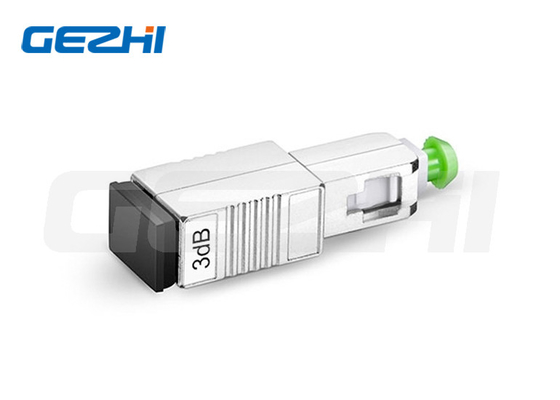

SC/APC Singlemode Fixed Male to Female Fiber Optic Attenuator with 3dB Attenuation for Stable Optical Power

Name: SC/APC Singlemode Fixed Male to Female Fiber Optic Attenuator with 3dB Attenuation for Stable Optical Power
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: Male-Female 3dB Fixed Fiber Optic Attenuator
Price: 9.80 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	Male-Female 3dB Fixed Fiber Optic Attenuator
MOQ:	1pc
Price:	US$0.8/PCS-US$20/PCS
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Fiber Connector:

SC/APC

Ferrule Type:

Zirconia Ceramic

Connector Gender:

Fixed Male To Female

Transfer Mode:

Singlemode

Attenuation:

3dB

Operating Wavelength(nm):

1260~1620(SM)

Attenuation Accuracy:

±0.5dB

Return Loss:

≥60dB

Polarization Dependent Loss:

≤0.2dB

Max Optical Input Power:

200mW

Durability:

500 Times

Humidity:

95%RH

Operating Temperature Range:

-40 To 75°C (-40 To 167°F)

Storage Temperature Range:

-40 To 85°C (-40 To 185°F)

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

SC / APC fiber optic attenuator single mode

3dB fiber optic attenuator single mode

Product Description

SC/APC Fiber Optic Attenuator Single Mode Male-Female 3dB Fixed

Product Overview

3dB SC/APC Male to Female Singlemode Fiber Attenuator, Fixed Type

As optical passive devices, Gezhi Photonics attenuators are primarily used in fiber optic systems to debug optical power performance, calibrate optical instruments, and attenuate fiber signals to maintain optical power at stable and desired levels within the link without altering the original transmission wave.

Key Features

Signal Attenuation for Optical Transmission Security

Fiber optic attenuators reduce optical signal power levels and are often combined with active system components to maintain optimal signal strength in fiber networks.

Guaranteed Long-range Transmission with Precise Attenuation

These attenuators are constructed with metal-ion doped optical fiber, providing stable 3dB attenuation levels to prevent optical overload at the receiver end.
