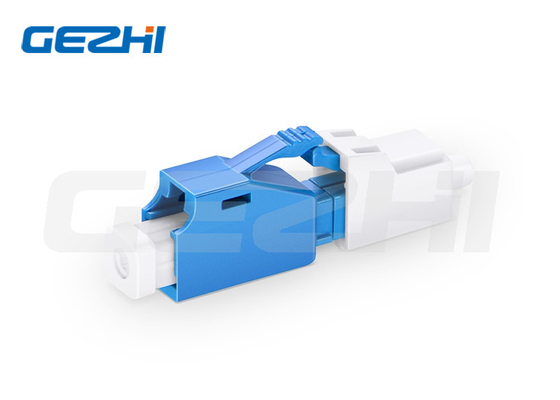

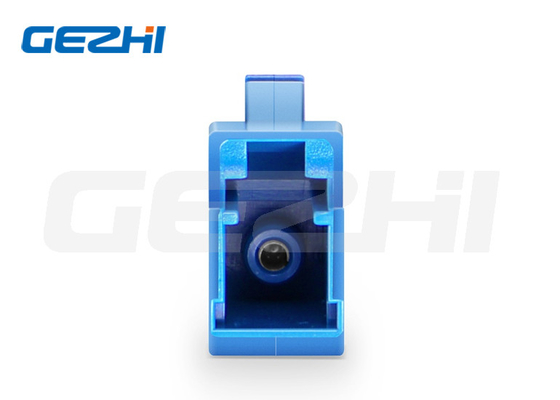

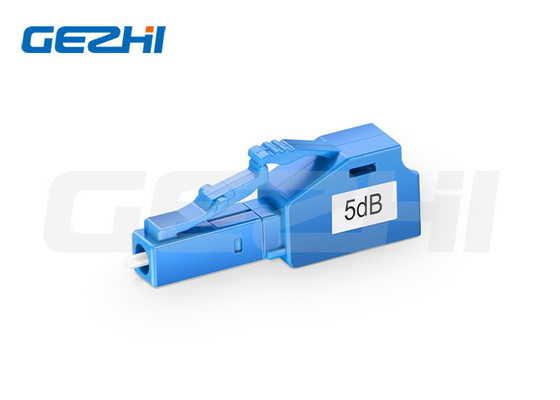

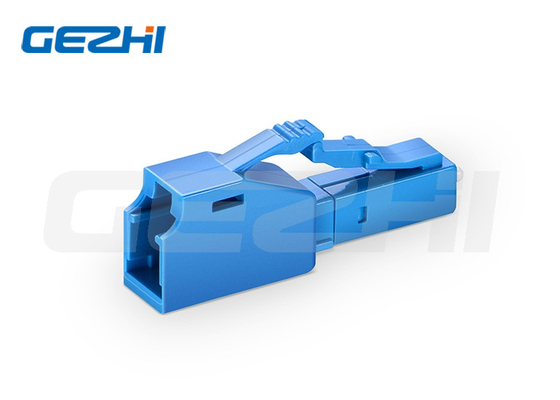

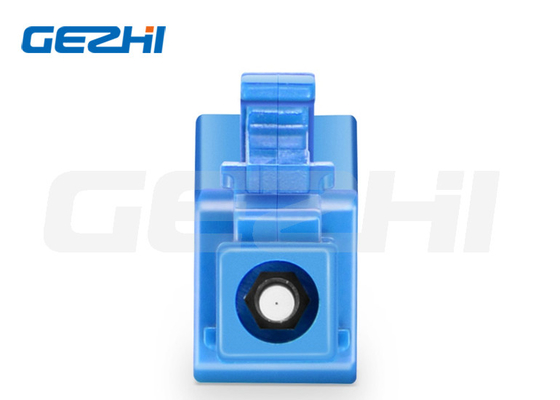

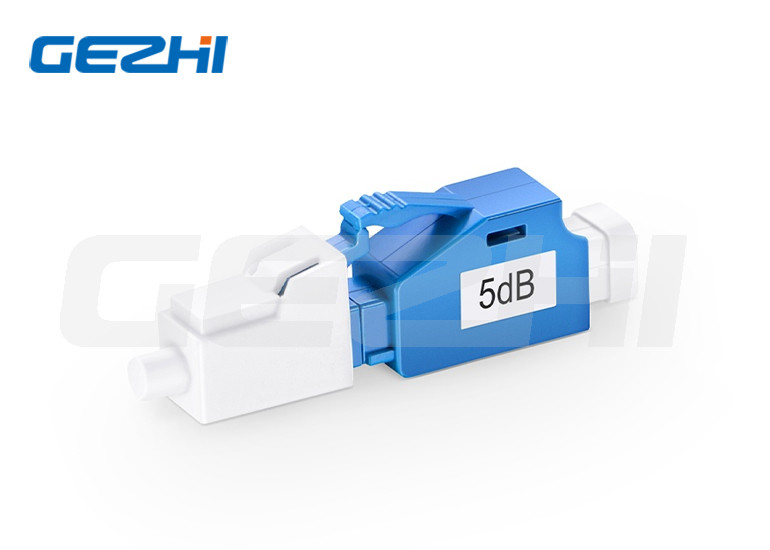

LC/UPC Singlemode 5dB Fixed Fiber Optic Attenuator Male to Female for Stable Signal Transmission

Name: LC/UPC Singlemode 5dB Fixed Fiber Optic Attenuator Male to Female for Stable Signal Transmission
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: 5dB LC/UPC Male to Female Singlemode Fiber Attenuator, Fixed Type
Price: 9.80 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	5dB LC/UPC Male to Female Singlemode Fiber Attenuator, Fixed Type
MOQ:	1pc
Price:	US$0.8/PCS-US$20/PCS
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Fiber Connector:

LC/UPC

Ferrule Type:

Zirconia Ceramic

Connector Gender:

Fixed Male To Female

Transfer Mode:

Singlemode

Attenuation:

5dB

Operating Wavelength(nm):

1260~1620(SM)

Attenuation Accuracy:

±0.5dB

Return Loss:

50dB

Polarization Dependent Loss:

≤0.2dB

Max Optical Input Power:

200mW

Durability:

500 Times

Humidity:

95%RH

Operating Temperature Range:

-40 To 75°C (-40 To 167°F)

Storage Temperature Range:

-40 To 85°C (-40 To 185°F)

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

LC / UPC single mode fiber attenuator

5dB single mode fiber attenuator

Product Description

LC/UPC Singlemode 5dB Fixed Fiber Optic Attenuator, Male-Female

As optical passive devices, Gezhi Photonics attenuators are primarily used in fiber optic systems to debug optical power performance, calibrate optical instruments, and attenuate fiber signals to ensure optical power remains at a stable and desired level in the link without affecting the original transmission wave.

Key Features

Signal Attenuation for Optical Transmission Security

Fiber optic attenuators reduce optical signal power levels and are often combined with active system components to maintain desired signal strength in fiber networks.

Guaranteed Long-range Transmission with Accurate Attenuation

Built with metal-ion doped optical fiber, these attenuators provide stable 5dB attenuation levels to prevent optical overload at the receiver.

Versatile Applications in Fiber Optic Communication Systems

Fiber optic attenuators are commonly used to test power level margins in fiber optic communication systems and properly match transmitter and receiver optical signal levels.

Product Specifications

Fiber Connector	SC/APC	FC/UPC	LC/UPC
Transfer Mode	Singlemode	Singlemode	Singlemode
Attenuation	3dB	2dB	5dB
Operating Wavelength (nm)	1260~1620 (SM)	1260~1620 (SM)	1260~1620 (SM)
Return Loss	≥60dB	≥45dB	≥50dB
Durability	500 times	-----	500 times
