Created with Pixso. LC Female to ST Male Hybrid Fiber Optic Adapter with ≤0.5dB Insertion Loss for OS2 Single Mode Networks
LC Female to ST Male Hybrid Fiber Optic Adapter with ≤0.5dB Insertion Loss for OS2 Single Mode Networks
  • name
  • name
  • name
  • name

LC Female to ST Male Hybrid Fiber Optic Adapter with ≤0.5dB Insertion Loss for OS2 Single Mode Networks

Brand Name: GEZHI or OEM
Model Number: Fiber Optic Adapter/Coupler
MOQ: 1pc
Price: US$0.8/PCS-US$20/PCS
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Connector 1:
LC Female
Connector 2:
ST Male
Body Style:
Simplex
Fiber Mode:
OS2 9/125μm
Insertion Loss:
≤0.5dB
Durability:
1000 Times
Flammability Rate:
UL 94V-0
Working Temperature:
-25~70°C
Packaging Details:
Paper box
Supply Ability:
5000pcs per month
Highlight:

0.5dB single mode fiber optic adapter

,

os2 single mode fiber optic adapter

Product Description

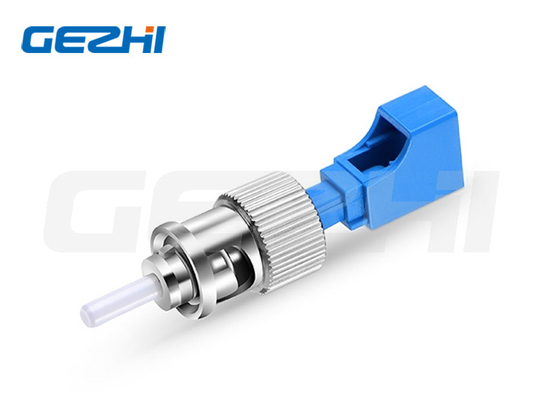

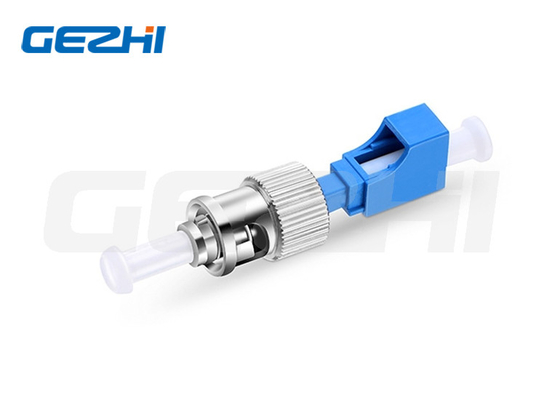

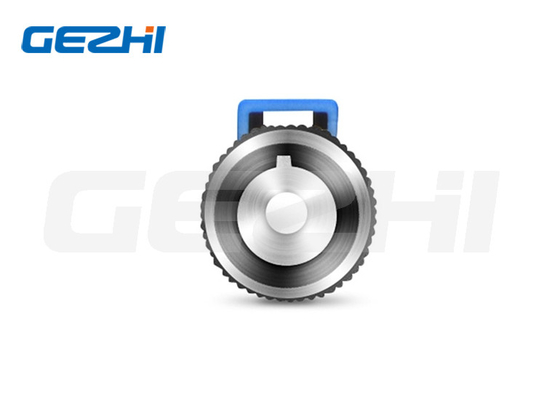

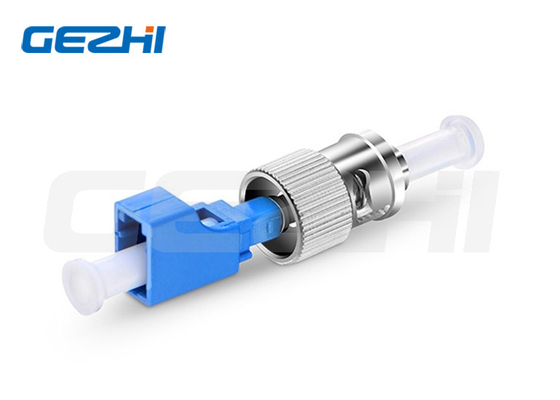

0.5dB Single Mode Fiber Optic Adapter LC/UPC Female to ST/UPC Male Simplex OS2
LC/UPC Female to ST/UPC Male Simplex OS2 Single Mode Fiber Optic Adapter/Coupler without Flange
Product Overview
A fiber optic adapter, also known as a coupler, is a compact device designed to terminate or link fiber optic cables and connectors between two fiber optic lines. The LC-ST Hybrid Fiber Optic Adapter enables precision connection of different connector types, specifically integrating Small Form Factor LC connectors into ST-configured environments. This space-saving design helps network operators reduce costs by eliminating the need for hybrid cable assemblies.
Key Features
Extending Fiber Connection with Adapters
Featuring high-precision components and tool-less design, these adapters enable direct communication between devices over fiber optic lines from a distance.
LC Female to ST Male Hybrid Fiber Optic Adapter with ≤0.5dB Insertion Loss for OS2 Single Mode Networks 0
Product Highlights
  • ≤0.5dB (Typical) Low Insertion Loss
  • Color Coded for Rapid Fiber Management
  • Protective Dust Cap Keeps Adapter's Interior Clean from Dust
  • No Tools Required for Assembly
  • Available in A Variety of Connector Types
LC Female to ST Male Hybrid Fiber Optic Adapter with ≤0.5dB Insertion Loss for OS2 Single Mode Networks 1 LC Female to ST Male Hybrid Fiber Optic Adapter with ≤0.5dB Insertion Loss for OS2 Single Mode Networks 2
Technical Specifications:
• Connector Types: LC/UPC Female to ST/UPC Male
• Fiber Type: Single Mode OS2
• Configuration: Simplex
• Insertion Loss: ≤0.5dB (Typical)
• Flange: Without Flange
