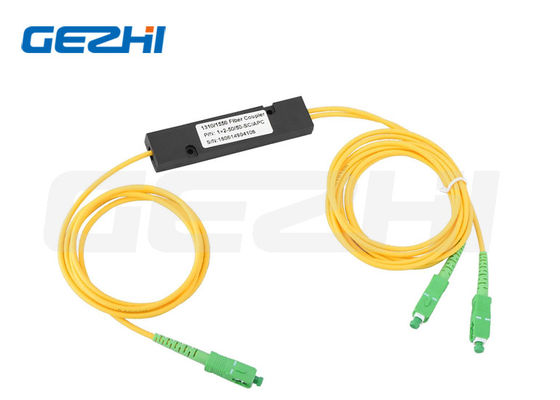

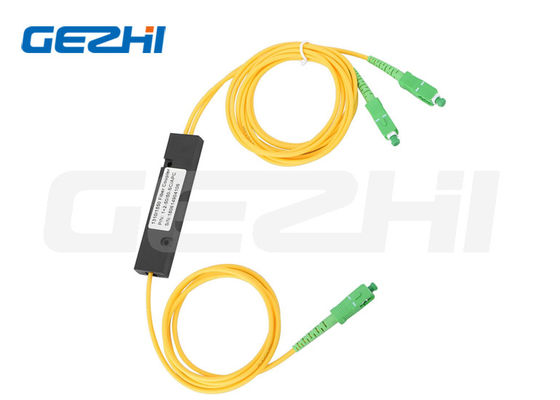

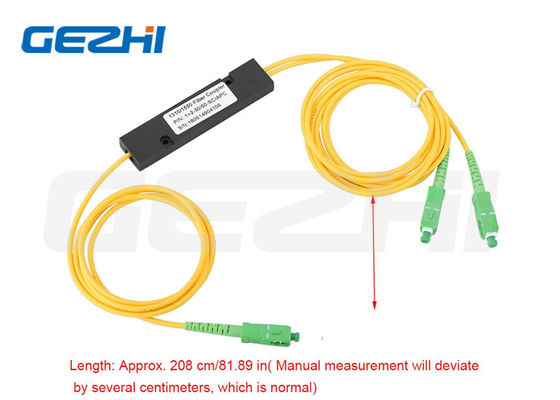

OEM Fiber Optical Splitter with SC/APC Connector 1x2 Split Ratio for Singlemode Fiber PLC Splitter

Name: OEM Fiber Optical Splitter with SC/APC Connector 1x2 Split Ratio for Singlemode Fiber PLC Splitter
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: GZ-1x2-Coupler
Price: 88.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	GZ-1x2-Coupler
MOQ:	1pc
Price:	US$59-US$118
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Connector Type:

SC/APC

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

OEM Fiber Optical Splitter

Singlemode 1x2 PLC Splitter

SC/APC 1x2 PLC Splitter

Product Description

OEM Fiber Optical Splitter, Singlemode SC/APC 1x2 PLC Splitter

Fiber Optical Splitter, SC 1x2 PLC Singlemode Pigtails UPC PLC Splitter Branching Device Applicated Cable Converter

Product Description

PLC (Planar Lightwave Circuit) Splitters are Single Mode Splitters with an even split ratio from one input fiber to multiple output fibers. Available split counts are: 1x4, 1x8, 1x16, and 1x32. PLC Splitters are available with 900µm loose tube singlemode fiber and terminated or unterminated as per your needs. Unconnectorized PLC splitters come with no connectors for easy splicing or connectorization. Connectorized PLC Splitters are available with your choice of Fiber Optic Connectors: LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, and ST/UPC.

Features

The loss is insensitive to light wavelength and digital optical audio adapter cable can meet the transmission needs of different wavelength for fiber pigtails
The signal of optical fiber audio splitter can be distributed uniformly to the user
SC/APC optical splitter is compact structure, small volume, fiber optic cable adapter can be directly installed in the existing various junction box, do not need to leave a large installation space
The single device of PLC splitter has many branch channels, which can reach more than 32 channels
Multi way cost is low, the more roads, the more obvious cost advantage for fiber optical splitter

Applications

Fibre Optical Communication System
FOLAN Fiber Optic LAN
CATV
FTTH
FOS
Measuring Instrument

Compliance

Telcordia GR-1209-CORE
Telcordia GR-1221-CORE
RoHS

Specifications

Parameters	1×2	1×4	1×8	1×16	1×32	1×64
Operating Wavelength (nm)	1260~1650
Fiber Type	SMF-28e or customer specified
Insertion Loss (dB)(S/P Grade)	4.0/3.8	7.3/7.0	10.5/10.2	13.7/13.5	16.9/16.5	21.0/20.5
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5	2.5
Return Loss (dB) (S/P Grade)	50/55	50/55	50/55	50/55	50/55	50/55
Polarization Dependent Loss(dB)	0.2	0.2	0.3	0.3	0.3	0.4
Directivity (dB)	55	55	55	55	55	55
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.5	0.5	0.5
Temperature Stability(-40~85 °C)(dB)	0.5	0.5	0.5	0.5	0.5	0.5
Operating Temperature (°C)	-40~85
Storage Temperature (°C)	-40~85
Module Dimension (mm) (L×W×H)	100×80×10	100×80×10	100×80×10	120×80×18	140×115×18	140×115×18

Frequently Asked Questions

Q: Are you manufacturer?

A: Yes, we are manufacturer in Shenzhen, China

Q: What's your MOQ?

A: MOQ can be 1 pcs.

Q: What's the price?

A: The price is according to your quantity. After you let us know your quantity, we will offer our best price for you. Big Quantity will get very competitive price.

Q: Can you quote FOB price?

A: Yes we can, but due to the size and weight is not big, most are delivery by air, DHL, TNT, UPC, FEDEX, etc. So it is difficult to do FOB price. The best way is let us know your detailed specifications and quantity, we will offer the freight with products price for your reference.
