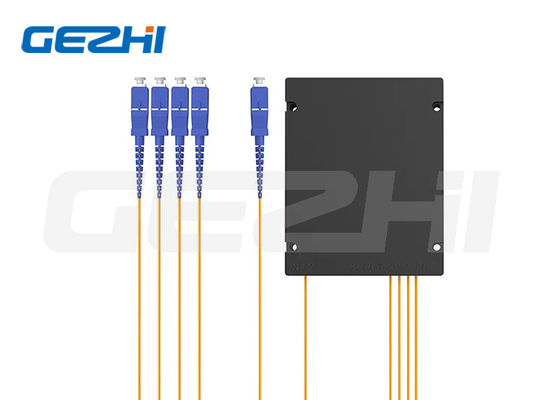

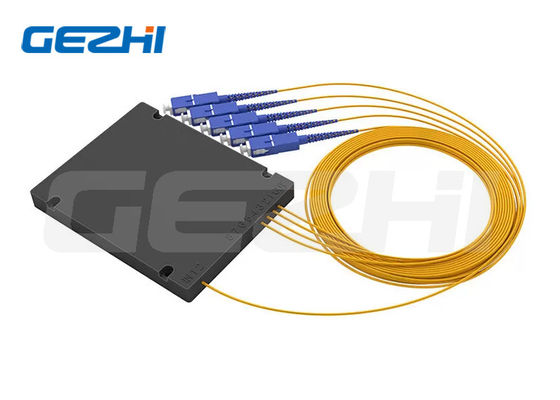

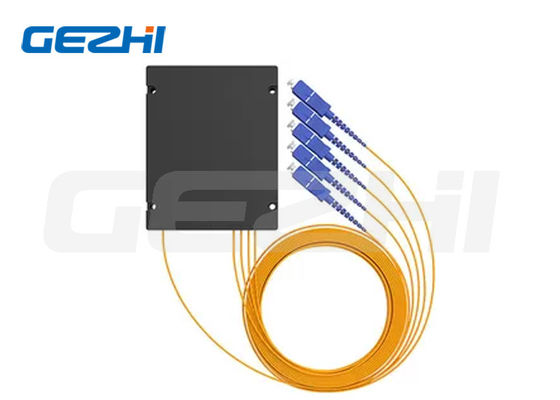

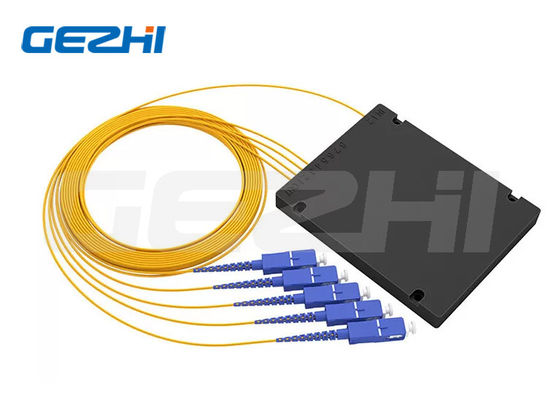

Customized Fiber Optic PLC Splitter with Low Insertion Loss and Wide Operating Wavelength for FTTX Systems

Name: Customized Fiber Optic PLC Splitter with Low Insertion Loss and Wide Operating Wavelength for FTTX Systems
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: GZ-PLC Splitter
Price: 88.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	GZ-PLC Splitter
MOQ:	1pc
Price:	US$59-US$118
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Connector Type:

SC/PC(Can Be FC, LC, E2000, ST)

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

FTTX Systems Fiber Optic Splitter

Customized Fiber PLC Splitter

Product Description

FTTX Systems Fiber Optic Splitter, Customized Fiber PLC Splitter

Digital Splitter For Fiber Optic Cable, Fiber PLC Splitter Customized

Fiber Optic Splitter Description

Planar waveguide light optical distributor (PLC Splitter) is a planar waveguide integrated optical device that preserves and distributes light power across a wide wavelength range of 1260nm to 1650nm. This wavelength range covers the 1310nm, 1490nm, and 1550nm wavelengths used in EPON technology, making it particularly suitable for EPON Ethernet passive optical network access technology FTTP fiber network systems and broadband passive optical distributor (POS) applications.

PLC optical splitters are primarily used for optical signal coupling and distribution in passive optical network (PON) systems, offering advantages including wavelength insensitivity, high stability, and uniform splitting.

Fiber Optic Splitter Applications

FTTX Systems
LAN, WAN and Metro Networks
Analog/Digital Passive Optical Networks CATV Networks
Other applications in fiber optic systems

Fiber Optic Splitter Features

Low insertion loss and low PDL
High channel counts
Exceptional reliability and stability
Wide Operating Wavelength
Wide Operating Temperature
Compact design

Fiber Optic Splitter Specifications

Item	Unit	PLC optical splitter ABS box type
Operating Wavelength	nm	1260~1650
Fiber Type	/	G652D/G657A1/G657A2
Tube Type	um	250um Fiber, 600um or 900um loose tube
Channel Type	/	1x4 1x8 1x16 1x32 1x64 1x128
Insertion Loss	dB	≤7.2 ≤10.5 ≤13.7 ≤17.0 ≤20.6 ≤24.5
Uniformity	dB	≤0.6 ≤0.8 ≤1.2 ≤1.5 ≤2.0 ≤2.5
PDL	dB	≤0.2 ≤0.2 ≤0.3 ≤0.3 ≤0.35 ≤0.35
TDL	dB	≤0.5
Return Loss	dB	≥55
Directionality	dB	≥55
Working Power	mW	≤500
Operating temperature	℃	-40~+85
Storage temperature	℃	-40~+85
Package size	mm	100x80x10 \| 120x80x18 \| 140x115x18

* without connector

Drawing

The PLC optical splitter ABS box type is available in a variety of split modes and package types, and can be customized according to customer requirements.

Packaging

Products are packaged in OPP bags with carton boxes for external protection to ensure goods are not damaged during delivery.
