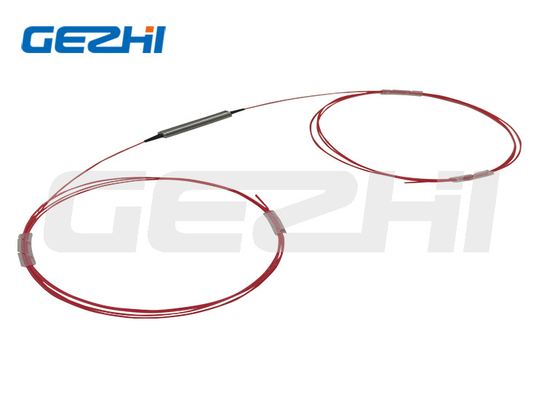

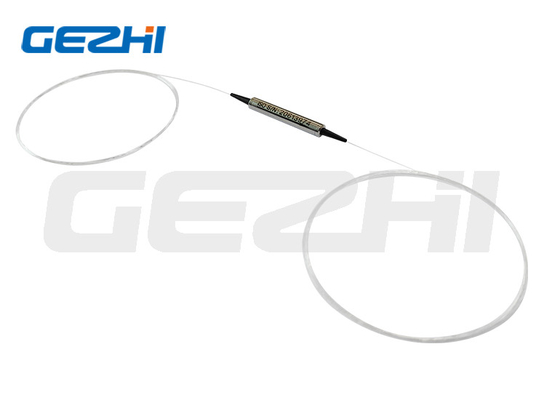

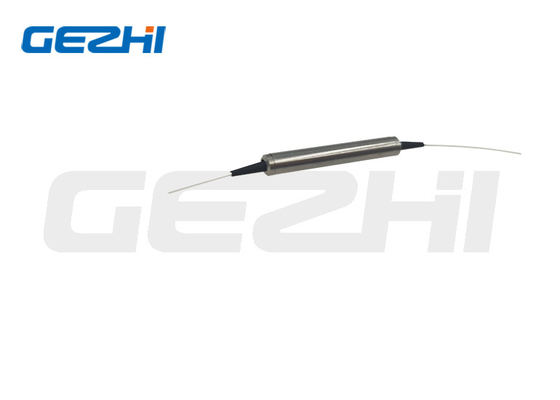

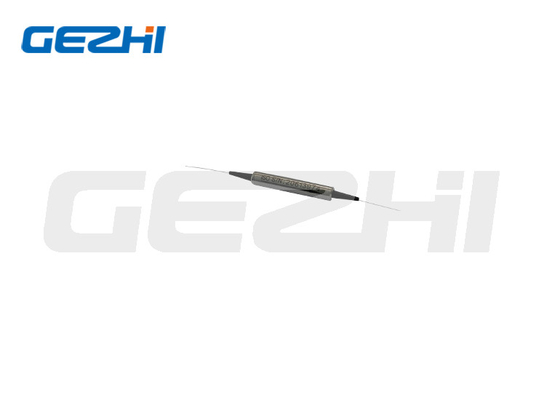

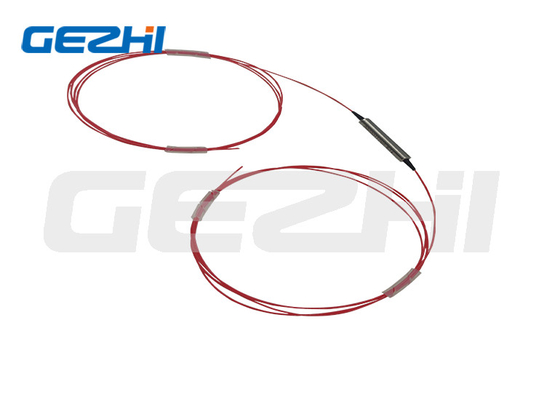

3 Port 1310 / 1550nm Low Insertion Loss Optical Circulator Optical Device Communication Systems

Brand Name:	Gezhi or OEM
Model Number:	1310-1550-3-AA
MOQ:	1 pieces
Price:	US$59-US$118
Delivery Time:	7 Days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union,

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Network:

TCP, Ip, POE, GPRS, Wifi

Channel Min Isolation(dB):

>40

Product Name:

3 Ports Optical Circulator

Return Loss (dB):

>50

Storage Temperature (°C):

-40 ~ +85

Operating Temperature (°C):

0 ~ +70

Model:

3 Port Optical Circulator AA

Application:

CATV System

Packaging Details:

inner box,Carton

Supply Ability:

1000 Piece/Pieces per Day

Highlight:

Optical Device optical circulator

Low Insertion Loss Optical Circulator

1310 / 1550nm optical circulator

Product Description

Product production

3 port 1310 or 1550nm insertion loss optical circulator optical device communication systems

GEZHI Photonics 3port Optical Circulator is widely used in advanced communication systems and fiber-optical sensor systems. Circulator used to drop an optical channel from a DWDM system using a Fiber Bragg Grating.Circulator can be used to send optical signals through a single fiber in two directions.

3 Port 1310 / 1550nm Low Insertion Loss Optical Circulator Optical Device Communication Systems

Applications

2.reflected from the FBG then reenters the Circulator in Port 2 and is routed accordingly to Port 3

3.The remaining signals pass through the FBG and exit on the top fiber.

1.coupled into Port 1 of the device with a FBG device connected to Port 2

Technical Specification

Parameter		P Grade
Configuration		Port 1 to Port 2 to Port 3
Operation Wavelength (nm)		1310±30 or 1550±30 or 1585±30
Isolation (dB)	Typical	0.6
	Maximum	0.8
Typical Isolation (dB)		≥50
Minimum Isolation (dB)		≥40
Cross Talk (dB)		≥50
Polarization Dependent Loss (dB)		<0.15
Polarization Mode Dispersion		<0.1
Return Loss(dB)		≥50
Power Handling (mW)		500
Opterating Temperature (℃)		-10~+75
Package dimension (mm)		Φ5.5xL50 or Φ5.5xL63

Ordering Information PICIR-X-XX-XX-XX-XX-XX

PICIR

Wavelength

Package

Fiber Diameter

Fiber Length

Connector

3=3Port

4=4Port

S=Specity

13=1310nm

55=1550nm

58=1580nm

C+L=C=L band

S=Specify

S1=5.5x50mm

S2=5.5x68mm

A9=90x20x10mm

S=Specify

25=250um

09=900um

20=2.0mm

30=3.0mm

S=Specify

05=0.5m

10=1.0m

15=1.5m

S=Specify

FP=FC/PC

FA=FC/APC

SP=SC/PC

SA=SC/APC

LP=LC/PC

LA=LC/APC

S=Specify

Q1:Can I have a sample order? What is your MOQ?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.

Q2: What's the Lead time?

A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.

Q3: What are the payment terms?

A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.

Q4: What is your warranty time?
A4: 3 years' warranty.

Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
