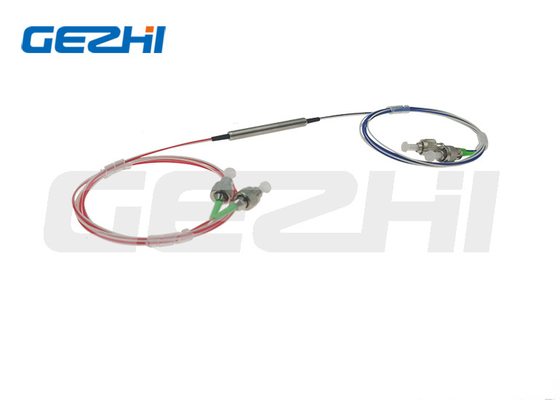

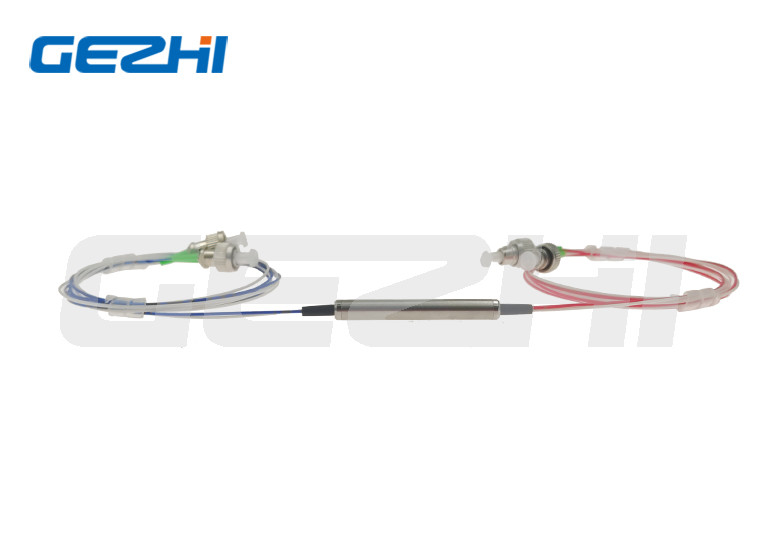

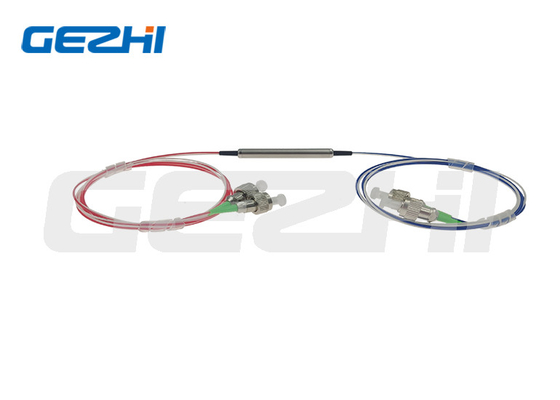

4 Ports Fibers 1310nm Optical Circulator 1520 - 1620nm Polarization Insensitive

4 Ports Fibers 1310nm Optical Circulator 1520 - 1620nm Polarization Insensitive
4 Ports Fibers 1310nm Optical Circulator 1520 - 1620nm Polarization Insensitive 4 Ports Fibers 1310nm Optical Circulator 1520 - 1620nm Polarization Insensitive 4 Ports Fibers 1310nm Optical Circulator 1520 - 1620nm Polarization Insensitive

Large Image :  4 Ports Fibers 1310nm Optical Circulator 1520 - 1620nm Polarization Insensitive

Product Details:
Place of Origin: China
Brand Name: Gezhi or OEM
Certification: CE RoHS,ISO9001
Model Number: 10GBASE-ZR/ZW
Payment & Shipping Terms:
Minimum Order Quantity: 1 pieces
Price: USD >= 1 pieces $46
Packaging Details: inner box,Carton
Delivery Time: 7 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 Piece/Pieces per Day
Contact Now
Detailed Product Description
Polarization Mode Dispersion: ≤0.1 Operating Temperature: 0 ~+70
Storage: -40 ~+85 PMD: ≤0.1mW
Directivity: ≥50 Package Dimension: 5.5xL50 Or 5.5xL63
High Light:

1520 - 1620nm Optical Circulator

,

Polarization Insensitive Optical Circulator

,

4 Ports Optical Circulator

Product description



                                 4 ports Fibers 1310nm Optical Circulator 1520~1620nm Polarization Insensitive Optical Circulator



Feature



High isolation &High Reture Loss
Low insertion loss & PDL
optical Path Epoxy Free
High Stability and reliabilty
Epoxy-free on Optical Path
Technical Specification



Parameter
3 Port
4 Port
Operating wavelength (nm)
1310, 1480,1550, 1585 (+/-30)
C+L
(1520~1620)
1625
(+/-20nm)
1310, 1480,1550,1585,
(+/-30)
C+L
(1520~1620)
Isolation (λc,23℃ all sop) (dB)
≥40
≥40
≥40
≥40
≥40
Isolation (Over all λ, T, sop) (dB)
≥35
≥30
≥30
≥35
≥30
Insertion Loss (λc,23℃ all sop) (dB)
Grade P
≤0.8
≤1.1
≤1.1
≤0.8
≤1.2
Grade A
≤1.0
≤1.2
≤1.2
≤1.0
≤1.3
PDL (dB)
≤0.15
≤0.20
Return loss (dB)
≥50
PMD (ps)
≤0.1
Directivity
≥50
Power handling (mW)
≤300
Fiber Type
SMF-28e
Operating temperature (℃)
0 ~ +70
Storage temperature (℃)
-40 ~ +85
Package Dimensions (mm)
For bare fiber or 900um loose tube
φ5.5×L38(P1)
φ5.5×L50(P2)
φ5.5×L68(P5)
φ5.5×L64(P8)
For 2mm,3mm cable
L90XW20XH9.5(P9)
L80xW12xH10(P7)





Application Diagram
4 Ports Fibers 1310nm Optical Circulator 1520 - 1620nm Polarization Insensitive 0
4 Ports Fibers 1310nm Optical Circulator 1520 - 1620nm Polarization Insensitive 1
SIMILAR PRODUCTS
4 Ports Fibers 1310nm Optical Circulator 1520 - 1620nm Polarization Insensitive 2
4 Ports Fibers 1310nm Optical Circulator 1520 - 1620nm Polarization Insensitive 3
4 Ports Fibers 1310nm Optical Circulator 1520 - 1620nm Polarization Insensitive 4
FTTH OM3 12 Cores Multimode MPO Optical Fiber Patch Cord
10Gbps CWDM SFP+
80km distance
CCWDM Module (mini Size CWDM)





FAQ
Q1:Can I have a sample order? What is your MOQ?
A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, Alibaba etc.
Q4: What is your warranty time
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
