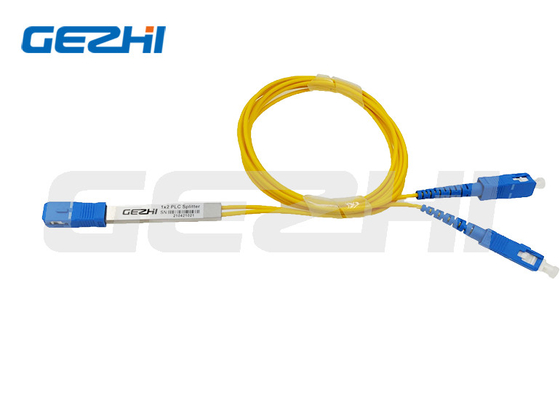

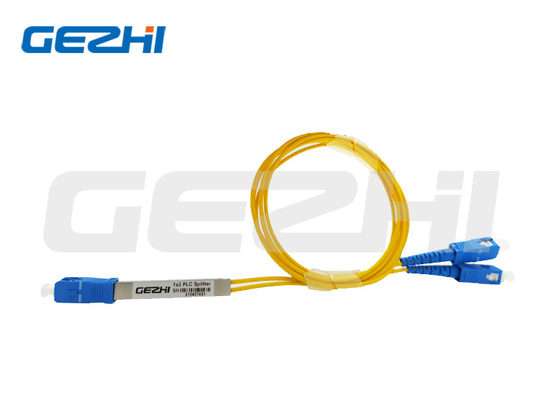

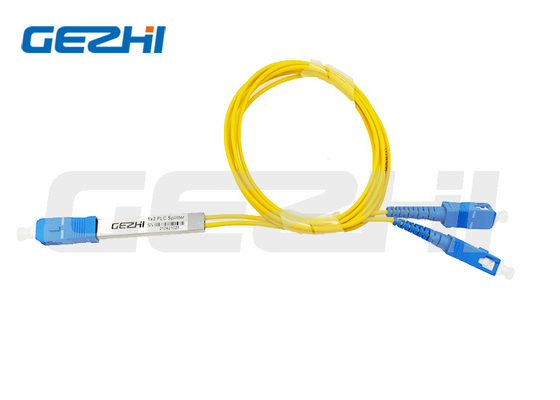

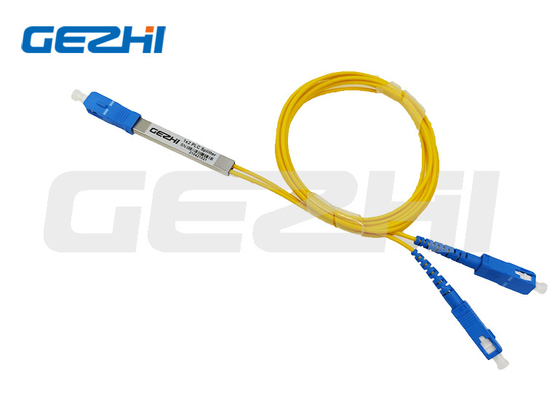

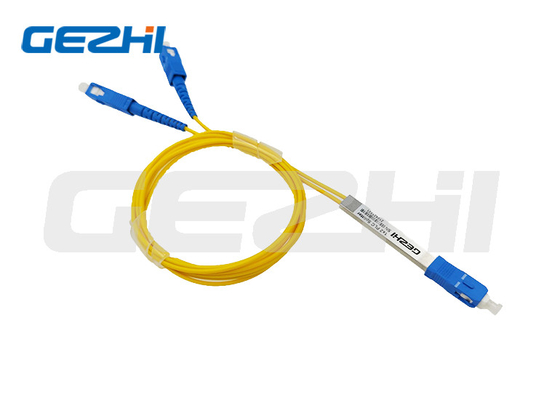

1*2 Steel Tube Type Fiber Optic PLC Splitter For Optical Signal Distribution

1*2 Steel Tube Type Fiber Optic PLC Splitter For Optical Signal Distribution
1*2 Steel Tube Type Fiber Optic PLC Splitter For Optical Signal Distribution 1*2 Steel Tube Type Fiber Optic PLC Splitter For Optical Signal Distribution 1*2 Steel Tube Type Fiber Optic PLC Splitter For Optical Signal Distribution 1*2 Steel Tube Type Fiber Optic PLC Splitter For Optical Signal Distribution 1*2 Steel Tube Type Fiber Optic PLC Splitter For Optical Signal Distribution

Large Image :  1*2 Steel Tube Type Fiber Optic PLC Splitter For Optical Signal Distribution

Product Details:
Place of Origin: China
Brand Name: Gezhi or OEM
Certification: CE RoHS,ISO9001
Model Number: 1*2 Steel Tube type PLC Splitter
Payment & Shipping Terms:
Minimum Order Quantity: 1 pieces
Price: USD >= 1 pieces $5.6
Packaging Details: inner box,Carton
Delivery Time: 7 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 Piece/Pieces per Day
Detailed Product Description
Package: Steel Tube Application: FTTH FTTB FTTX Network
Fiber Connector: LC/UPC, LC/APC, SC/UPC Etc. Control Type: G652A1
Port: 1x2 Wavelength: 1260-1650nm
Warranty Time: 3 Years
High Light:

Optical Signal Distribution PLC splitter

,

Steel Tube 1*2 PLC splitter

,

1*2 Fiber Optic PLC Splitter

Product description

                                 1*2 Steel Tube type fiber optic PLC splitter for Optical Signal Distribution

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. Gezhi provides whole series of 1xN and 2xN splitter products that are tailored for specific applications.



1*2 Steel Tube Type Fiber Optic PLC Splitter For Optical Signal Distribution 0

1*2 Steel Tube Type Fiber Optic PLC Splitter For Optical Signal Distribution 1

1*2 Steel Tube Type Fiber Optic PLC Splitter For Optical Signal Distribution 2

1*2 Steel Tube Type Fiber Optic PLC Splitter For Optical Signal Distribution 3

Feature

Low Insertion loss

Low PDL Compact Design

Good channel-to-channel uniformity

Wide Operating Wavelength: From 1260nm to 1650nm

Wide Operating Temperature: From -40℃ to 85℃

High Reliability and Stability

Application

Optical Signal Distribution
Data Communications
Lan and CATV System
FTTX Deployment
Passive Optical Networks (PON)
Measuring System and Laser System





PRODUCT SPECIFICATIONS
Parameters
1×2
1×4
1×8
1×16
1×32
1×64
Operating Wavelength (nm)
1260~1650
Fiber Type
G657 or customized
Insertion Loss (dB)
≤4.1
≤7.4
≤10.5
≤13.8
≤17.1
≤20.4
Loss Uniformity (dB)
≤0.8
≤0.8
≤0.8
≤1.0
≤1.5
≤2.0
Return Loss (dB)
≥50
≥50
≥50
≥50
≥50
≥50
Polarization Dependent Loss(dB)
0.2
0.2
0.3
0.3
0.3
0.4
Directivity (dB)
≥55
≥55
≥55
≥55
≥55
≥55
Temperature Stability (-40~85 ℃)(dB)
0.5
0.5
0.5
0.5
0.5
0.5
Operating Temperature (℃)
-40~85
Storage Temperature (℃)
-40~85
Typies
1*2,1*4,1*8,1*16,1*32,1*64(with/without connectors)
2*2,2*4,2*8,2*16,2*32,2*64(with/without connectors)
Note:
1. The insertion loss is at least 0.2dB less without connector.
2. The insertion loss for 2×N PLC would increase less than 0.3dB.
3. Insertion loss varies with different connectors:UPC ≥50 dB, APC ≥55 dB



Test Enviroment
1*2 Steel Tube Type Fiber Optic PLC Splitter For Optical Signal Distribution 4
1*2 Steel Tube Type Fiber Optic PLC Splitter For Optical Signal Distribution 5
1*2 Steel Tube Type Fiber Optic PLC Splitter For Optical Signal Distribution 6
1*2 Steel Tube Type Fiber Optic PLC Splitter For Optical Signal Distribution 7
NO-dust workshop
High Temp. Ageing & High-Low Temperature cycling
Relay Reliable Testing
100% Testing Before Shipment



FAQ
Q1:Can I have a sample order? What is your MOQ for 1*2 fiber optic PLC Splitter?
A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time for 1*2 fiber optic PLC Splitter?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, Alibaba etc.
Q4: What is your warranty time for 1*2 fiber optic PLC Splitter?
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
