3CH CWDM Mux Module ABS Box With Customized Wavelength And Connector

3CH CWDM Mux Module ABS Box With Customized Wavelength And Connector
3CH CWDM Mux Module ABS Box With Customized Wavelength And Connector 3CH CWDM Mux Module ABS Box With Customized Wavelength And Connector 3CH CWDM Mux Module ABS Box With Customized Wavelength And Connector 3CH CWDM Mux Module ABS Box With Customized Wavelength And Connector 3CH CWDM Mux Module ABS Box With Customized Wavelength And Connector

Large Image :  3CH CWDM Mux Module ABS Box With Customized Wavelength And Connector

Product Details:
Place of Origin: China
Brand Name: Gezhi or OEM
Certification: CE RoHS,ISO9001
Model Number: 3CH CWDM Mux Module
Payment & Shipping Terms:
Minimum Order Quantity: 1 pieces
Price: USD >= 1 pieces $138
Packaging Details: inner box,Carton
Delivery Time: 7 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 Piece/Pieces per Day
Detailed Product Description
Application: Data Center Fiber Connector: LC/UPC, FC/APC, SC/APC Etc.
Center Wavelength: 1270~1610nm Channel Spacing: 20nm
Network: TCP, Ip, POE, GPRS, Wifi Warranty Time: 3 Years
Use: WDM System
High Light:

3CH CWDM Mux Module

,

customized wavelength CWDM Mux Module

,

ABS Box CWDM Mux Module

Product description

                          3CH CWDM Mux Module ABS Box with customized wavelength and connector

CWDM Mux/Demux (optical multiplexer/demultiplexer) Module are considered as a cheaper and simpler alternative to DWDM systems for metro access network applications. Since CWDM Mux/Demux systems have wide channel spacing (20 nm), they do not require precise wavelength control for transmitter lasers. Thus, cost-effective non-cooled lasers as well as lower-cost passive components may be used for CWDM Mux or Demux systems. GEZHI Photonics supplies a variety of WDM devices and are promoting higher speed and more reliable optical network.

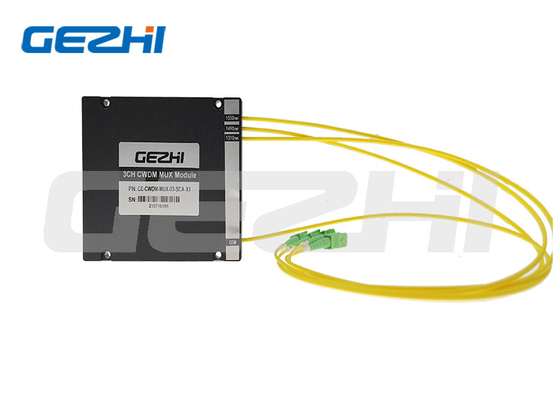

3CH CWDM Mux Module ABS Box With Customized Wavelength And Connector 0

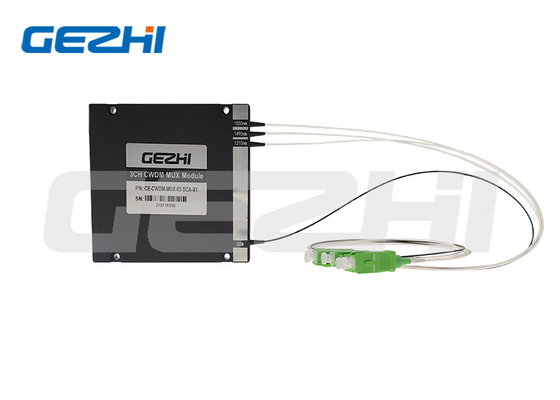

3CH CWDM Mux Module ABS Box With Customized Wavelength And Connector 1

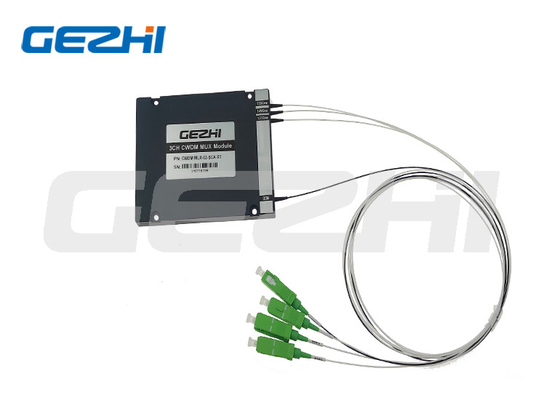

3CH CWDM Mux Module ABS Box With Customized Wavelength And Connector 2

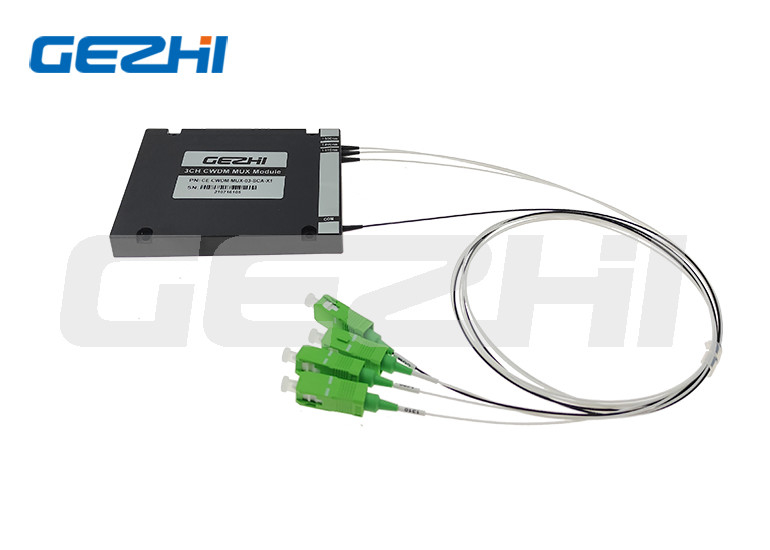

3CH CWDM Mux Module ABS Box With Customized Wavelength And Connector 3

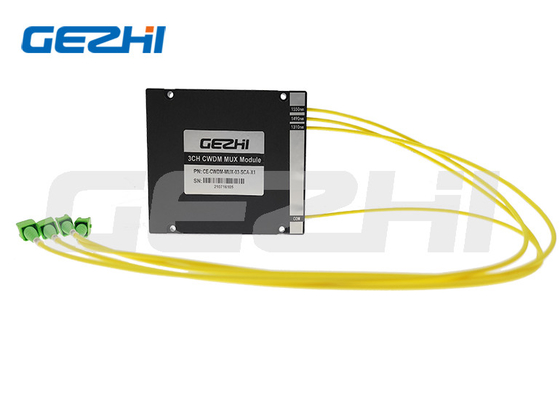

3CH CWDM Mux Module ABS Box With Customized Wavelength And Connector 4

Feature

Low Insertion Loss

High Isolation
High Stability & Reliability
Industrial Operating Temperature
(-40~+80℃ available)
Customized Package type
Stainless Steel tube, ABS Box, ABS Plug-in Module, LGX Chassis, Rackmount

PRODUCT SPECIFICATIONS
Parameter
Unit
CWDM Mux Demux
Channel Spacing
nm
20nm
Center Wavelength
nm
1270~1610 or 1271~1611
Channel Passband
nm
±6.5
Channel Number
/
4CH
8CH
16CH
Insertion Loss
dB
<1.5
<2.5
<5.5 or <3.5(with skip)
Isolation @Adjacent Channel
dB
>30
Isolation @Non-adjacent Channel
dB
>40
Isolation @Express Port
dB
>15
Polarization Dependent Loss
dB
<0.2
Polarization Mode Dispersion
dB
<0.1
Directivity
dB
>50
Return Loss
dB
UPC >45 APC>50
Power Handling
mW
<500 (High Power type available)
Fiber Type
/
SMF-28e (Polarization Maintaining Type available)
Operating Temperature
-20~+75 (-40~+85 available)
Storage Temperature
-40~+85
Package Type
mm
ABS Box, ABS Plug-in Module, LGX Chassis, Rackmount



High Quality & Stability Material
3CH CWDM Mux Module ABS Box With Customized Wavelength And Connector 5

Use Import Filter with High Reliable & Stable quality


3CH CWDM Mux Module ABS Box With Customized Wavelength And Connector 6

Use Original EMI OPTOCAST 3410-VM Glue


3CH CWDM Mux Module ABS Box With Customized Wavelength And Connector 7

Use High Quality G-Lens and Collimator

Product packaging
3CH CWDM Mux Module ABS Box With Customized Wavelength And Connector 8
3CH CWDM Mux Module ABS Box With Customized Wavelength And Connector 9
3CH CWDM Mux Module ABS Box With Customized Wavelength And Connector 10
3CH CWDM Mux Module ABS Box With Customized Wavelength And Connector 11
Finished Item
Inner Package
Inner Box
Carton



Test Enviroment
3CH CWDM Mux Module ABS Box With Customized Wavelength And Connector 12
3CH CWDM Mux Module ABS Box With Customized Wavelength And Connector 13
3CH CWDM Mux Module ABS Box With Customized Wavelength And Connector 14
3CH CWDM Mux Module ABS Box With Customized Wavelength And Connector 15
NO-dust workshop
High Temp. Ageing & High-Low Temperature cycling
100% Testing Before Shipment
Optical Spectrum Analysis



SIMILAR PRODUCTS
3CH CWDM Mux Module ABS Box With Customized Wavelength And Connector 16
3CH CWDM Mux Module ABS Box With Customized Wavelength And Connector 17
3CH CWDM Mux Module ABS Box With Customized Wavelength And Connector 18



FAQ
Q1:Can I have a sample order? What is your MOQ?
A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, Alibaba etc.
Q4: What is your warranty time
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
