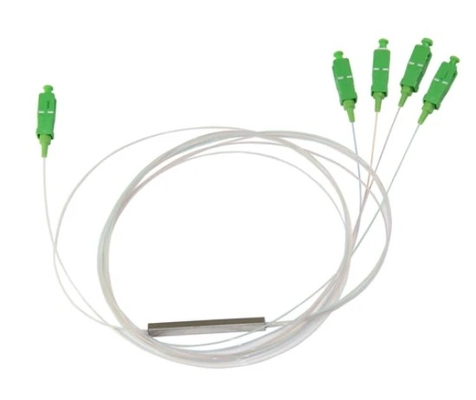

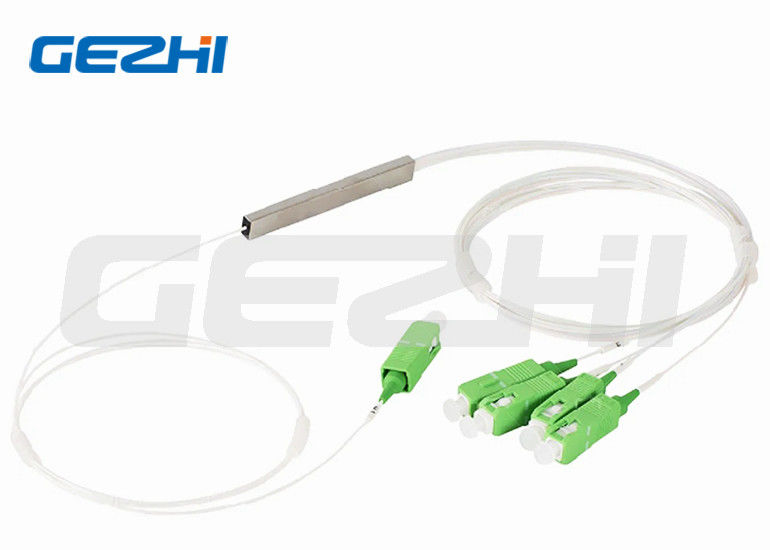

1x4 Single Mode Optical Fiber PLC Splitter With Fan Out & SC/APC Connectors

Name: 1x4 Single Mode Optical Fiber PLC Splitter With Fan Out & SC/APC Connectors
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: Gezhi-1x4 PLC
Price: 69.00 USD
Availability: InStock

Brand Name:	Gezhi or OEM
Model Number:	Gezhi-1x4 PLC
MOQ:	1 pieces
Price:	Nigotiate
Delivery Time:	7 Days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Operating Window::

1260~1600nm

Polarization Stability (dB):

0.50dB

Port Configuration::

1x4, 1x8, 1x16, 1x32

Back Reflection (dB)::

_ -55 UPC „_ -65 APC

Operating Temperature (†C):

-20~+70

Storage Temperature (†C)::

-40~+85

Packaging Details:

inner box,Carton

Supply Ability:

1000 Piece/Pieces per Day

Highlight:

SC/APC Connectors PLC Splitter

Fan Out PLC Splitter

1x4 PLC Splitter

Product Description

1x4 Single Mode PLC Splitter Product description:

1x4 Single Mode PLC Splitter with Fan Out & SC/APC Connectors optical fiber plc splitter

1x4 Single Mode PLC Splitter (Planar Lightwave Circuit Splitter) with Fan Out & SC/APC Connectors

PLC stands for Planar Lightwave Circuit. PLC splitters are used to distribute or combine optical signals. It is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability.

PLC Splitters provide a cost effective and space saving product suitable to the ever changing networking requirements. With it's compact size, these splitters can be utilized in in-ground and aerial pedestals as well as rack mount systems.

1x4 Single Mode PLC Splitter Feature:

Singlemode PLC Splitters in a variety of package types and configurations
Optical performance 100% factory tested
UPC, and APC polish types available for connectorized products
Low Insertion Loss, Back Reflection and PDL
Telcordia GR-CORE 1221 certified

1x4 Single Mode PLC Splitter Application:

LAN, WAN & Metro Networks
Telecommunication Networks
Passive Optical Networks
FTT(X) Systems
CATV
Value Added Module

1x4 Single Mode PLC Splitter Specification:

Operating Window: 1260~1600nm
Polarization Stability (dB): „_ 0.50dB
Port Configuration: 1x4, 1x8, 1x16, 1x32
Back Reflection (dB): „_ -55 UPC „_ -65 APC
Operating Temperature (†C): -20~+70
Storage Temperature (†C): -40~+85
Package size: 8 x 8.1 x 5.2 mm

Configuration	Insertion Loss (dB)	Uniformity (dB)
1x4	7.0	0.8
1x8	11.5	1.0
1x16	14.5	1.5
1x32	17.5	2.0

FAQ

Q1:Can I have a sample order? What is your MOQ?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.

Q2: What's the Lead time?

A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.

Q3: What are the payment terms?

A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.

Q4: What is your warranty time
A4: 3 years' warranty.

Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
